Name: 24-port Gigabit PoE+ switch with 2 uplink ports and 2 SFP slots 300W - switch - 1 Gbps
Brand: cudy
SKU: 3798954

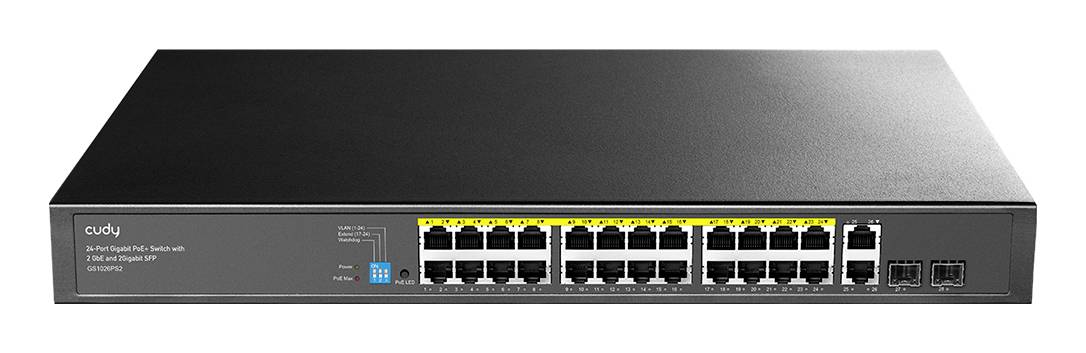

Front view of a Cudy network switch with multiple Ethernet ports and status LEDs on a rackmount-style metal case.

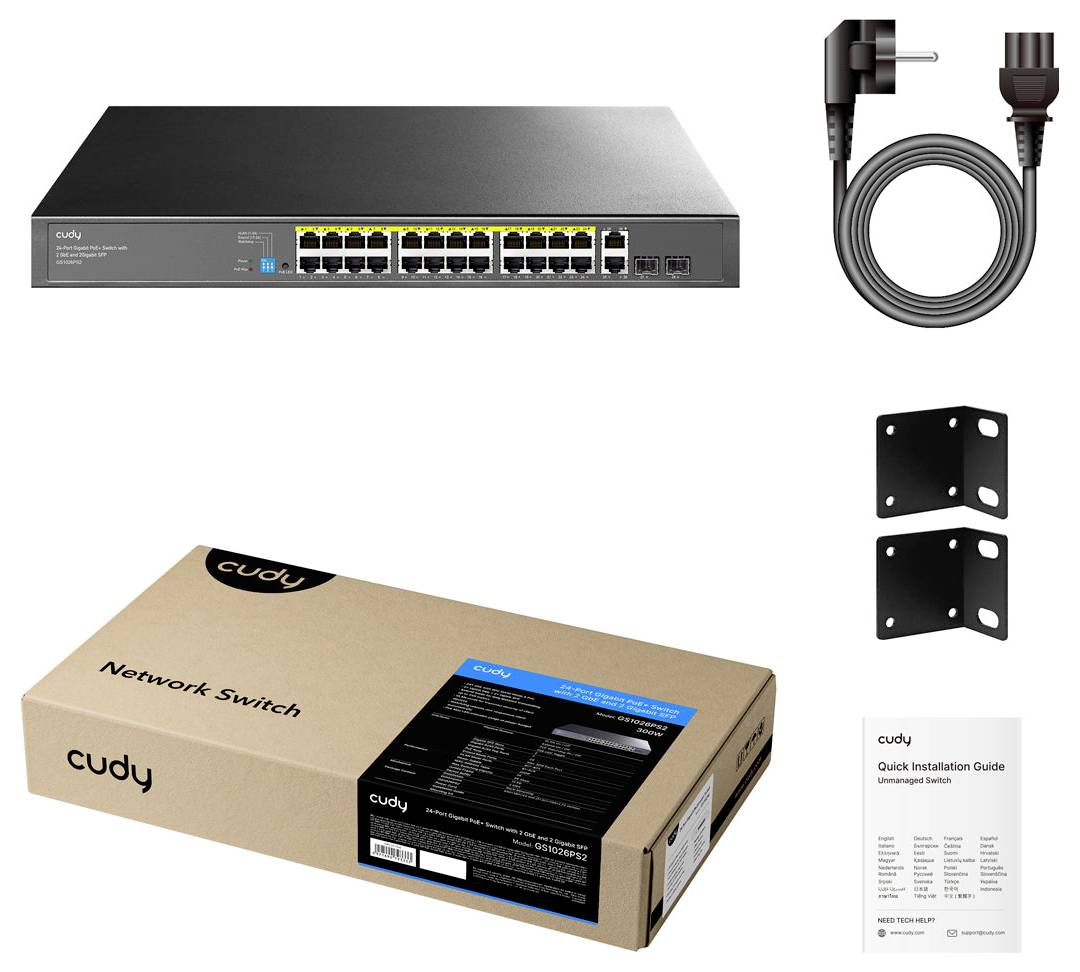

Cudy network switch package contents: 24-port rack-mount switch, power cable, mounting brackets, and quick installation guide.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy GS1026PS2 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Number of basic switching RJ-45 Ethernet ports: 26
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T, 1000BASE-X
MAC address table: 8192 entries Routing/switching capacity: 56 Gb/s.
Rack installation
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Energy source: AC

Product type: Network switch

Weight: 1.99 kg

Width: 320 mm

Height: 44 mm

Depth: 207 mm

Type: CUDY GS1026PS2 24-Port Gigabit Switch Po

Factory colour: Black

Material (details): Metal

Power supply (details): 100 - 240 V

UKCA: not relevant

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 26

Total Power over Ethernet (PoE) budget: 300 W

Packet buffer memory: 0.375 MB

Storage relative humidity (H-H): 10 - 95 %

Switching capacity: 56 Gbit/s

Rack mount kit: yes

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Store-and-forward: yes

Quick start guide: yes

Rack mounting: yes

MAC address table: 8192 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

10G support: no

Storage temperature (T-T): -40 - 70 °C

Package weight: 2.53 kg

Forwarding rate: 41.664 Mpps

Power consumption (max): 300 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798954 24-port Gigabit PoE+ switch with 2 uplink ports and 2 SFP slots 300W - switch - 1 Gbps

Conformity certificate

Conformity certificate 3798954 24-port Gigabit PoE+ switch with 2 uplink ports and 2 SFP slots 300W - switch - 1 Gbps

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

Activate the watchdog function to monitor the port activity. If a connected device freezes for 5 minutes and no data is transmitted, the watchdog automatically restarts the corresponding PoE port.

Optimized PoE management – bei popular installers

Integrated modes for practical applications

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures

Versatile scenarios

Monitoring

Office networks

WLAN on campus

Access and signage
