1/3
Image similar

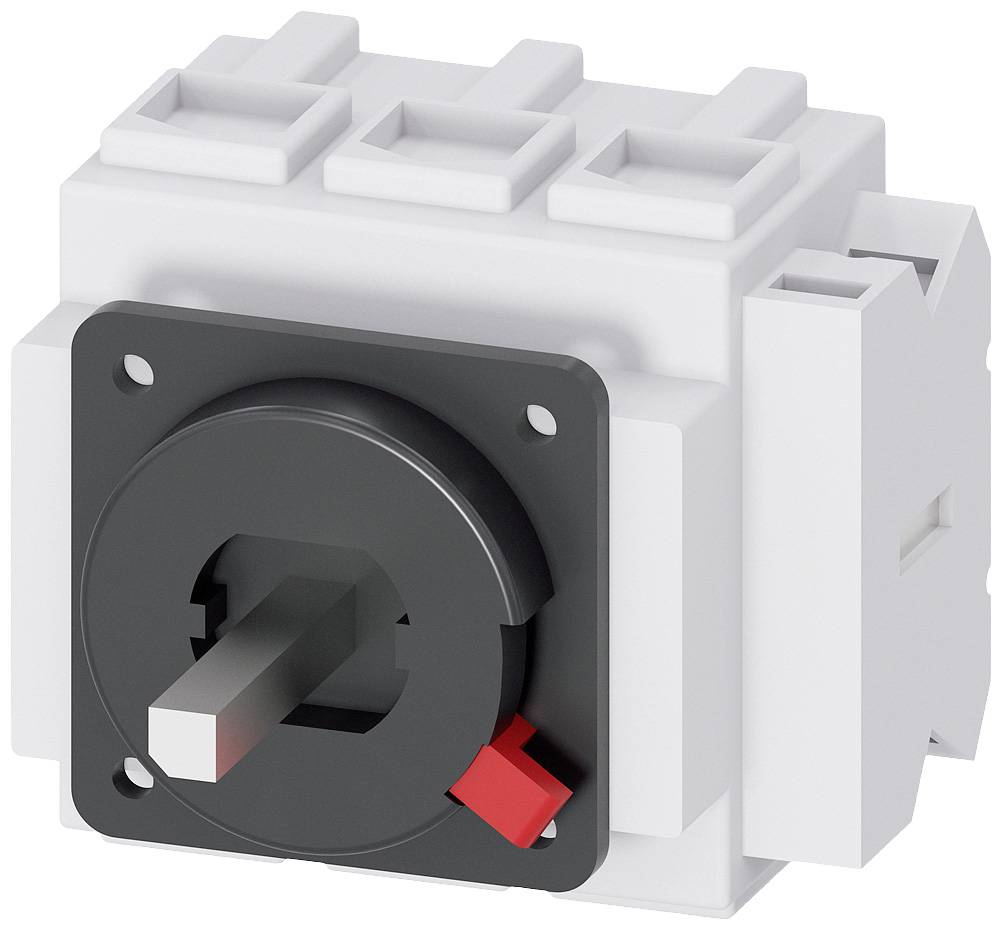

3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25551TP000AE8
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
63 A
Contact type
1 maker
1 breaker
Operating voltage
690 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 88.50 / piece)
€ 885.00
incl. VAT
14-day return policy included
Technical specifications
- IP65 rating
- Isolation voltage: 690 V
- Operating frequency: 50/60 Hz
- Ambient temperature: -25 °C to +55 °C
- Surge voltage resistance: 6 kV
- Mechanical life: 100000
- Electrical life: 6000
- Size of the switch disconnector: 3
- Power loss: 13.5 W
- Contact type
1 maker
1 breaker
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Cross section
35 mm²
- Number of pins
3

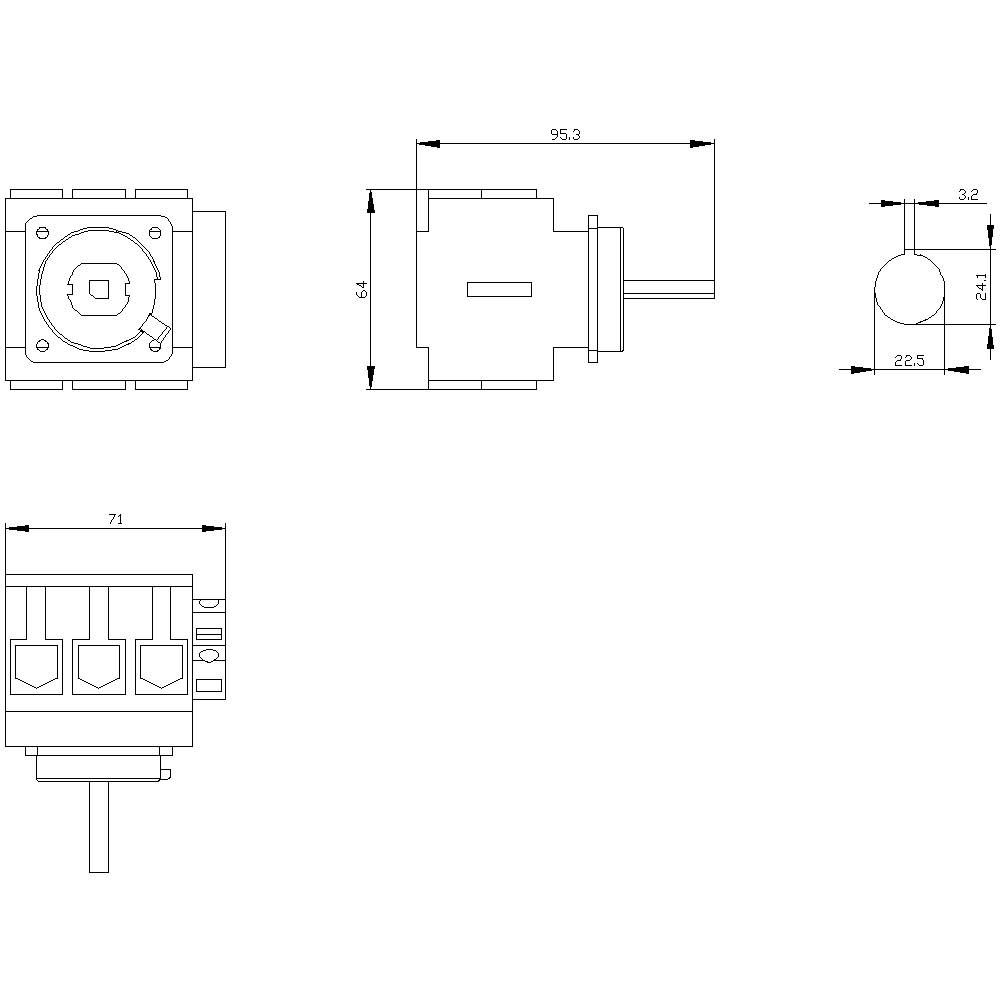

- Dim
(W x H x D) 71 x 64 x 80 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type
pressure switch
- Width
71 mm
- Height
64 mm
- Depth
80 mm
19 kW
1
1
63 A
3
IP65
0
1
FALSE
FALSE
Frame clamp
FALSE
Other
TRUE
TRUE
TRUE
22 kW
1.26 kA
Other
FALSE
FALSE
TRUE
FALSE
FALSE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
63 A
FALSE
43
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1744180 3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25551TP000AE8
User & Safety Instructions
User & Safety Instructions 1744180 3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25551TP000AE8
Description
Power contactor, AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC operation 110-127 V UC Auxiliary contacts 2 NO + 2 NC lateral, captive 3-pole, Size S6 Busbar connections Drive: conventional for SUVA applications
