Name: 3M 7000099271 Heatshrink + adhesive Black 90 mm 36 mm Shrinkage:3:1 1 pc(s)
Brand: 3M
SKU: 2297873

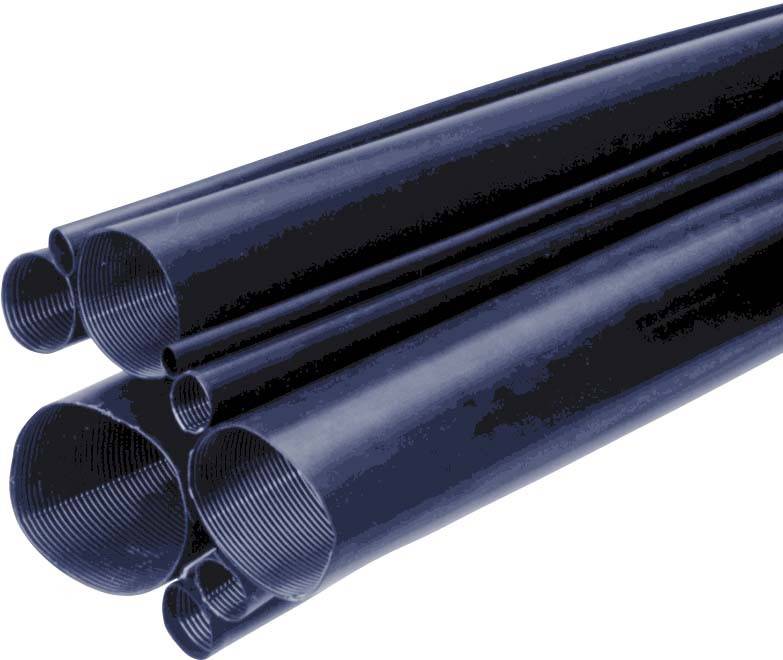

Several black plastic pipes of varying diameters, stacked on top of each other, for use in cable installation.

Image similar

Product type

Heatshrink + adhesive

Nominal inside diameter (pre-shrinkage)

90 mm

Nominal diameter (post-shrinkage)

36 mm

Heatshrink features

incl. adhesive

with partition

Content

1 pc(s)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

3M Germany Heat-shrink tubing with W90/36 mm, black MDT-A 90/36

1 pc(s)
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 90 mm

Technical specifications

Design: Medium-walled
Printable: no.
Nominal cross-section: 4069 mm²

Product type: Heatshrink + adhesive

Nominal inside diameter (pre-shrinkage): 90 mm

Nominal diameter (post-shrinkage): 36 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: incl. adhesive
with partition

Content: 1 pc(s)

Material: Polyolefin

Max. temperature: +130 °C

Manufacturer part #: 7000099271

Halogen-free: Yes

Length: 1 m

Type: MDT-A 90/36

Wall thickness (post-shrinkage): 3 mm

Weight: 1000 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2297873 3M 7000099271 Heatshrink + adhesive Black 90 mm 36 mm Shrinkage:3:1 1 pc(s)

Description

The 3M heat-shrink tubing MDT A is a halogen-free, medium-walled heat-shrink tubing made of radiation-networked polyolefin with a hot-melt adhesive coating. The hot-melt glue penetrates all unevenness and cavities and prevents moisture from entering. The 3M heat-shrink tubing MDT A is suitable for insulation of plastic and earth cables up to 0.6/1kV for laying in the open air and in the ground. The heat-shrink tubing is resistant to aging and is UV-resistant and resistant to many chemical influences. It can be used in a temperature range from 55 °C to +130 °C. Due to its high shrink rate of 4.5 to one, you can record large diameter jumps with only one hose. The 3M heat-shrink tubing MDT A meets technical requirements according to IEC 60684 and is approved according to Lloyds Register of Shipping, certificate 95/30032(E5). It is halogen-free and RoHS compliant.

This text is machine translated.
