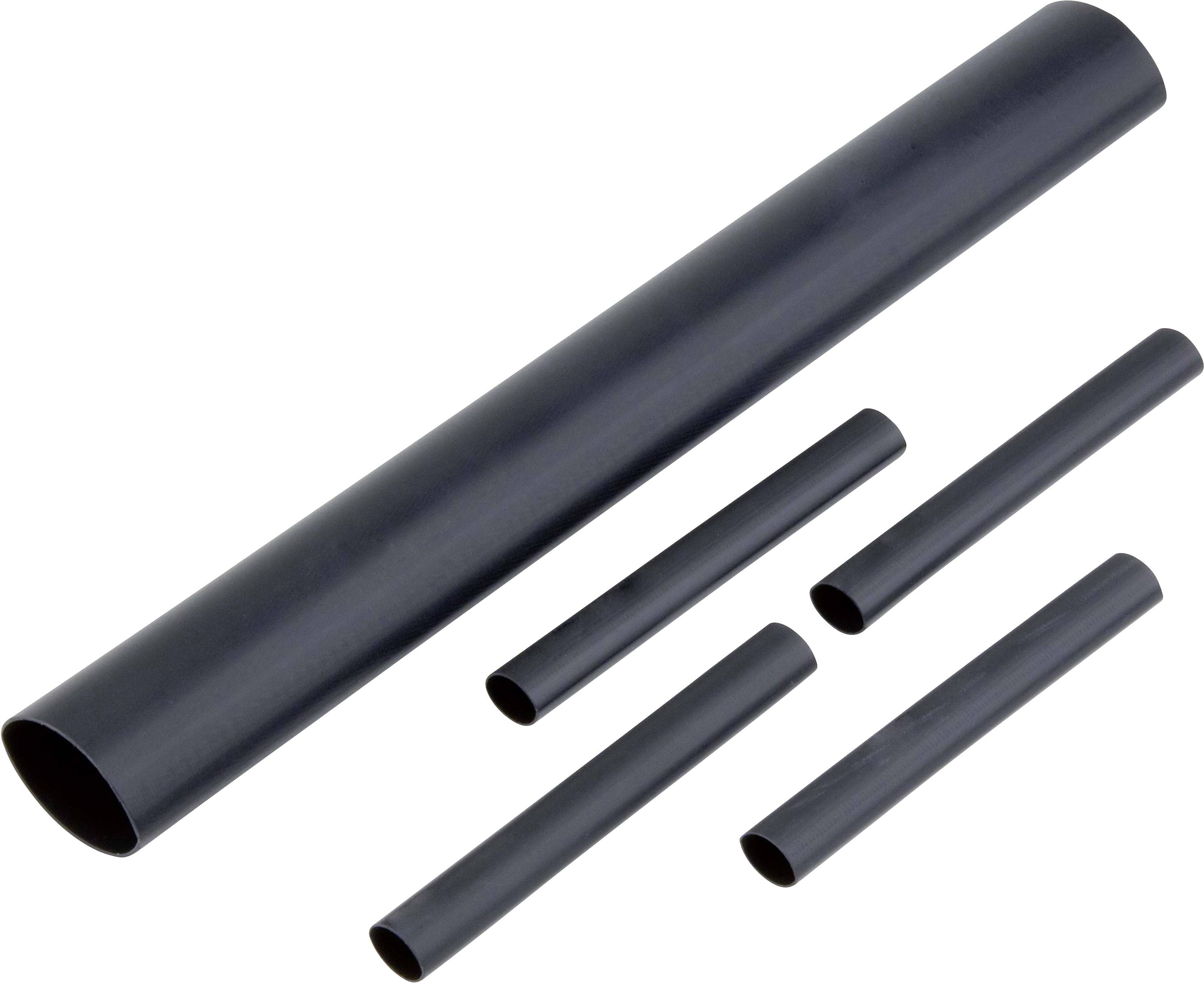

Image similar
3M 7000099517 91-AH 20-5 N Heatshrink w/o screw connectors Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Heatshrink w/o screw connectors
Min. cross section
2 mm²
max. cross section
6 mm²
Content
1 pc(s)
Manufacturer part #
7000099517
Technical specifications
- Number of conductors: 5
- Design: Heat shrink
- Rated voltage U0/U (um): 0.6/1 (1.2) kV
- Suitable for: N(A)YY
- With concentric shielding: no.
- For connecting paper cables with plastic-insulated cables: no.
- Product type
Heatshrink w/o screw connectors
- Min. cross section
2 mm²
- max. cross section
6 mm²
- Content
1 pc(s)
- Manufacturer part #
7000099517
- Factory colour
Multicolour
- Features
halogen-free
- Type
91-AH 20-5 N
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296879 3M 7000099517 91-AH 20-5 N Heatshrink w/o screw connectors Content: 1 pc(s)
Description
The 3M series 91 AH N heat-shrink fittings are suitable for all unshielded, unarmoured cables with PVC or VPE conductor insulation in the low-voltage range up to 0.6/1kV. It can be used both for outdoor applications and for laying on the ground. It has been developed and approved according to DIN V 47640 for crimp connectors. The heat-shrink connection set consists of a thick-walled, melt-adhesive-coated outer hose and four or five heat-melt-adhesive-coated inner hoses. Crimp connectors are not included in the delivery. Due to its good resistance to chemicals and alkalis, it ensures a high mechanical protection for the connection. It is UV resistant and offers excellent moisture protection. The halogen-free connection set has good insulation properties and is therefore suitable for use in electrical installation, in industry and in power supply companies. It is easy and quick to install thanks to its slim design even in confined spaces.
