Name: 3M SCOTCH27-12X20 Cloth tape White (L x W) 20 m x 12 mm 1 pc(s)
Brand: 3M
SKU: 3098740
Availability: InStock

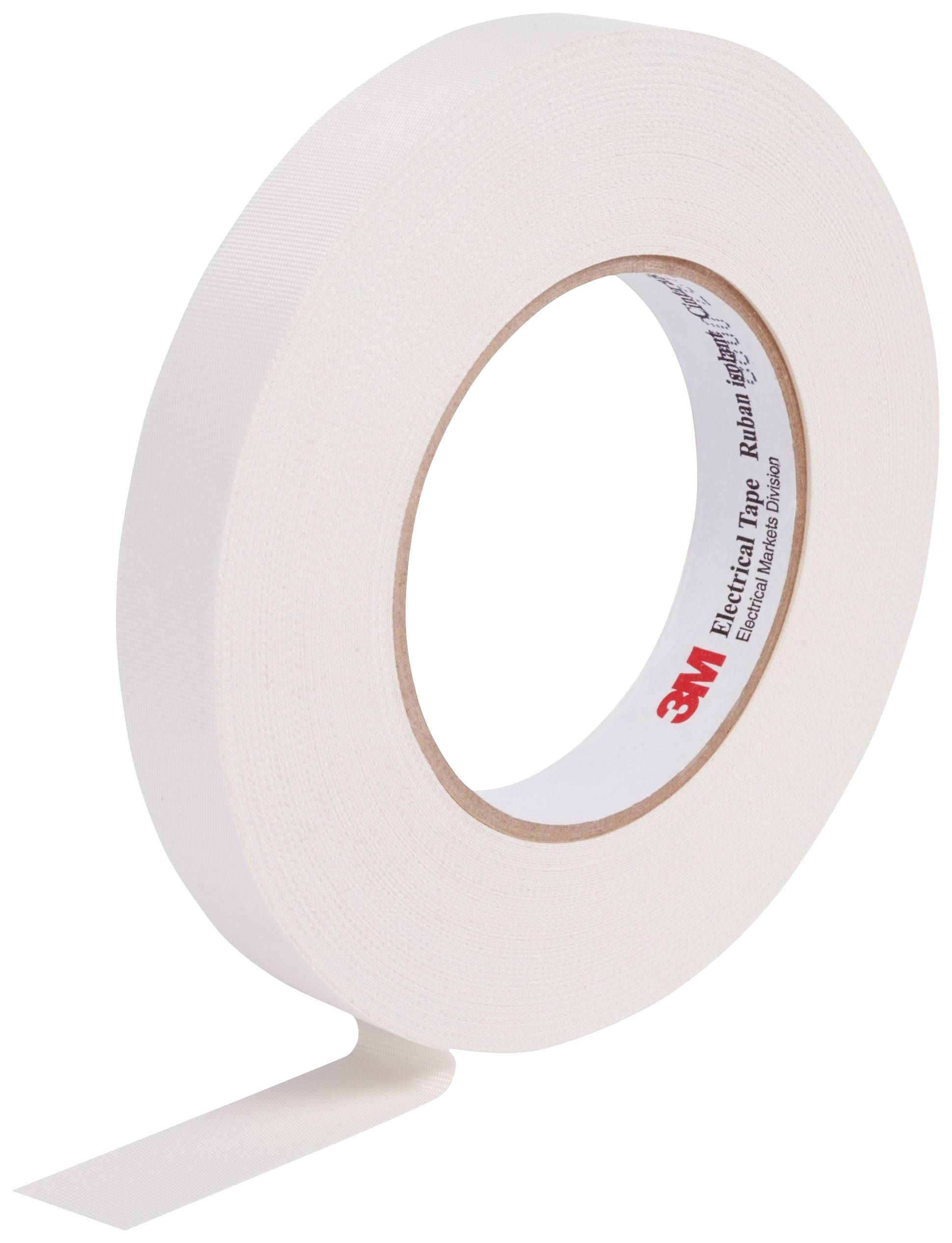

White roll of insulating tape on a white background, partially unrolled.

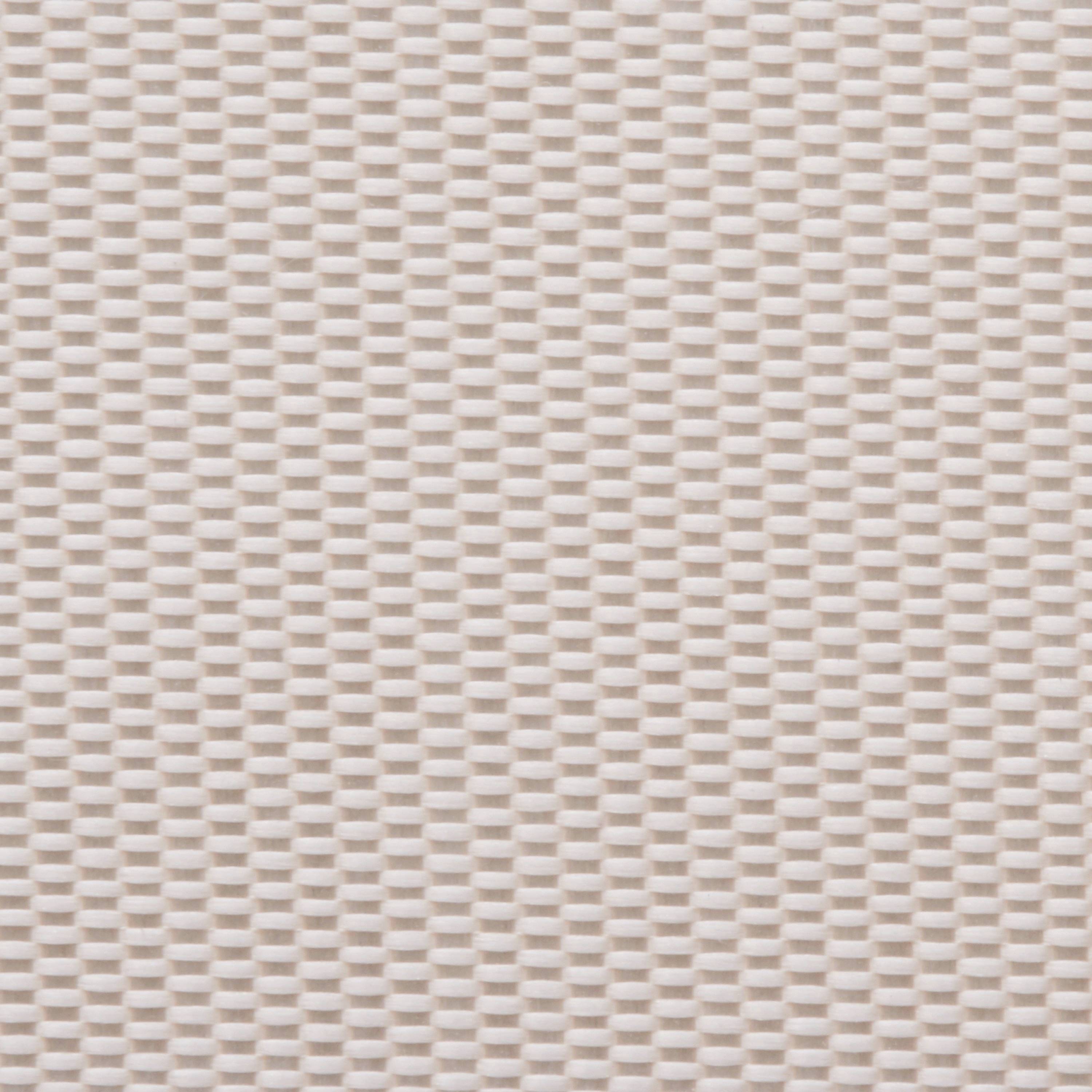

Braided beige textile pattern with rectangular interlock structures in uniform arrangement.

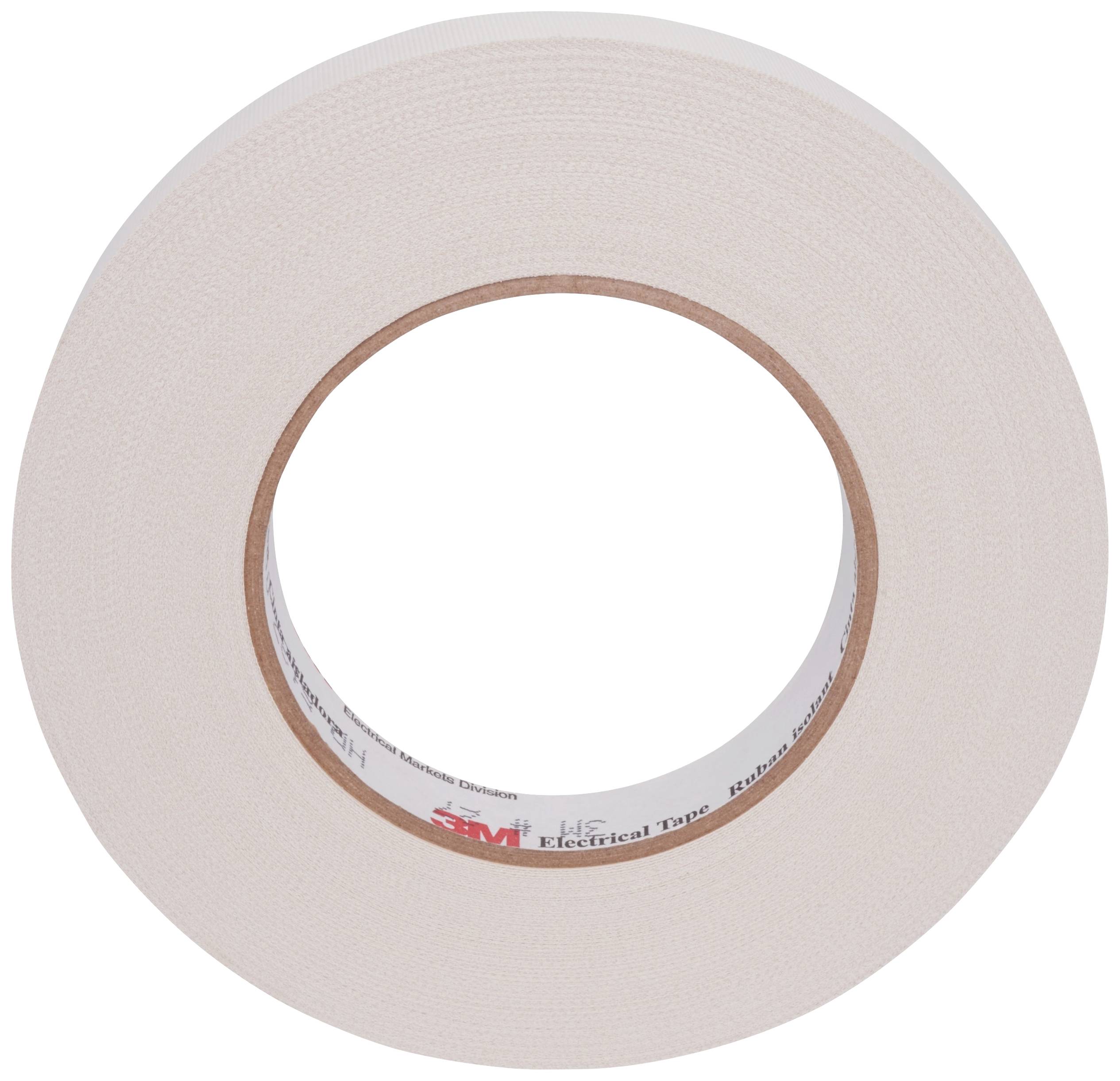

A roll of beige electrical tape with a visible white inner ring and red lettering on the inside.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

31 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 0.85)

€ 16.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Scotch® 27 fiber optic fabric tape, white, 12 mm x 20 m, 0.18 mm

0.178 mm woven fiber glass fabric tape with pressure-sensitive, heat-hardened rubber adhesive
Designed for use in dry 600 volt applications requiring high mechanical strength and high temperature resistance
The adhesive has been specially developed and prepared for corrosion protection
Tear-off edge, abrasion-proof and adaptable
For use as coil protection, anchoring, bandages, Kern, layer, and transverse insulation
Printable
Flame retardant according to UL® 510

Technical specifications

Elongation at tear 5 %
Tensile strength: 252 N/cm

Product type: Cloth tape

Adhesive tape features: Fibreglass-reinforced

Length: 20 m

Width: 12 mm

Max. temperature: +150 °C

Factory colour: White

Adhesive type: Gum

Carrier material: Fibreglass fabric

Type: SCOTCH27-12X20

Content: 1 pc(s)

Dim: (L x W) 20 m x 12 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3098740 3M SCOTCH27-12X20 Cloth tape White (L x W) 20 m x 12 mm 1 pc(s)

Description

3M™ fiber-optic fabric tape 27 is a 0.178 mm woven insulating tape with pressure-sensitive, heat-hardened rubber adhesive. The adhesive tape is designed for use in dry 600 volt applications requiring high mechanical strength and high temperature resistance. The adhesive has been specially developed and prepared for corrosion protection.

This text is machine translated.

Features

For protection against high heat-emitting electrical components and for protection against heat radiation, as cable protection with soldering and welding work.

Hints

The Scotch® 27 fiber optic cable tape can withstand a breakdown voltage of 3,000 volts and has a temperature resistance of up to 130°C of insulation class B. It is therefore well suited for insulation of strong thermal, electrical components and also protective elements against heat radiation. Like all fiber glass bands, it is especially resistant against tearing and abrasion. This ensures a long functionality even at high mechanical stress such as in electric motors. Due to its elasticity, the insulating tape coated with a heat-hardened rubber adhesive fits perfectly on various surfaces. At the same time, the printable fabric structure ensures excellent absorption of resins and paints.

Description

Features

For protection against high heat-emitting electrical components and for protection against heat radiation, as cable protection with soldering and welding work.
