6109838 Cover VH-P3 94.5 mm Yellow 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

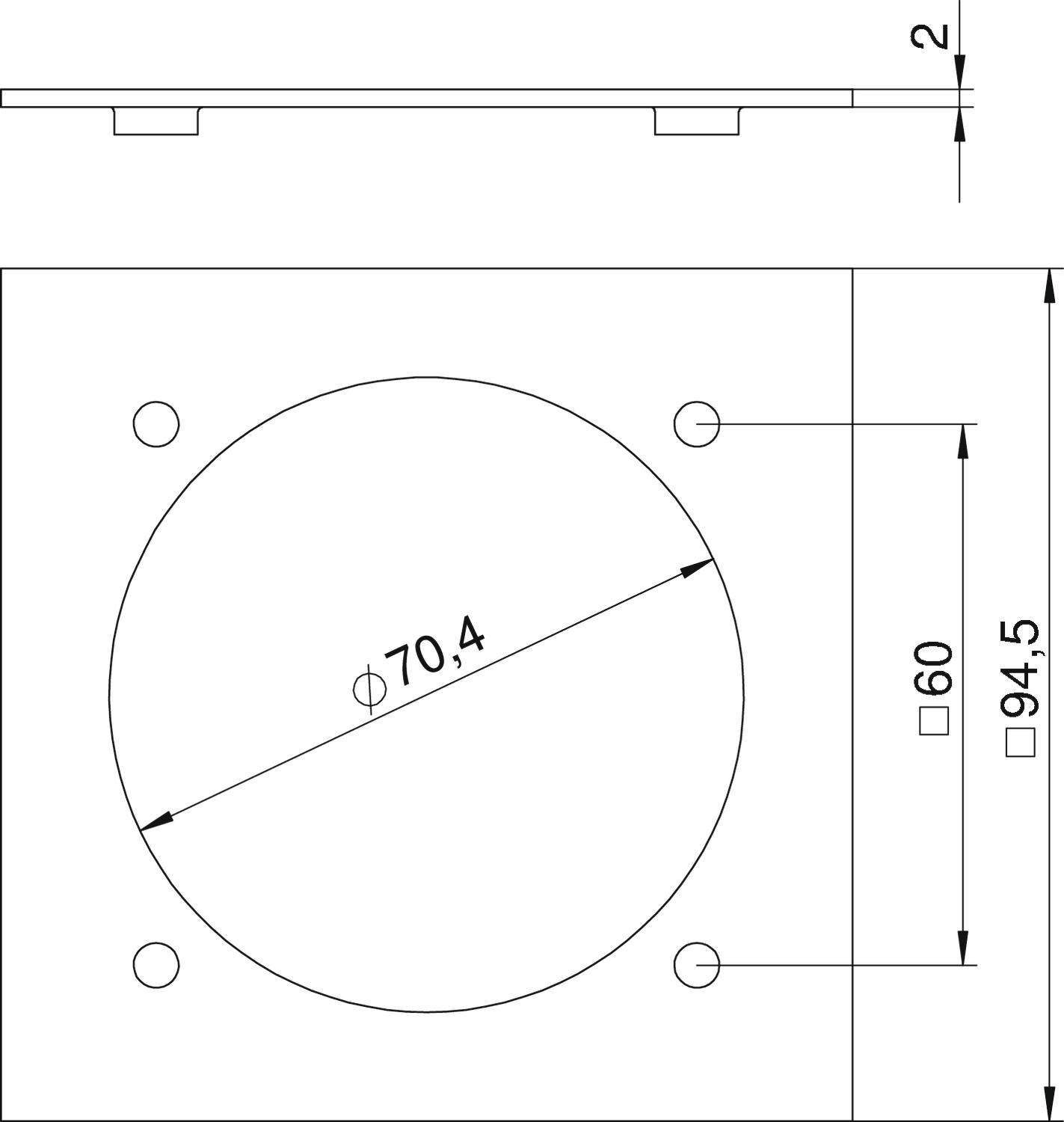

- Inner diameter: 70.4 mm
- Number of Units: 1
- Blind cover: no
- Installation Technology: CEE 60 x 60 mm
- Mounting type: screw
- Design: round
- Material: plastic
- Material good: other
- Halogen-free: yes
- Untreated surface:
- Color: Other
- RAL-number: 1021
- Product type
Cover
- Factory colour
Yellow
- Content
1 pc(s)
- Dim
(L x W x H) 94.5 x 94.5 x 2 mm
- Length
94.5 mm
- Width
94.5 mm
- Height
2 mm
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963964 6109838 Cover VH-P3 94.5 mm Yellow 1 pc(s)
Description
Cover plate for the power supply units VH with a Ø 70 mm opening for the installation of a CEE-socket 16/32A with 60-mm mounting track, including 4 mounting screws. In the power supply unit VH-4 should not exceed the maximum 2 CEE-Sockets 16/32A is to be installed. The Supply Unit VH-8 is only for a fitting with max. 4 CEE-Sockets 16/32A suitable.
