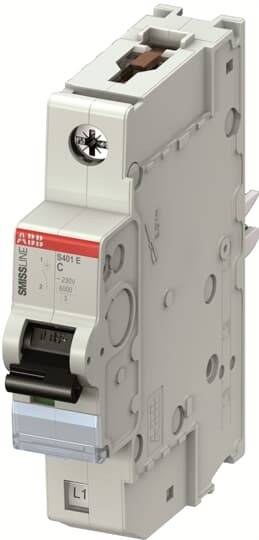

ABB 2CCS551001R0164 S401E-C16 Circuit breaker 16 A 230 V
Product type
Circuit breaker
Number of pins
1
Release characteristics
C
Nominal current - rounded value
16 A
Nominal current
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
C
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Content
1 pc(s)
- Nominal voltage
230 V
IP20
AC
82 mm
16 A
230 V
50-60 Hz
C
440 V
3
3
4
1
FALSE
IP20
1
FALSE
0.75-35 mm²
0.75-25 mm²
-25-60 °C
FALSE
TRUE
1
6 kA
6 kA
6 kA
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3117111 ABB 2CCS551001R0164 S401E-C16 Circuit breaker 16 A 230 V
User & Safety Instructions
User & Safety Instructions 3117111 ABB 2CCS551001R0164 S401E-C16 Circuit breaker 16 A 230 V
Description
The series S 400 circuit breakers protect cables and wires from overload and short circuit in accordance with DIN VDE 0100-430 and DIN VDE 0100-530 They comply with the construction regulations DIN VDE 0641-11 and/or IEC/EN 60898-1, DIN VDE 0660-101 OR IEC/EN60947-2. Their patented connection terminal provides simple and secure contact and handling by means of a printing plate. Wire cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The contacting occurs directly via the socket system and the outer conductor contact can be freely selected (L1, L2 or L3). The extensive range of accessories offers you everything that you need WAS for your installation tasks. Numerous approvals make the S 400 fit for worldwide use. Each device is subjected to three-fold intensive tests for quality and performance before delivery.
