Name: ABB 2CDL230010R1012 PS3/12A PHASE TRACK 3Ph.,12Pins,10qmm Phase modifier Grey 10 mm² 63 A 1 pc(s)
Brand: ABB
SKU: 2328683

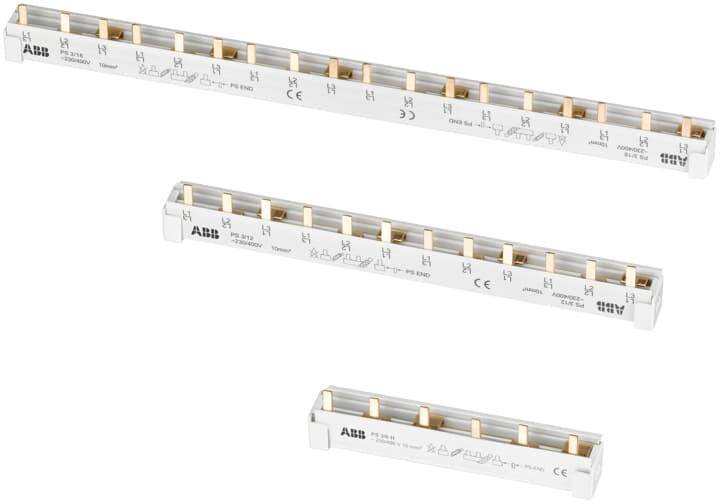

'Three white ABB collection bars of different lengths with copper contacts, for electrical distribution in switchboards.'

Product type

Phase modifier

Factory colour

Grey

Cross section

10 mm²

Nominal current

63 A

Nominal current - rounded value

63 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of division units: -
Rated short-term current strength ICW: 25
Rated surge voltage 4.5
Suitable for number of devices: 4
Suitable for devices with auxiliary switch: No.
Suitable for devices with N-conductor: No.
Isolated: Yes
Max. Rated operating voltage UE: 690
Cross section: 10
Division dimension: 17.5
Conditional rated short-circuit current IQ 25
Rated continuous current IU: 63
Electrical connection type: Pin
Number of poles: 12
Length: 214
Number of phases: 3

Product type: Phase modifier

Factory colour: Grey

Cross section: 10 mm²

Nominal current: 63 A

Nominal current - rounded value: 63 A

Content: 1 pc(s)

Length: 214 mm

Weight: 0

: Grey

: TRUE

: 3

: 63 A

: 12

: 216 m

: 25 kA

: 12

: 4.5 kV

: Pin

: 25 kA

UKCA: yes
