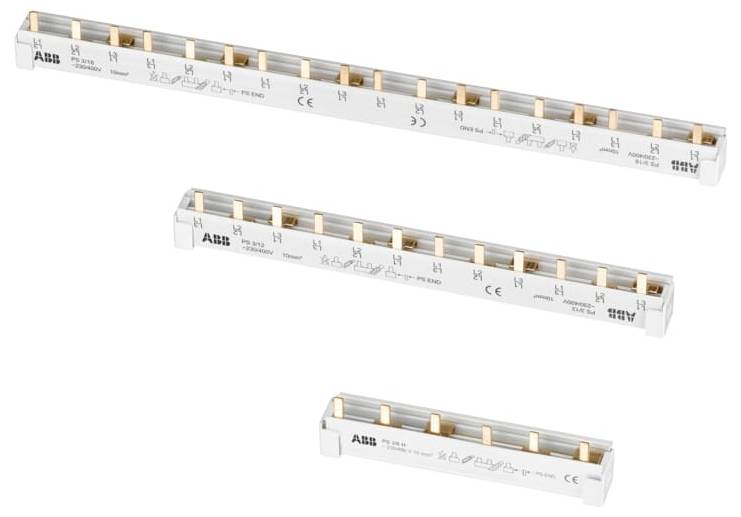

ABB 2CDL231002R1012 Bus bar PS3/12FI Phase modifier No. of rows 1 Grey 10 mm² 63 A 1 pc(s)
Product type
Phase modifier
Operating voltage
690 V AC / 690 V DC
Factory colour
Grey
Cross section
10 mm²
Number of pins
12
EAN:
Part number:
Item no:
Technical specifications
- Product type
Phase modifier
- Operating voltage
690 V AC / 690 V DC
- Factory colour
Grey
- Cross section
10 mm²
- Number of pins
12
- Dim
(L x W x H) 211 x 21 x 27 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- No. of rows
1
- No. of partitions
12
- Content
1 pc(s)
- Width
21 mm
- Height
27 mm
- Length
211 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3789561 ABB 2CDL231002R1012 Bus bar PS3/12FI Phase modifier No. of rows 1 Grey 10 mm² 63 A 1 pc(s)
Description
ABB phase rails enable the safe and economical cross-wiring of circuit breakers, residual-current protective devices and other modular installation devices. For correct phase bar selection, the following must be observed: Terminal type (double terminal or cage terminal), pole number of the devices (1, 2, 3, 4, 1+N or 3+N), Device type (circuit breakers, residual current circuit breakers or modular installation devices), combinations of different types of equipment, use of circuit breakers with auxiliary switches mounted on the right and bottom, phase rails cross-section (current carrying capacity), number of modules (selection from standard phase rails or short phase rails)
