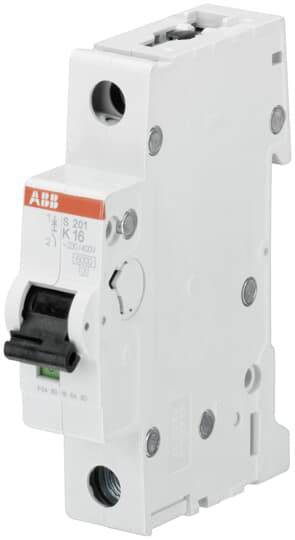

ABB 2CDS251001R0427 S201-K10 Circuit breaker 1-pin
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Factory colour
Multicolour
Dim
(L x W x H) 150 cm x 50 mm x 100 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Factory colour
Multicolour
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Width
50 mm
- Height
100 mm
- Length
150 cm
- Depth
69 mm
- Weight
0
AC/DC
69 mm
10 A
230 V
50-60 MHz
K
440 V
3
3
3
1
FALSE
1.4 W
IP20
1
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
1
6 kA
6 kA
10 kA
10 kA
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326451 ABB 2CDS251001R0427 S201-K10 Circuit breaker 1-pin
User & Safety Instructions
User & Safety Instructions 2326451 ABB 2CDS251001R0427 S201-K10 Circuit breaker 1-pin
Description
The circuit breakers of the series S 200 protect cables and lines against overload and short-circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2 and UL1077. Its patented terminal clamp provides for simple and safe contact and handling by means of a pressure plate. For better visibility when wiring, the connection opening for cables is above the connection opening for the phase rail. Conductor cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything was needed for your installation tasks. Numerous approvals make the S 200 fit for worldwide use. Each device is subjected to three times intensive tests for quality and performance before delivery.
