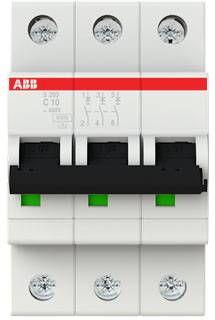

ABB 2CDS253001R0104 S203-C10 Circuit breaker 3-pin
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Factory colour
Multicolour
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- Factory colour
Multicolour
- Content
1 pc(s)
- Depth
69 mm
AC
69 mm
10 A
400 V
50-60 MHz
C
440 V
3
3
3
3
FALSE
6.3 W
IP20
3
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
3
6 kA
6 kA
20 kA
20 kA
4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2329652 ABB 2CDS253001R0104 S203-C10 Circuit breaker 3-pin
User & Safety Instructions
User & Safety Instructions 2329652 ABB 2CDS253001R0104 S203-C10 Circuit breaker 3-pin
Description
The circuit breakers of the series S 200 protect cables and lines against overload and short-circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN60947-2 and UL1077. Its patented terminal clamp provides for simple and safe contact and handling by means of a pressure plate. For better visibility when wiring, the connection opening for cables is above the connection opening for the phase rail. Conductor cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything was needed for your installation tasks. Numerous approvals make the S 200 fit for worldwide use. Each device is subjected to three times intensive tests for quality and performance before delivery.
