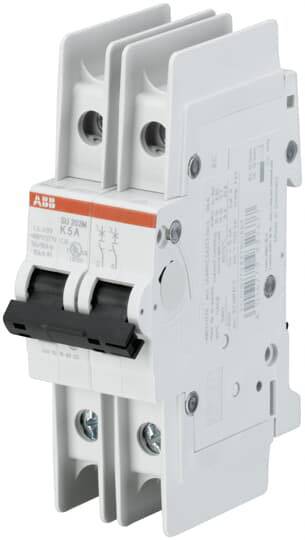

ABB 2CDS272337R0317 SU202M-K3 Circuit breaker 2-pin 3 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Differential current rating
3 A
Content
1 pc(s)
Depth
69 mm
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Differential current rating
3 A
- Number of pins
2
- Content
1 pc(s)
- Depth
69 mm
AC/DC
69 mm
3 A
440 V
50-60 MHz
K
440 V
3
3
3
2
FALSE
3.2 W
IP20
2
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
2
11.2 kA
15 kA
15 kA
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318721 ABB 2CDS272337R0317 SU202M-K3 Circuit breaker 2-pin 3 A
User & Safety Instructions
User & Safety Instructions 2318721 ABB 2CDS272337R0317 SU202M-K3 Circuit breaker 2-pin 3 A
Description
The circuit breakers of the series SU 200 M protect cables and lines against overload and short-circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0660-101 or IEC/EN60947-2 and UL489 or CSA 22.2 No. 5. Its patented terminal clamp provides for simple and safe contact and handling by means of a pressure plate. For better visibility when wiring, the connection opening for cables is above the connection opening for the phase rail. Conductor cross-sections up to 35 mm² can be connected directly to the device via the terminal clamp with insulation in protection class IP20. The extensive range of accessories offers you everything was needed for your installation tasks. The combination of the approvals according to UL489, CSA 22.2 No. 5 and IEC/EN60947-2 make this device a world-wide device for high demands and is subjected to three times intensive tests for quality and performance before delivery.
