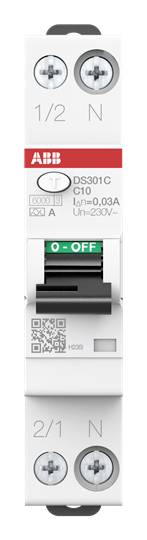

Name: ABB 2CSR255163R1104 RCBO 1-phase 10 A 0.03 A
Brand: ABB
SKU: 3118956

Technical specifications

Nominal voltage (details): 240 V

Product type: RCBO

Number of pins: 2

Release characteristics: C

Differential current rating: 0.03 A

Content: 1 pc(s)

Nominal current: 10 A

Nominal current - rounded value: 10 A

Model: 1-phase

Switch-off capacity: 6 kA

: AC

: 17.6 mm

: 10 A

: 240 V

: C

: 500 V

: 0.03 A

: A

: 3

: 3

: 2

: 1

: 1.5 W

: 50 Hz

: IP20

: 1

: TRUE

: 6 kA

: 1.5-16 mm²

: 1.5-10 mm²

: FALSE

: FALSE

: 1

: FALSE

: 4

: 6 kA

: Undelayed

: 6 kA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3118956 ABB 2CSR255163R1104 RCBO 1-phase 10 A 0.03 A

Description

FI/LS switches (RCBOs) provide personal protection and property protection as well as protection against electrically ignited fires according to DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection of single-phase circuits against overload and short-circuit currents, protection for sinusoidal AC currents and pulsating currents with a smooth DC-fault share of up to 10 mA against earth. Fault protection (protection in case of indirect contact), additional protection and fire protection. It meets the product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21).
They are used in domestic, commercial and industrial applications. The compact design of the DS301C FI/LS is optimally suitable for use in power distribution systems, in which there is less space available. The series is with 30 mA differential fault current and a B or C trigger characteristic.
Rated switching capacity according to IEC/EN 61009 ICN = 6 kA.
RCBO DS301C A type A is 1-pin protected (LS), 2-pin switching.

This text is machine translated.
