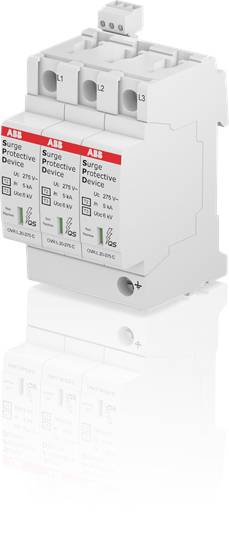

ABB 2CTB803873R3500 OVR T2-T3 3L 20-27 Surge protection 5 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge protection
- Leakage current
5 kA
- Nominal voltage
400 V AC
- Manufacturer part #
2CTB803873R3500
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
TRUE
3
3 modular spacing
0.9 kV
275 V
5 kA
400 V
TRUE
Optic
350 V
IP20
FALSE
25 mm²
16 mm²
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
FALSE
5 kA
100 kA
125 A
FALSE
125 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119314 ABB 2CTB803873R3500 OVR T2-T3 3L 20-27 Surge protection 5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119314 ABB 2CTB803873R3500 OVR T2-T3 3L 20-27 Surge protection 5 kA 1 pc(s)
Description
Over-voltage protection devices SPD type 2+3 with QUICKSAFE® technology, tested according to DIN EN 61643-11, are suitable for protecting electrical low-voltage systems and terminals from dangerous overvoltage. The SPD meets the requirements for over-voltage protection arising from DIN VDE 0100-443 and 534. All surge protection devices are compatible with the System PRO M compact series and can be connected with these via phase rails. All devices are equipped with a function display.
