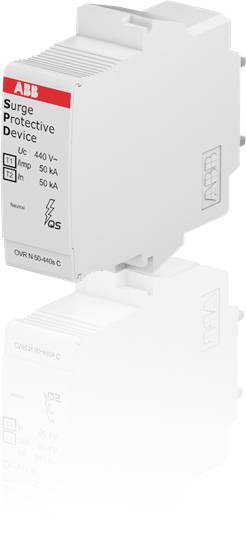

ABB 2CTB815710R5600 OVR T1-T2 N 50-440 Replacement module Piece 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Replacement module
- Nominal voltage
400 V AC
- Manufacturer part #
2CTB815710R5600
- Content
1 pc(s)
- Packaging type
Piece
DIN rail (top hat rail) 35 mm
50 kA
1
1 modular spacing
1 kV
FALSE
440 V
400 V
0 V
Type 1 + 2
1.8 kV
None
0 V
IP20
0 V
1.9 kV
FALSE
25 mm²
16 mm²
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
1.9 kV
-1 A
-1 A
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3119380 ABB 2CTB815710R5600 OVR T1-T2 N 50-440 Replacement module Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3119380 ABB 2CTB815710R5600 OVR T1-T2 N 50-440 Replacement module Piece 1 pc(s)
Description
Combined lightning and overvoltage protection device SPD type 1+2, for protecting low-voltage consumer systems from lightning currents and overvoltage. Tested SPD type 1 and type 2 according to DIN EN 61643-11. The devices can be used for use as a surge protection device according to VDE 0100 part 443 and part 534, as well as within the framework of the lightning protection zone concept. The devices are compatible with the System PRO M compact series. Optionally, the SPD with "TS" are equipped with a potential-free change-over contact. The versions with "reserve varistor" (s) provide additional protection for the plant so that at the end of its life the surge arresters are not completely disconnected from the mains, but further guaranteed a basic protection by an additional small varistor and thus the system remains protected until the surge arrester is replaced.
