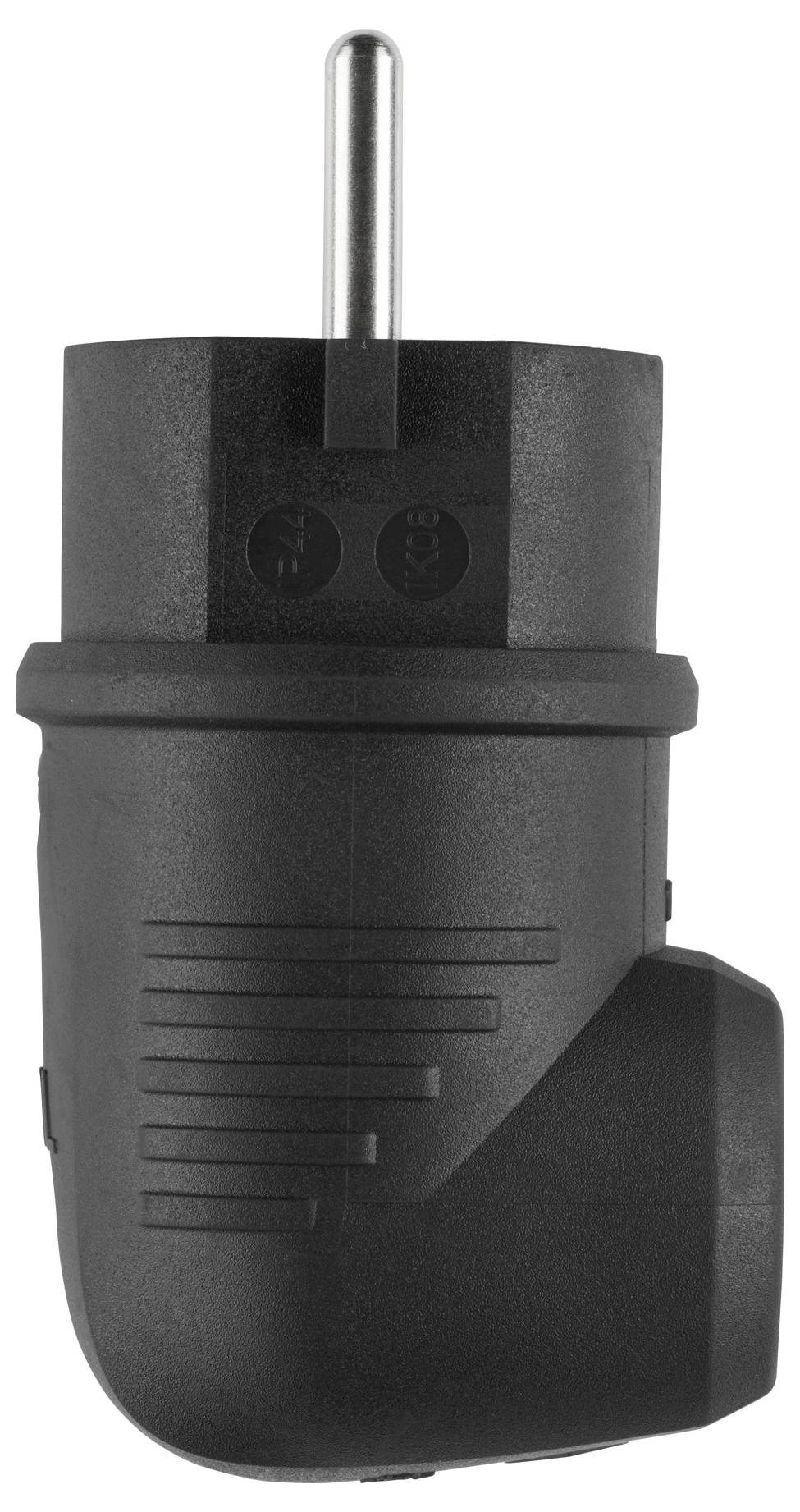

ABL Sursum 100000040 Safety L-shape mains plug Plastic 250 V Black IP44

EAN:
Part number:
Item no:
1/2
Datasheet (PDF)
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

Product type

Safety L-shape mains plug

Connector version

angled

Nominal voltage

250 V

Material

Plastic

Factory colour

Black

IP44

Mains plug type (on device)

E

F

Nominal current

16 A

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3783133 ABL Sursum 100000040 Safety L-shape mains plug Plastic 250 V Black IP44

Datasheet 3783133 ABL Sursum 100000040 Safety L-shape mains plug Plastic 250 V Black IP44

Security datasheet

Security datasheet 3783133 ABL Sursum 100000040 Safety L-shape mains plug Plastic 250 V Black IP44

Security datasheet 3783133 ABL Sursum 100000040 Safety L-shape mains plug Plastic 250 V Black IP44

Description

The angle plug from the Original product family is equipped with a double earthing system according to ground contact and French-Belgian standard. The connector consists of TPE rubber-like material and is made in Germany. Product advantages: Space-saving by angled cable outlet. Spray water protection in accordance with IP44 through 2-fold lamellar seal. High load-carrying capacity hammer symbols. Large connection space for wires up to 2.5 mm2. Cable diameter from 6 - 12 mm. Easy and comfortable connection by cap fixing screw. Open connection screws and. One-way screws that can be connected with a single screwdriver. Use Case: For use under difficult conditions. For heavy mechanical stress in dry, damp and wet rooms as well as in the open air.

This text is machine translated.
