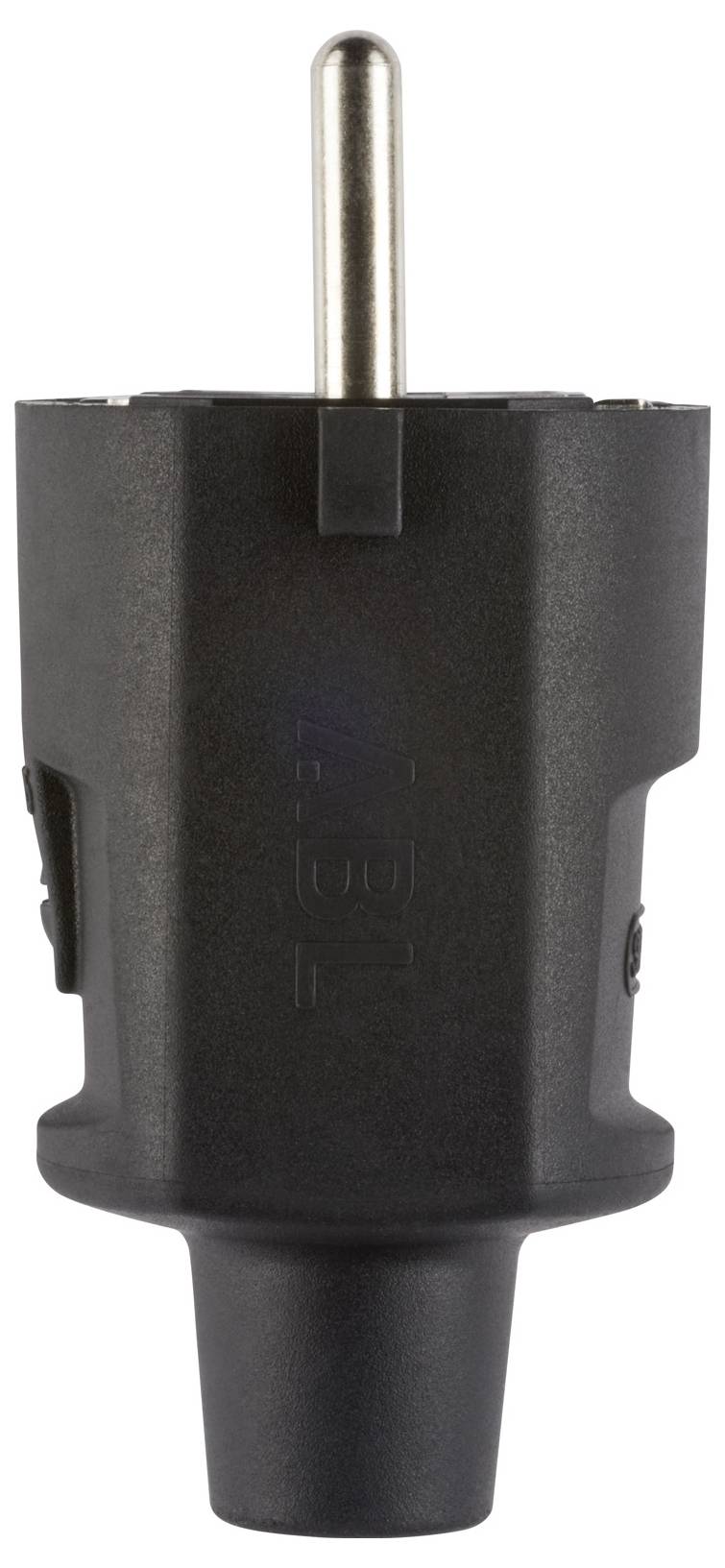

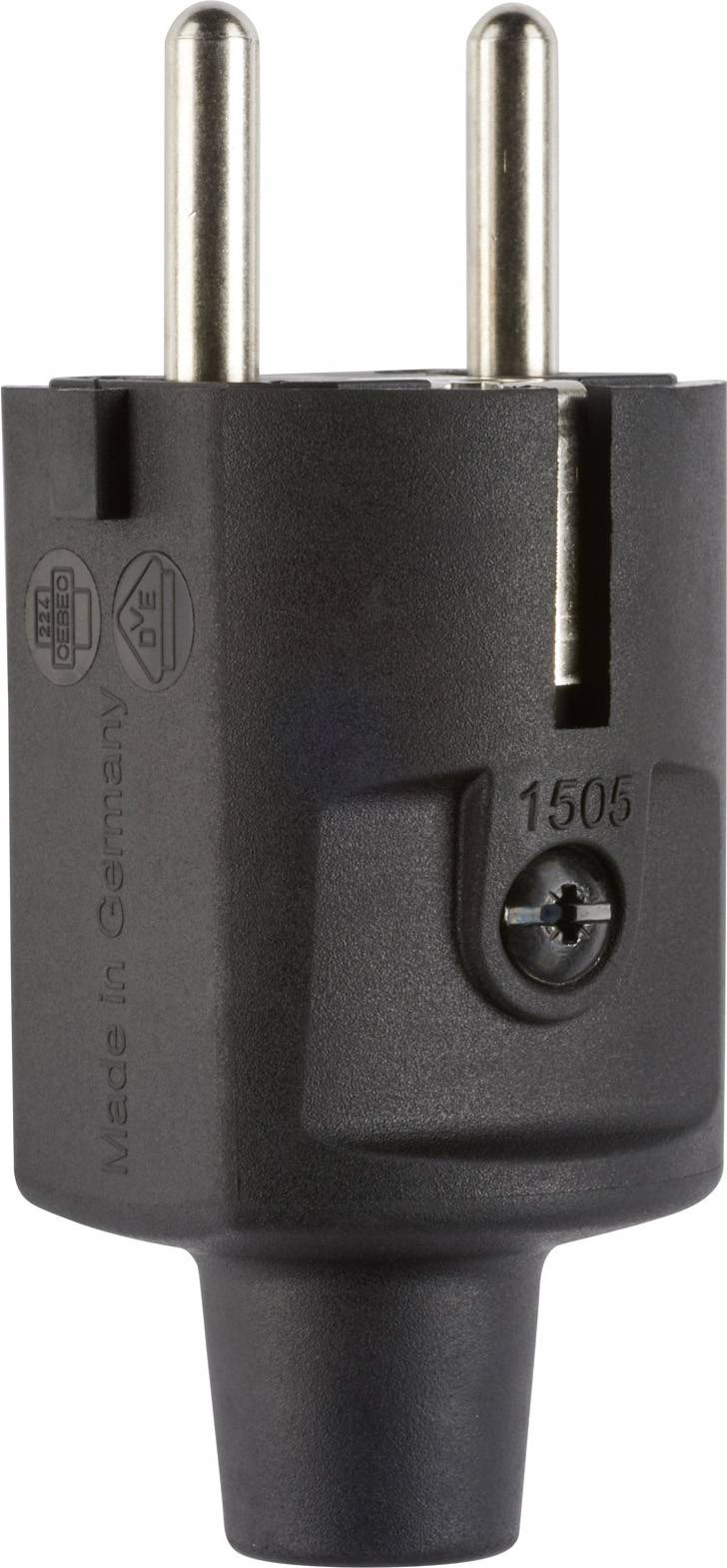

ABL Sursum 100000044 Safety plug Plastic 250 V Black IP20
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety plug
- Connector version
straight
- Nominal voltage
250 V
- Material
Plastic
- Factory colour
Black
IP20
- Mains plug type (on device)
E
F
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3783131 ABL Sursum 100000044 Safety plug Plastic 250 V Black IP20
Datasheet 3783131 ABL Sursum 100000044 Safety plug Plastic 250 V Black IP20
Security datasheet
Security datasheet 3783131 ABL Sursum 100000044 Safety plug Plastic 250 V Black IP20
Security datasheet 3783131 ABL Sursum 100000044 Safety plug Plastic 250 V Black IP20
Description
The plug of the Compact product family is equipped with a double earthing system according to earthing contact and French-Belgian standard. The connector is made of TPE and is made in Germany. Product advantages: Cable kink protection. Protection class IP20. Connection space for wires up to 1.5 mm2. Cable diameter from 6.5 - 10.4 mm. Easy and comfortable connection by cap fixing screw. Open connection screws and. One-way screws that can be connected with a single screwdriver. Use Case: For low mechanical strain in dry rooms e.g. in homes and offices.
