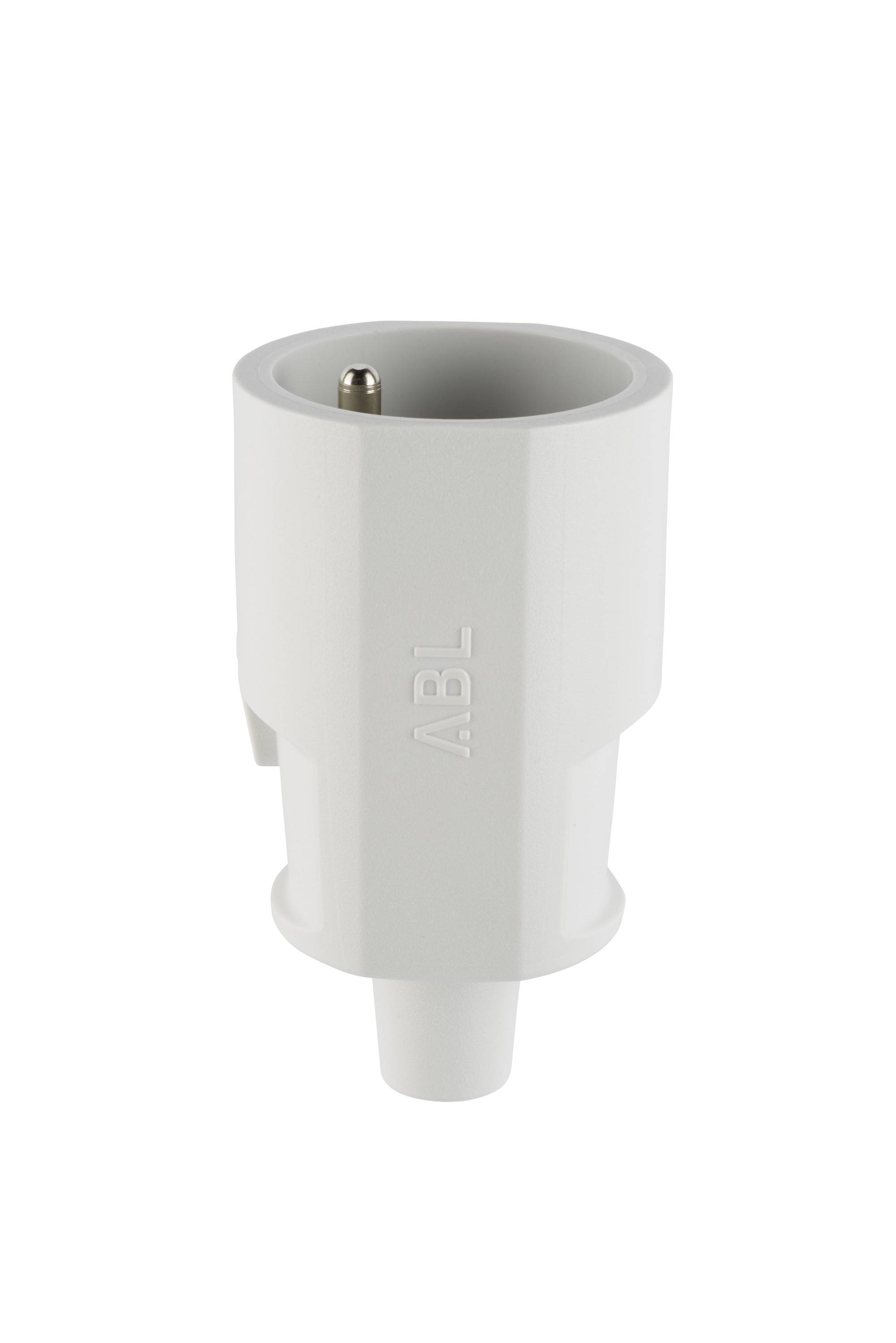

ABL Sursum 100000062 Safety mains socket Plastic halogen-free 250 V Grey IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Safety mains socket
- Features
halogen-free
- Connector version
straight
- Nominal voltage
250 V
- Material
Plastic
- Factory colour
Grey
IP20
- For mains outlet
F
- Nominal current
16 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3783219 ABL Sursum 100000062 Safety mains socket Plastic halogen-free 250 V Grey IP20
Security datasheet
Security datasheet 3783219 ABL Sursum 100000062 Safety mains socket Plastic halogen-free 250 V Grey IP20
Security datasheet 3783219 ABL Sursum 100000062 Safety mains socket Plastic halogen-free 250 V Grey IP20
Security datasheet 3783219 ABL Sursum 100000062 Safety mains socket Plastic halogen-free 250 V Grey IP20
Description

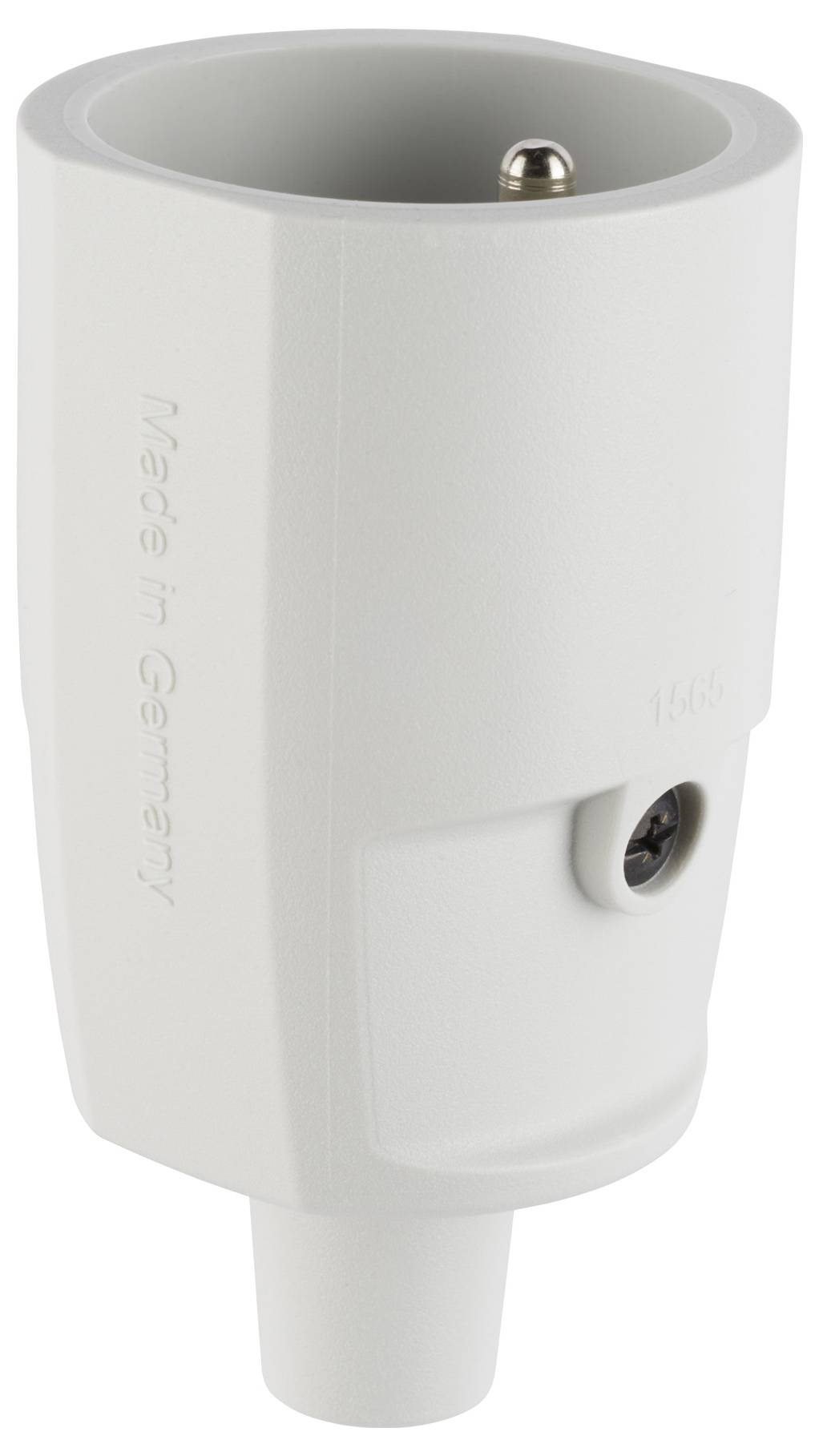

The coupling of the compact product family according to the French-Belgian standard with protection against accidental contact consists of PP and is made in Germany. Product advantages: Cable kink protection. Protection class IP20. Connection space for wires up to 1.5 mm2. Cable diameter from 6.5 - 10.4 mm. Easy and comfortable connection by cap fixing screw. Open connection screws and. One-way screws that can be connected with a single screwdriver. Use Case: For low mechanical strain in dry rooms e.g. in homes and offices.
