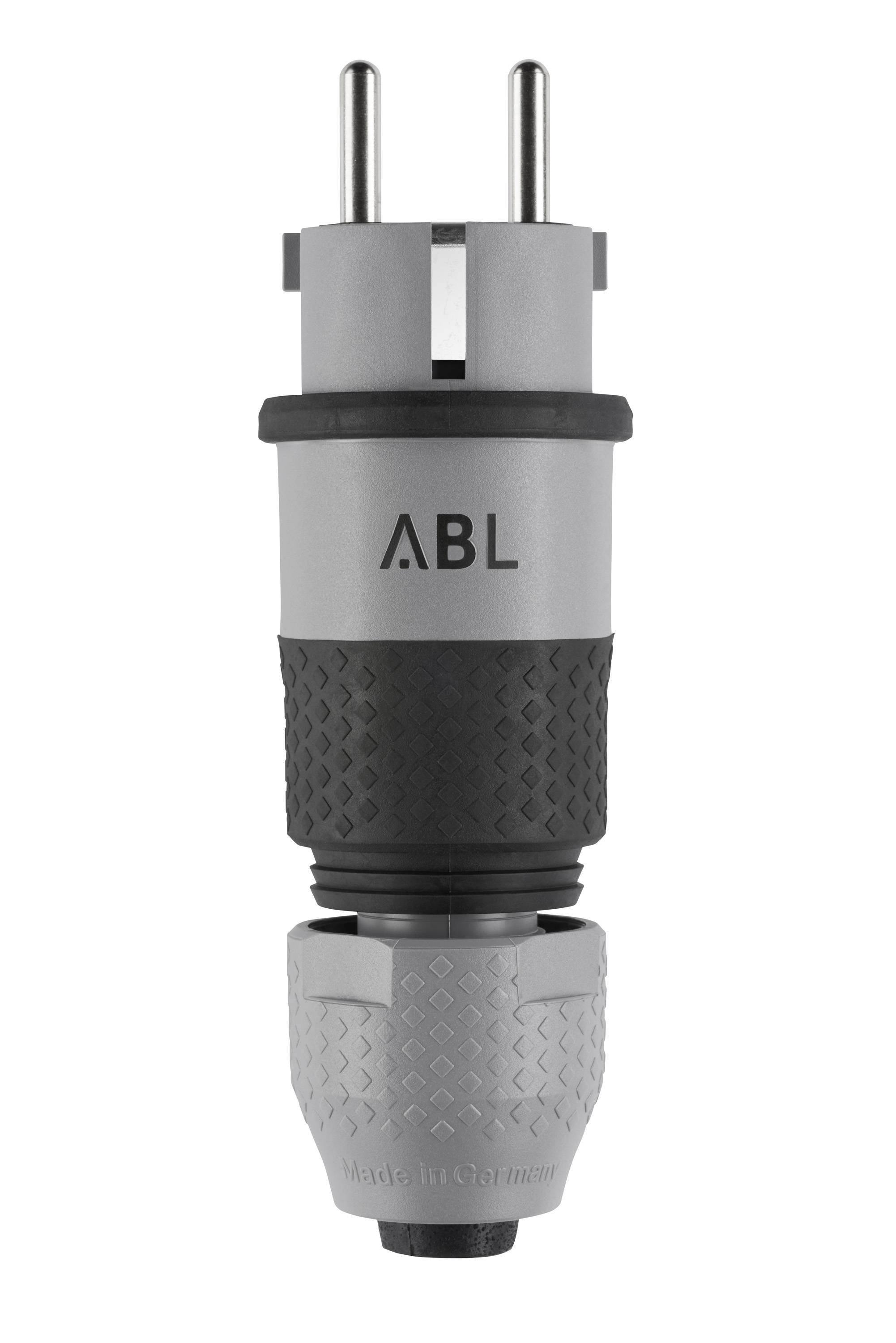

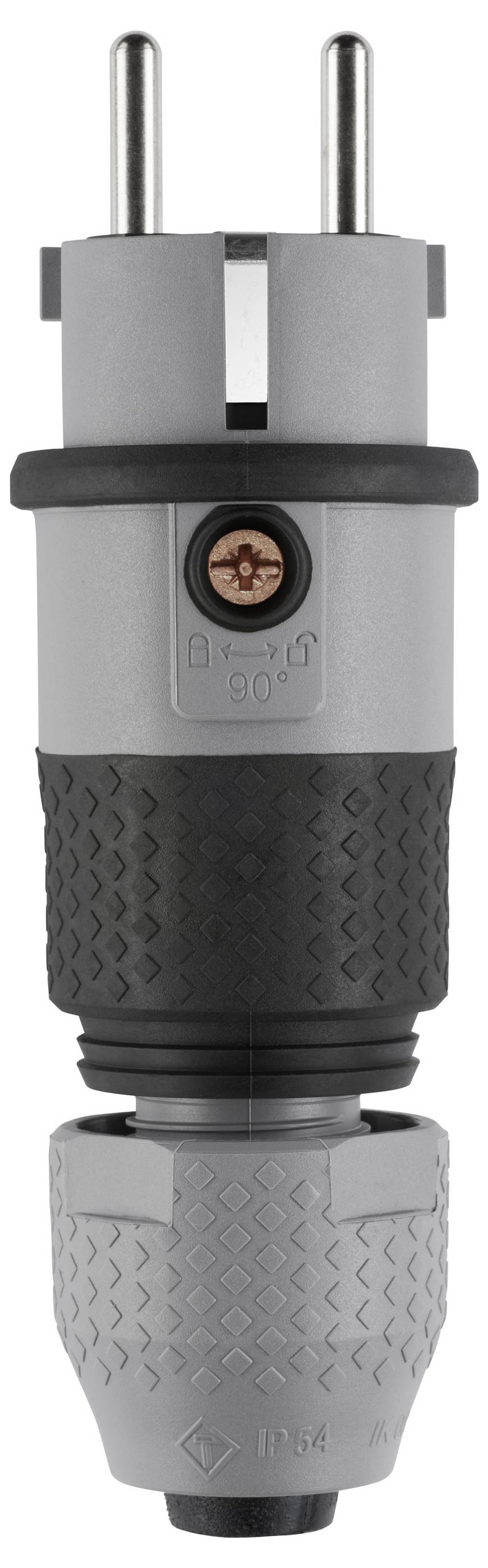

ABL Sursum 100000070 Safety plug Plastic 250 V Grey IP54
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety plug
- Connector version
straight
- Nominal voltage
250 V
- Material
Plastic
- Factory colour
Grey
IP54
- Type
For more difficult conditions
- Mains plug type (on device)
E
F
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3785205 ABL Sursum 100000070 Safety plug Plastic 250 V Grey IP54
User & Safety Instructions
User & Safety Instructions 3785205 ABL Sursum 100000070 Safety plug Plastic 250 V Grey IP54
Description
The plug of the Professional product family is equipped with a double earthing system according to protective contact and French-Belgian standard as well as with the ABL quick release fastener. The connector consists of a combination of Elamid Rubber (TPE) 2K technology and is made in Germany. Product advantages: Resists up to 4 tons of hammer marks. Extremely robust, handy, skid-proof and dimensionally stable. IP54 splash-proof due to screwed-on sealing. ABL quick release mechanism Large connection space for wires up to 2.5 mm2. Cable diameter from 6 - 12 mm. Easy and comfortable connection by cap fixing screw. Open connection screws and. One-way screws that can be connected with a single screwdriver. Use Case: For use under difficult conditions. For highest mechanical load in dry, damp and wet rooms as well as outside e.g. at construction sites and in agricultural locations.
