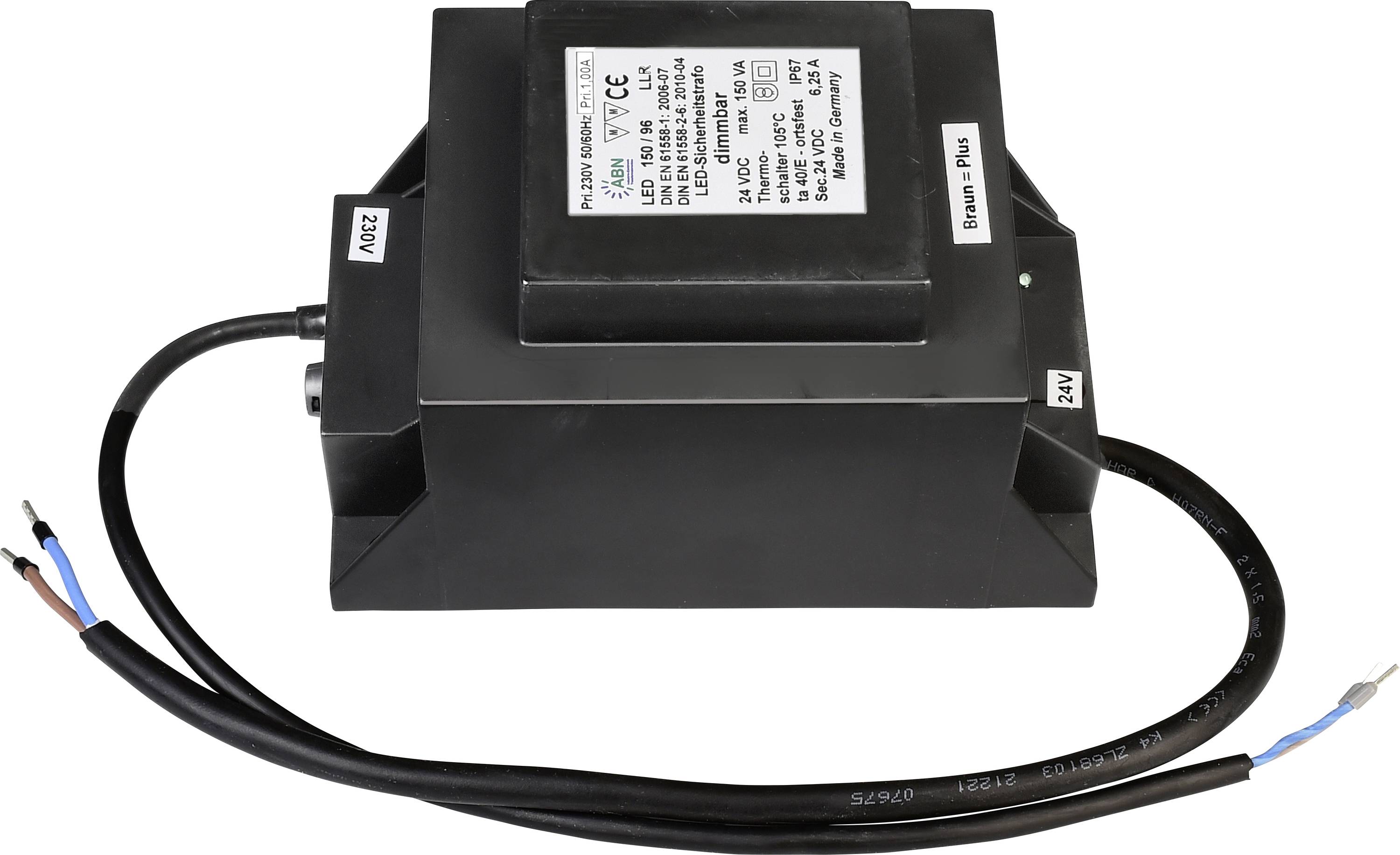

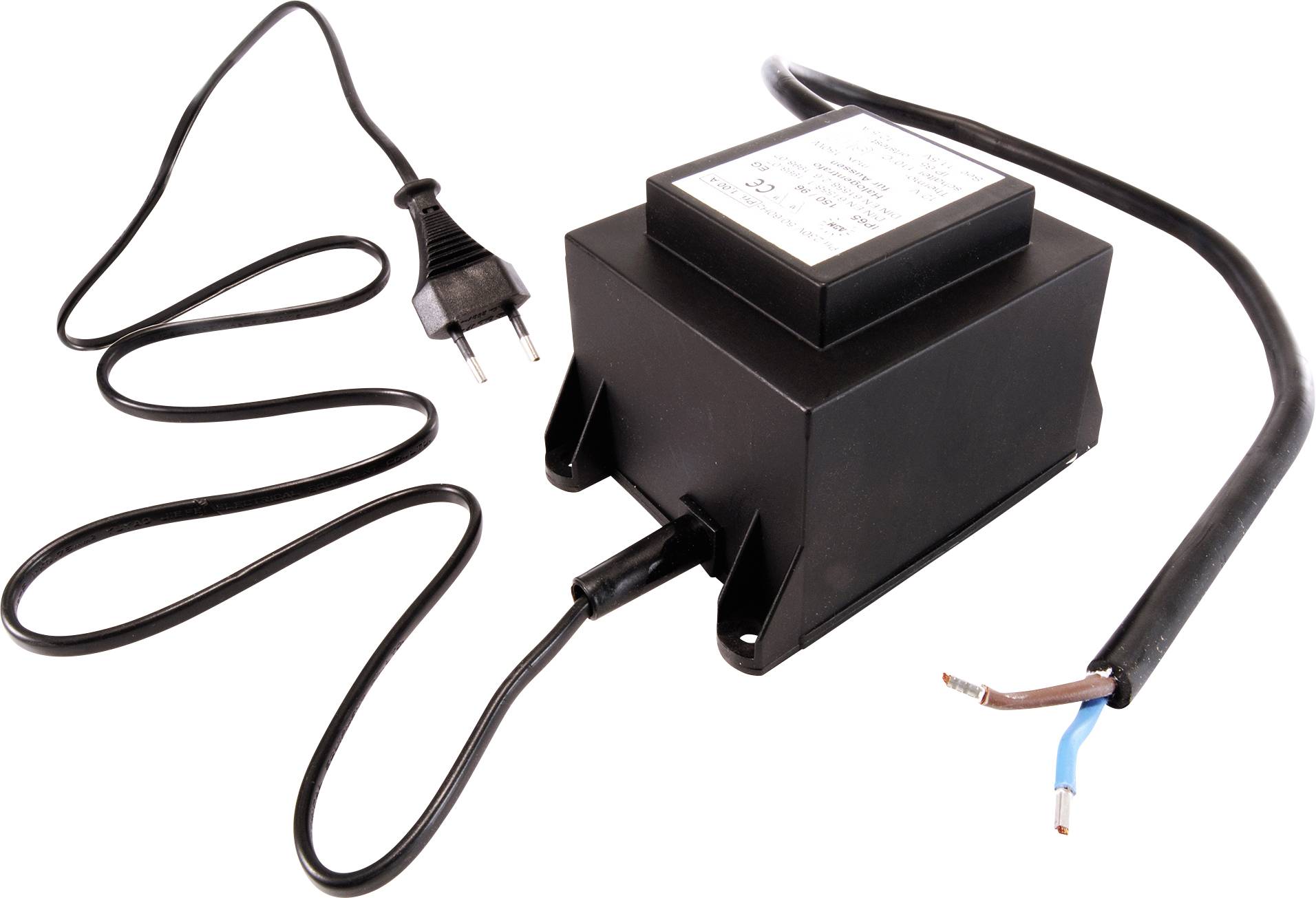

ABN DIM, CV, 11,5V AC, 300 W, IP67 LED transformer Constant voltage 300 W 15000 - 25000 mA 11.5 V AC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DIM, CV, 11,5V AC, 300 W, IP67
- Constant voltage
- 11.5 V AC
- 15000 - 25000 mA
Technical specifications
- Operating mode: Voltage constant
- Output voltage 11.5 V/AC
- Dimmable: Yes
- Control technology: Phase control dimmer
- Number of channels: 1
- Product type
LED transformer
- Type
Constant voltage
- Dim
(W x H x D) 93 x 102 x 130 mm
- Factory colour
Black
- Output voltage (max.)
11.5 V AC
- Output voltage (min.)
11.5 V AC
- Max. output current
25000 mA
- Output current (max.) - rounded
25 A
- Protection class
IP67
- LED driver features
dimmable
IP67
- Max. power
300 W
- No. of outputs
1 x
- Output current (min.)
15000 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power range
300 W (max)
- Width
93 mm
- Height
102 mm
- Depth
130 mm
- Material
Plastic
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3410302 ABN DIM, CV, 11,5V AC, 300 W, IP67 LED transformer Constant voltage 300 W 15000 - 25000 mA 11.5 V AC dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3410302 ABN DIM, CV, 11,5V AC, 300 W, IP67 LED transformer Constant voltage 300 W 15000 - 25000 mA 11.5 V AC dimmable 1 pc(s)
Warranty Terms
Warranty Terms 3410302 ABN DIM, CV, 11,5V AC, 300 W, IP67 LED transformer Constant voltage 300 W 15000 - 25000 mA 11.5 V AC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
