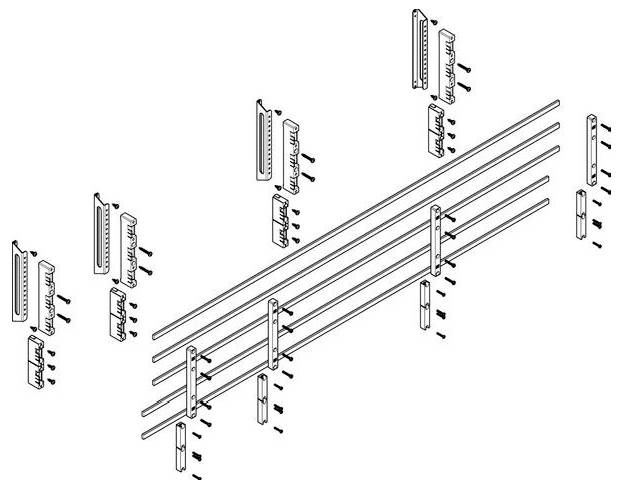

Image similar
ABN MXSC51441 Busbar module 5FB/1RE N/PE with CU 30x5mm, 1-pin, 30° standard Busbar module 1 pc(s)
Product type
Busbar module
Content
1 pc(s)
Width
1246 mm
Height
76 mm
Depth
71 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Busbar module
- Content
1 pc(s)
1246 mm
76 mm
71 mm
FALSE
FALSE
0
0
FALSE
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3458093 ABN MXSC51441 Busbar module 5FB/1RE N/PE with CU 30x5mm, 1-pin, 30° standard Busbar module 1 pc(s)
Description
Bus rail kits with 2 busbar supports,250 1 mm wide,N+PE in front of the support frame (30°) for deep and flat modules with busbar carrier FST601N and console FSK401N,height 150 mm ,rated current (A) 440 (379),copper size L1-185 x5 mm,VPE 1,busbar kits,3 30 mm rail distance for mounting NH-mounting strips,Fully equipped mounting of mounting rails in frame NH-Safety-Fuse-Circuit Breakers NH1-3,NH00 and Busbar Terminals Incl,Bus Rail Carriers and Busbar Consoles with or without pre-assembled copper rails,From 340 630 mm deep housings,Used busbar carrier with 1000 5 A-kits (1-pole):,N: FST901N,PE: FST601N,5-pole
