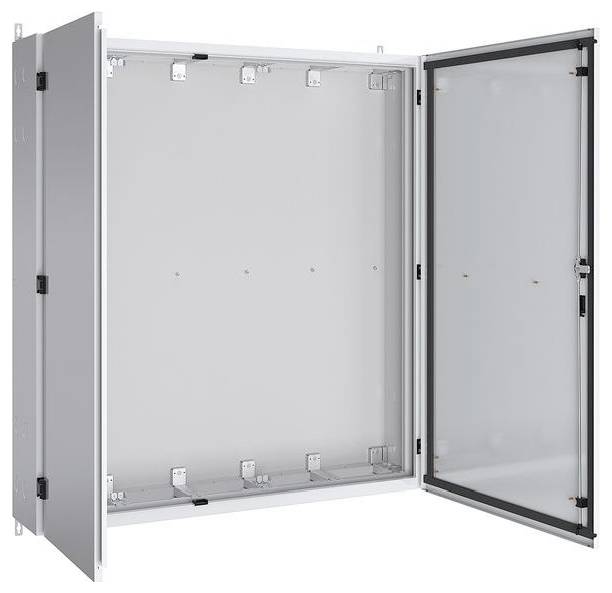

ABN NF59P NF59P Wall-mount enclosure Wall Content 1 pc(s)
Product type
Wall-mount enclosure
Mounting type
Wall
Width
1340 mm
Height
1440 mm
Depth
280 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wall-mount enclosure
- Mounting type
Wall
- Width
1340 mm
- Height
1440 mm
- Dim
(W x H x D) 1340 x 1440 x 280 mm
- Depth
280 mm
- Content
1 pc(s)
Surface mounted (plaster)
II
White
1340 mm
1440 mm
280 mm
9016
FALSE
Powder coating
250 mm
5
Door
1
TRUE
280 mm
Steel plate/plastic
None
144
FALSE
IK10
1
Double
IP55
FALSE
FALSE
TRUE
630 A
1.5 mm
2 mm
None
10
Other
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3458165 ABN NF59P NF59P Wall-mount enclosure Wall Content 1 pc(s)
Description
Wall housing,280mm deep,protectively insulated Y,outer dimensions WxHxT (mm) 1340 48 x 1440 X280,width 5 280 540,height 9 9016,PLE 540,wall housing,280mm deep,protection class II (NF,P series),protection class I (NF,E series),protection class: IP55,For devices up to 630?A,wall mounting with exterior mounting,widths: 340,590,840,1090,1340?mm,heights: 690,990,1140,1290,1440?mm,depth,depth,Colour: Sheet steel,powder-coated,Both sides pre-stamped for housing connections M6 and screwed connection M50,cable insertion plates as desired with metric knockouts,membrane flange or foam rubber plate,can be combined horizontally and vertically ,door lying, right or left-hinged with opening angle 180 61439-1°,3 mm double bit fastener with 3-point rod closure,Prepared for the installation of standard module assemblies,NT/ST carrier profiles or for continuous mounting plates including NGT2,carrier mounting plates NGT2* (VDE0660 Part 600-1),* Note NGTU10N2:,Support frame holders are included as follows:,Field width 1 and 2 (340mm and 590mm)-1 kit,Field width 3 and 4 (840mm and 1090mm)-2 sets,Field width 5 (1340mm)-3 sets,
