ABUS HDCC75550 AHD, Analog, HD-CVI, HD-TVI-CCTV camera 2592 x 1944 p
EAN:
Part number:
Item no:
Highlights & Details

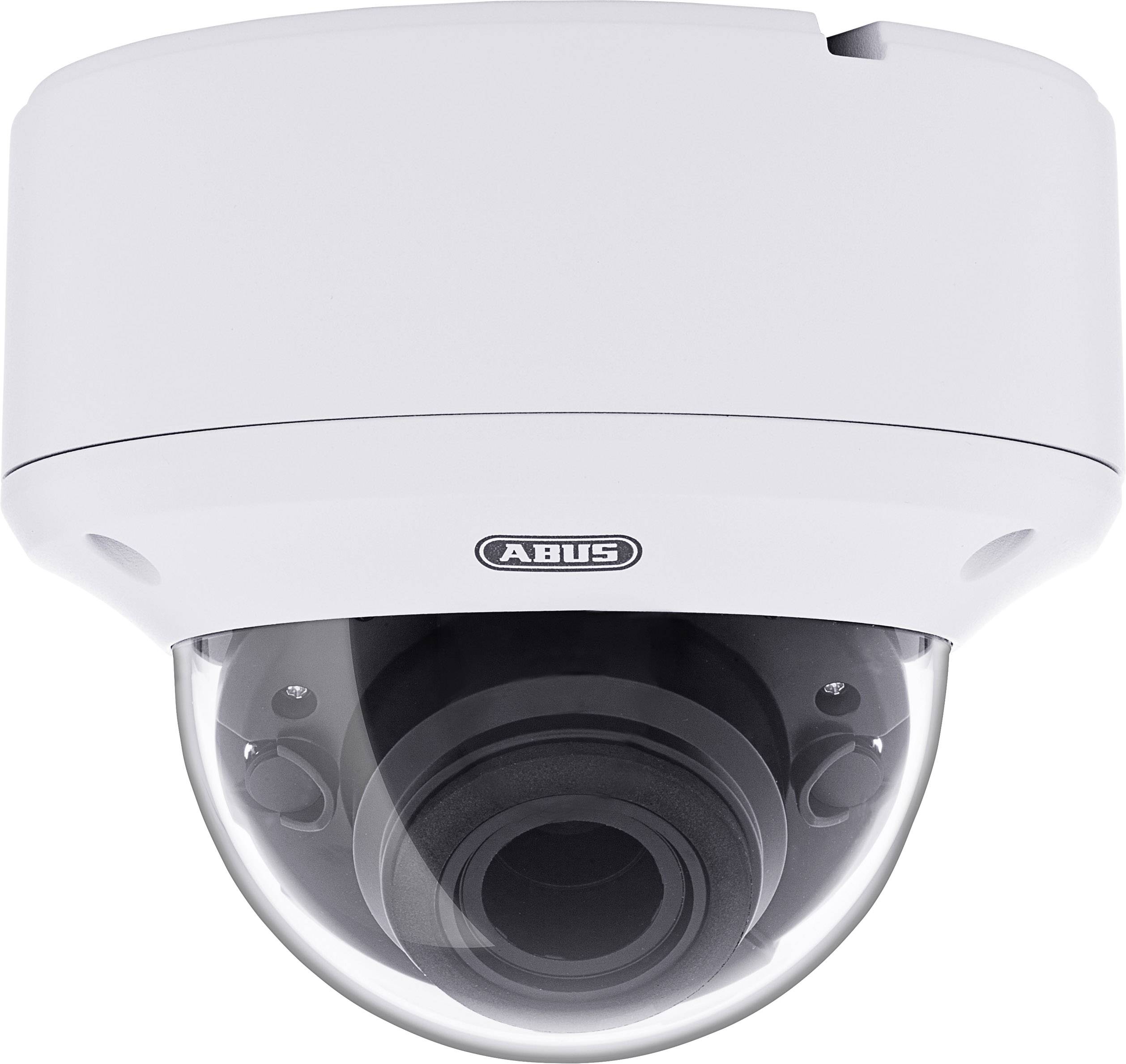

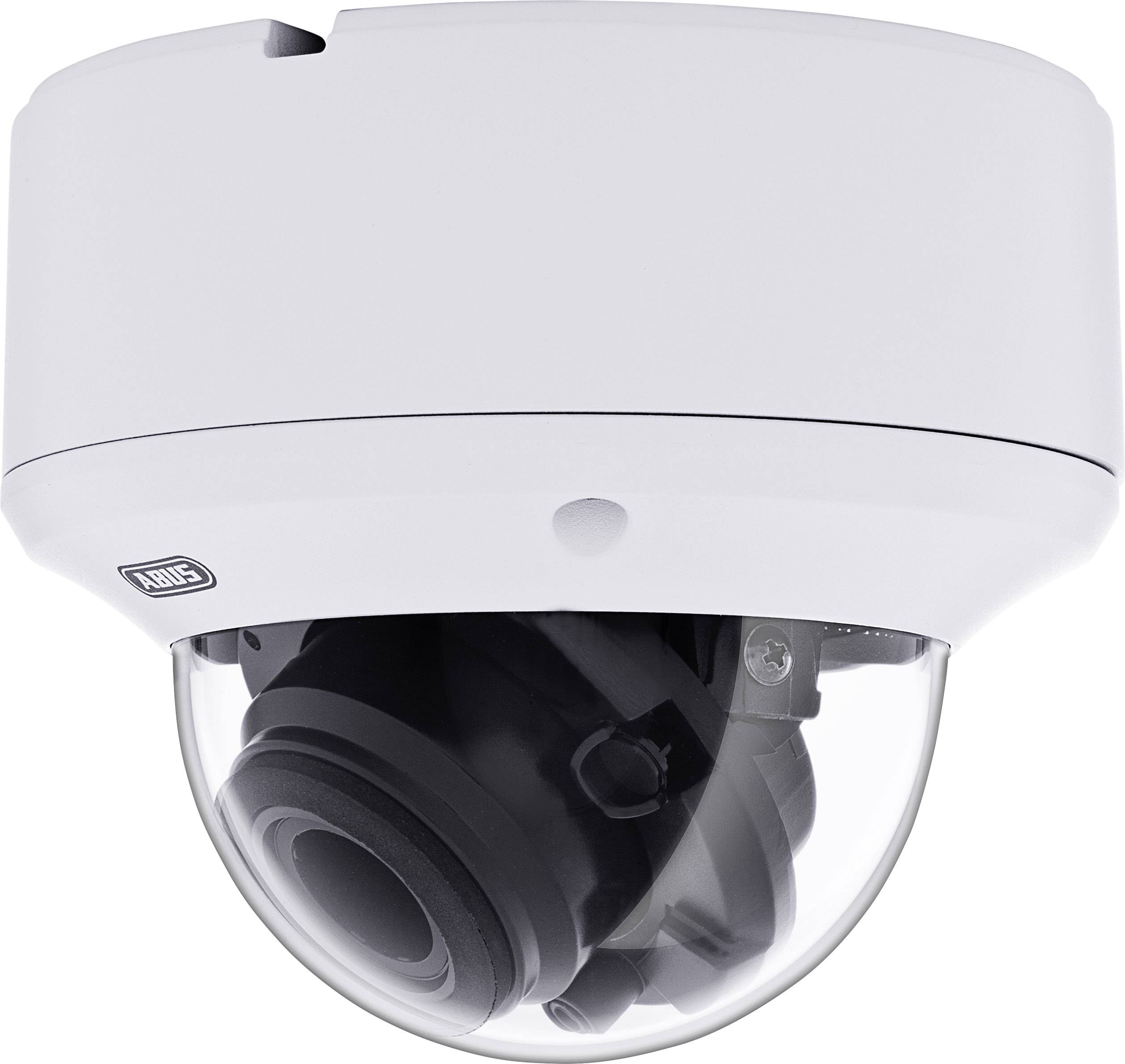

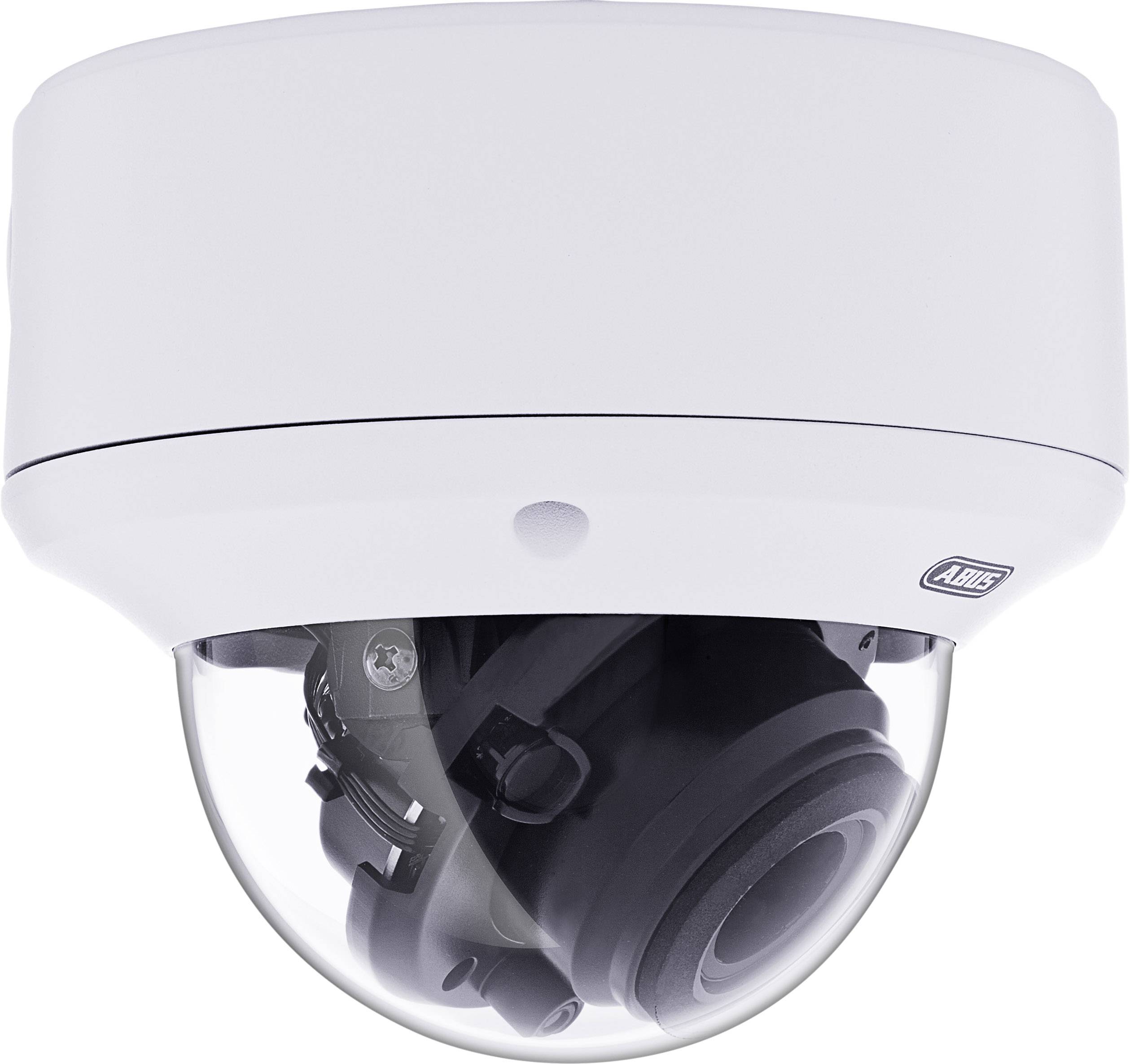

AHD, Analog, HD-CVI, HD-TVI-Dome camera 2592 x 1944 p ABUS HDCC75550, Outdoors
- 5 MPX resolution
- Motorized zoom lens
- Weatherproof IP67
Technical specifications
- Max. Resolution @ Frame rate 2592 x 1944 @ 20 frames/s (50 Hz)/2560 x 1944 @ 20 frames/s (60 Hz)
- Optical zoom 5 x
- VIDEO SYSTEM: HD-TVI, CVI, AHD, FBAS
- Power supply DC: 12 V

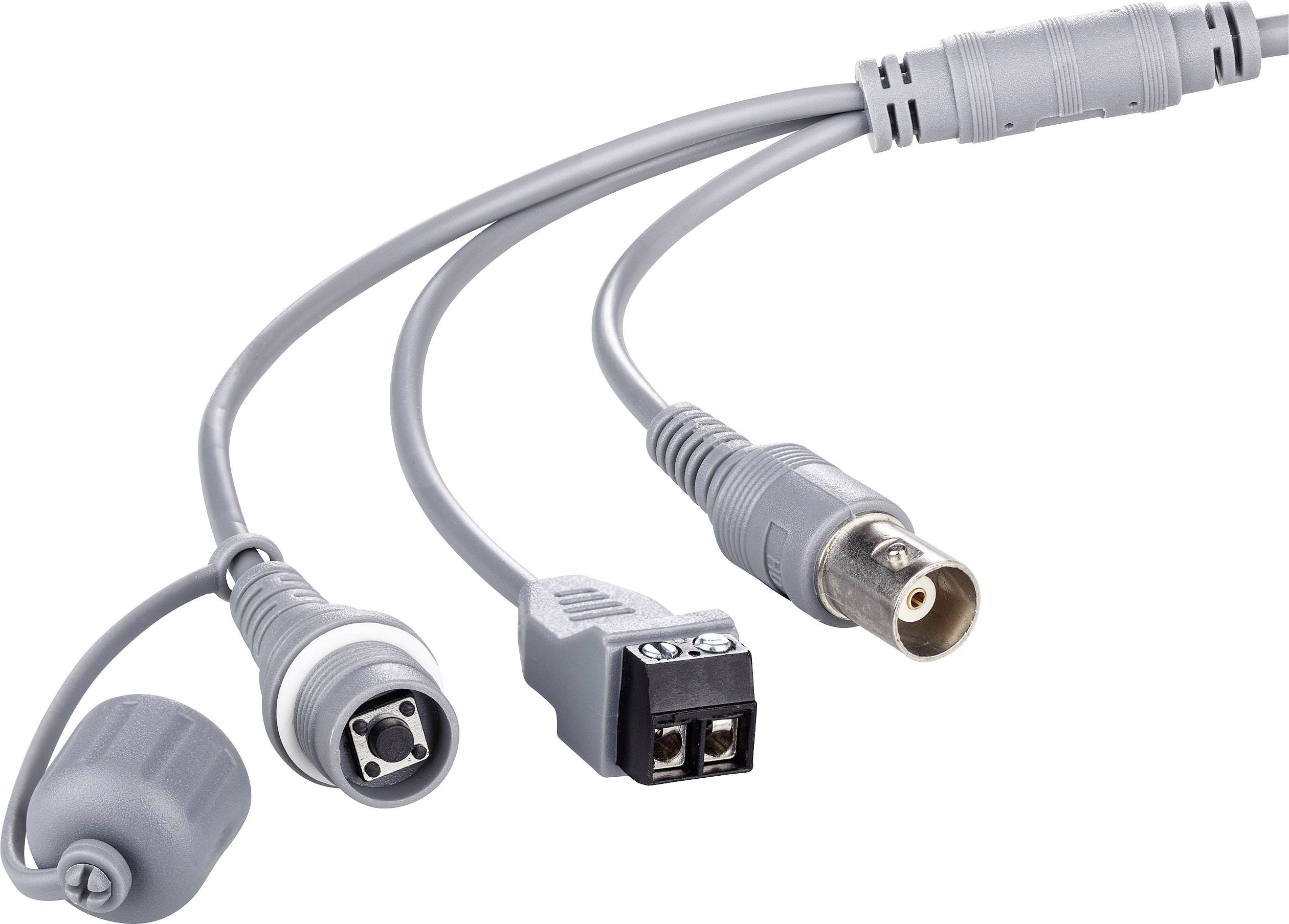

- Connections: "1 x video channel HD-TVI
- 1 x BNC camera output (HD-TVI)"
- App-enabled: Yes
- F-stop: F1.2
- Viewing angle 29 - 92°
- IR additional light: Yes
- Camera type: CCTV camera
- Product type
CCTV camera
- Camera type
Dome camera
- Resolution (max.)
2592 x 1944 p
- Sensor size
8.5 mm (1/3")
- Sensor type
CMOS
- Focal length
2,7 - 13,5 mm
- CCTV features
IR LEDs
Optical zoom
Motorized lens
- Viewing angle
92°
- Signal standard
AHD
Analog
HD-CVI
HD-TVI
- IR range (max.)
40 m
- Used at
Outdoors
IK10
IP67
- Operating temperature
-40 - 60 °C
- Dim
(W x H x D) 145 x 124 x 145 mm
- Width
145 mm
- Height
124 mm
- Depth
145 mm
- Weight
0.000
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1923461 ABUS HDCC75550 AHD, Analog, HD-CVI, HD-TVI-CCTV camera 2592 x 1944 p
Description
ABUS Analogue HD: The same clear images have never been seen before
The Analogue HD Dome 5 MPX for monitoring large areas indoors and outdoors has a high-quality image sensor. And thus offers a pin-sharp and smooth image for better detail recognition.
The Analogue HD Dome 5 MPX with True WDR
A powerful True WDR function ensures even foreground and background scenarios in high-contrast light situations.
24/7 surveillance indoors and outdoors
The automatic day/night switching of the improved IR-LED technology provides for a better picture illumination with changing light conditions. The IP67 protection class makes the Analogue HD Dome robust against wind & weather. Easy to install thanks to the motor zoom lens and large ABUS holder range. The focus of the installed camera takes place comfortably via remote access via recorder and can thus be installed by only one person. The large selection of holders offers flexibility for every installation location.
Analogueue HD technology: Ideal for economical retrofitting
The use of the infrastructure already installed in the object offers flexible options for retrofitting. Simply exchange cameras and recorders and get more performance for existing video surveillance systems. Coaxial cable or 2-wire can easily continue to be used.
This text is machine translated.
The Analogue HD Dome 5 MPX for monitoring large areas indoors and outdoors has a high-quality image sensor. And thus offers a pin-sharp and smooth image for better detail recognition.
The Analogue HD Dome 5 MPX with True WDR
A powerful True WDR function ensures even foreground and background scenarios in high-contrast light situations.
24/7 surveillance indoors and outdoors
The automatic day/night switching of the improved IR-LED technology provides for a better picture illumination with changing light conditions. The IP67 protection class makes the Analogue HD Dome robust against wind & weather. Easy to install thanks to the motor zoom lens and large ABUS holder range. The focus of the installed camera takes place comfortably via remote access via recorder and can thus be installed by only one person. The large selection of holders offers flexibility for every installation location.
Analogueue HD technology: Ideal for economical retrofitting
The use of the infrastructure already installed in the object offers flexible options for retrofitting. Simply exchange cameras and recorders and get more performance for existing video surveillance systems. Coaxial cable or 2-wire can easily continue to be used.
This text is machine translated.
Features
- True WDR - effectively balances light/dark contrasts
- Motion detection, Tripwire Detection and Intrusion Detection via DVR
- Easy installation and focusing via remote access with the motorized zoom lens (2.7 – 13.5 mm)
- Powerful IR LED technology for improved illumination up to 40 m at night
- Weather-protected (IP67) for outdoor use
- 4-in-1 video output (Switchable TVI/AHD/CVI/CVBS)
- Perfect for retrofitting: Transmission via conventional and existing CCTV infrastructure, such as coaxial cable or 2-wire
- Cable lengths of up to 500 m are possible without loss
- A wide range of holders for easy, cost-effective installation.
Scope of delivery
- Camera
- Installation adapter and tool
- Drillhole template
- User manual.
