Name: ABUS IPCS58571A CCTV camera
Brand: ABUS
SKU: 3088900

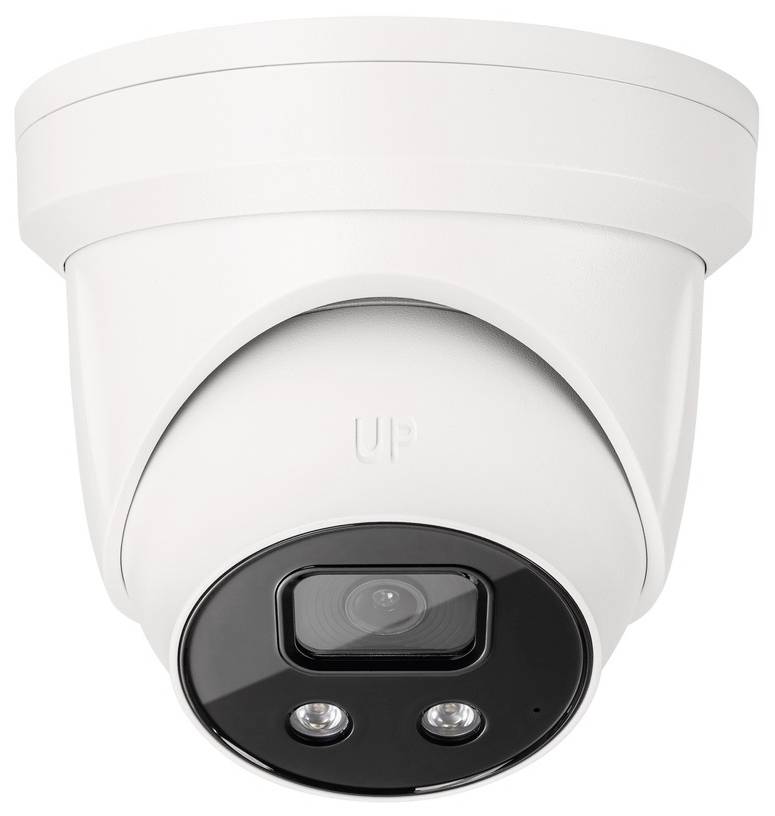

Surveillance camera mounted on the ceiling, with a circular lens and two small lights beneath it, in a minimalist, modern design.

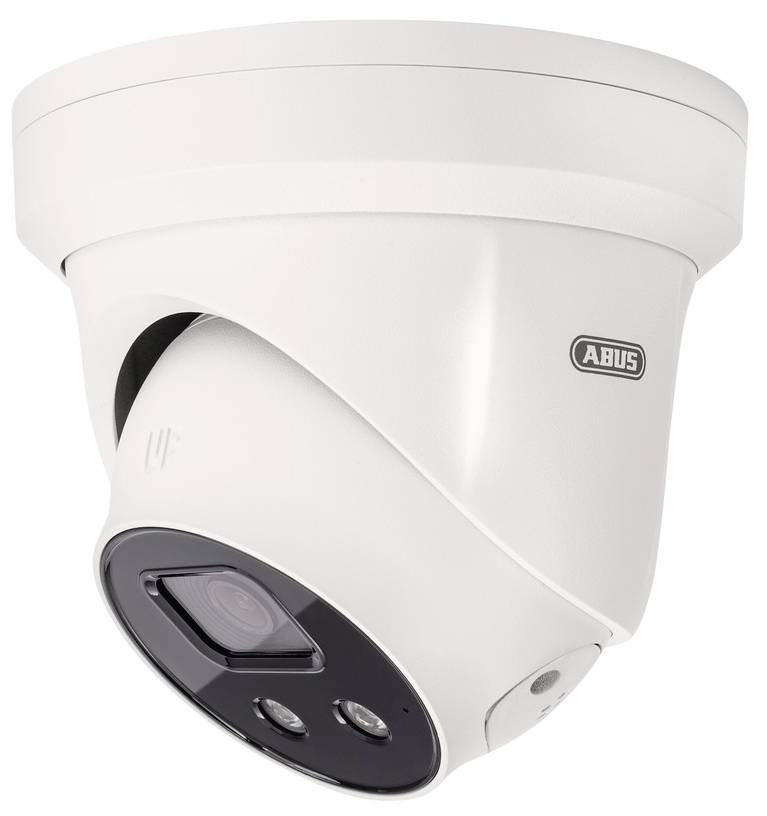

White security camera with a black front area, mounted on the ceiling. It is used for surveillance in buildings or outdoor areas.

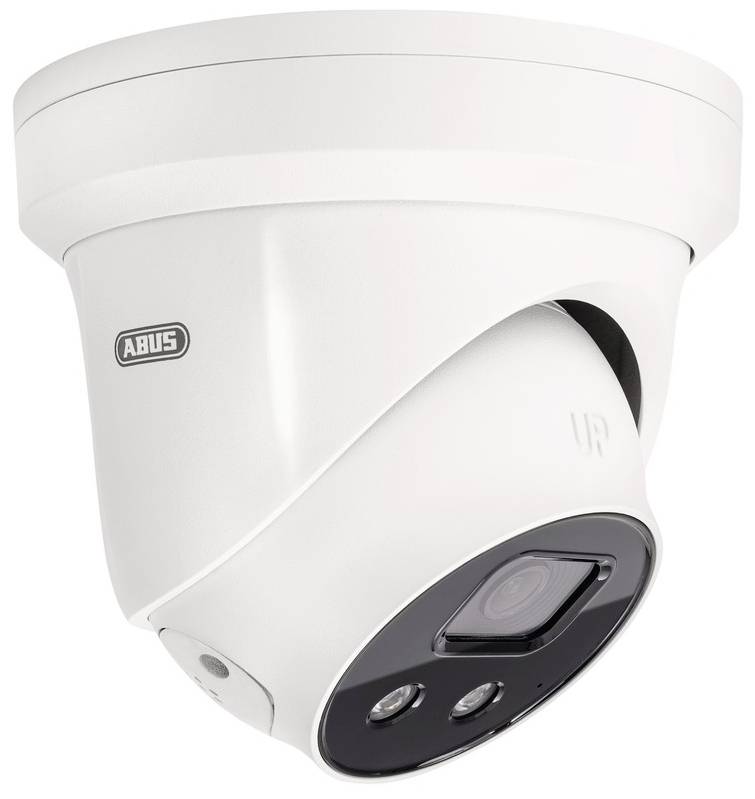

ABUS surveillance camera in white, suitable for indoor or outdoor monitoring. Swivelling lens, infrared LEDs for night vision.

1/3

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ABUS IPCS58571A

8 MPx (4K) resolution
2-way audio with built-in microphone, speaker
Integrated alarm input/output (I/O) for switching scenarios
Intelligent object and precise motion detection

Technical specifications

1 x RJ45, 1 x DC, 1 x Alarm input, 1 x Alarm output, 1 x Audio input, 1 x Audio output (cable length 250 mm)
Number of users: 32
Number of IR LEDs 1
Number of streams: 3
Minimum light (color): 0.003 lx
Aperture at minimum illumination (color): F1.6
Case material: metal
PoE standard IEEE 802.3af
Private zones: 4

Sensor: 1/1.8" Progressive Scan CMOS

Product type: CCTV camera

Series: ABUS Professional

Power supply: PoE (Power over Ethernet)

Dim: (L x W x H) 139 x 139 x 128 mm

App compatibility: Yes

Resolution (max.): 3840 x 2160 p

Viewing angle: 110° horizontal, 59° vertical

Focal length: 2.8 mm

Used at: Outdoors

Weight: 850 g

Factory colour: White

IR coverage: 30 m

Additional IR light: Yes

Camera type: IP camera

Camera type: Dome camera

Microphone: Yes

Width: 139 mm

Height: 128 mm

Length: 139 mm

: IP67

Transfer type: LAN

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3088900 ABUS IPCS58571A CCTV camera

User & Safety Instructions

User & Safety Instructions 3088900 ABUS IPCS58571A CCTV camera

Description

BRILLIANT 8 MPX (4K) MONITORING WITH AUDIO & ALARM
The IP dome is a discreet surveillance camera with 2-WAY audio and alarm function.
8 MPx (4K): Crystal clear 24/7 surveillance
The IP camera delivers ultra-high resolution images in 8 MPx (4K) resolution, IR-LEDs provide excellent picture details during the day and night. The IP67 housing is suitable for outdoor use. Mobile App access at any time.
Automatically Object detection
With intelligent VCA object detection the safety camera distinguishes relevant movements (people / vehicles) from interference (branches, light, etc.) – And minimizes unnecessary motion alarms. This defines incidents (VCA events, e.g. crossing a line) that trigger alarms.
2WAY audio & alarm (siren, LED-flash)
For intercom, offender answer or acoustic alarm notification (voice message, siren). The integrated flashing light turns the alarm camera into a signal transmitter.
Recording and compatibility
The data is saved on a microSD card, ABUS recorder or via VMS software. The dome is compatible with ABUS Secvest, Secoris, WLX Pro.
Comfortable start-up
The IP dome is mounted to the ceiling or by mounting bracket (TVAC32520) on the wall. Recommended: The installation box (TVAC32500). The free software ABUS IP-Installer shortens the start-up in the network.
Note: Without power supply, since power supply via PoE. The effective IR range varies according to the location of use.

This text is machine translated.

Features

2-way audio security camera with built-in microphone, speaker and flash light for intercom, for addressing people and perpetrators, as well as acoustic and visual alarms
Integrated alarm input/output (I/O) for switching scenarios for effective alerting or optimization of operations (e.g. showroom)
Intelligent object detection and precise motion detection with fully automatic distinction between people / vehicles and interference (branches, light, etc.)
8 MPx (4K) Resolution 3,840 x 2,160 @ 25 fps for crisp, ultra-high resolution surveillance images and coverage of a large surveillance area
2.8 mm fixed lens for a good overview (111° field of view) in a robust, weather-protected housing (IP67)
120 dB WDR function to balance image contrasts, strong backlight, etc. for good results in all light situations
Ultra Low Light Performance for excellent picture results in poor lighting
IR LEDs for clear picture results in darkness (up to 30 m range)
Strong image compression (Dynamic GOP, H.265, H.264, MJPEG) for low space requirements
MicroSD card slot for internal data storage
12 V DC & PoE (802.3af)
Digital Zoom

Scope of delivery

1x IP Dome 8 MPx (2.8 mm, LS+WL)
1x quick instructions
1x safety instructions

Hints

Memory card and power supply not included in delivery
