Highlights & Details

ABUS TVHS20120

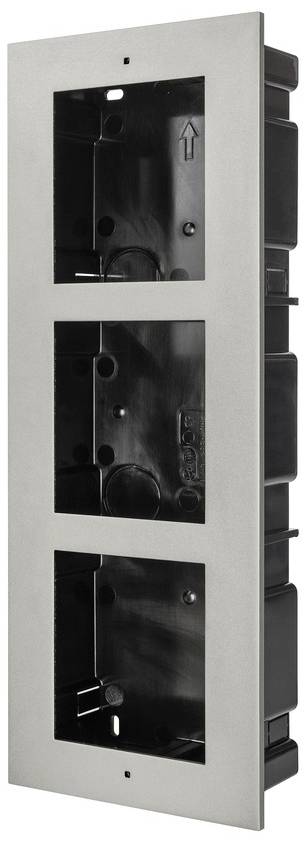

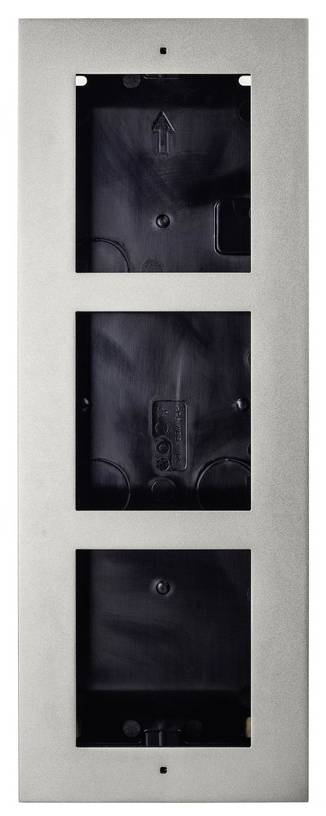

3-gang frame for flush mounting for the intercom system ModuVis
Weather-resistant housing made from anodized aluminum
Including matching flush-mounted socket

Technical specifications

Material: Anodised aluminum/plastic

Product type: Frame

Series: ABUS Professional

Dim: (W x H x D) 124 x 337 x 49 mm

Weight: 0.000

Factory colour: Grey-aluminium (RAL 9007)

Width: 124 mm

Height: 337 mm

Depth: 49 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3088945 ABUS TVHS20120 3fach

User & Safety Instructions

User & Safety Instructions 3088945 ABUS TVHS20120 3fach

Description

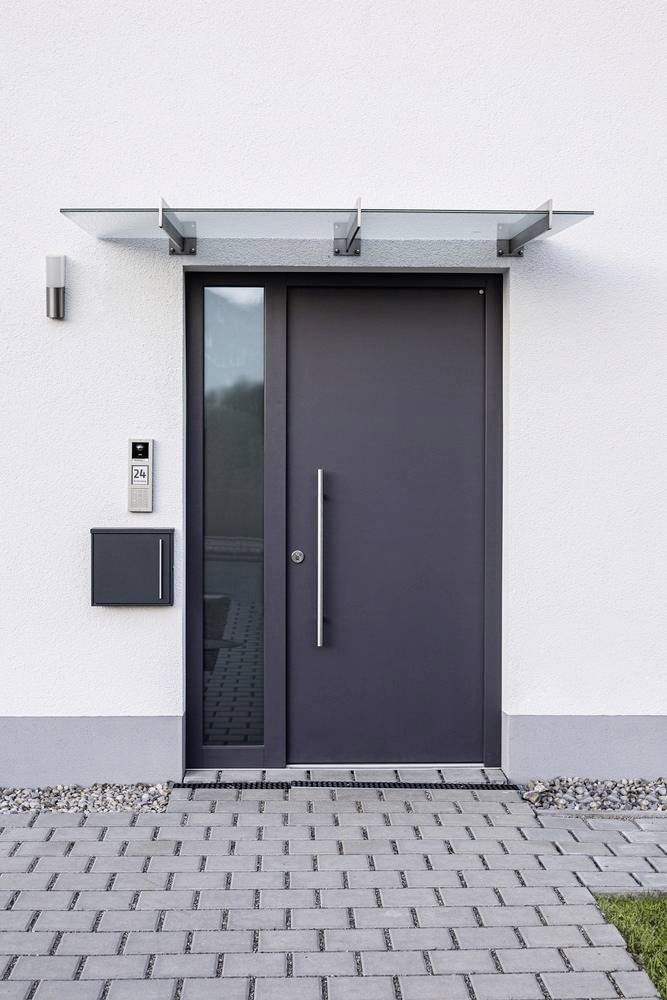

TOTAL MODULAR: THE VIDEO DOOR INTERCOM
See people in front of the door, talk to them, open the door. Modular, adaptable to every building and easy to install – with the respective fitting mounting frame.
Subtly concealed: Your ModuVis installation
For the installation of ModuVis modules (video module, doorbell button module, etc.) you have the choice between surface and flush mounting. And you can select between a 1-way mounting frame (for 1 module), 2-fold and 3-fold frames (for 3 modules). This installation frame is suitable for flush mounting of 3 modules.
Totally modular, extensively expandable
A clear advantage: Depending on the number of apartments and/or Residential areas and local requirements are simply added to the system modules, for example, info module with name plate, bell key module or number keypad for key-free access via PIN code. If 3 modules are selected, the 3-way mounting frame is the first choice. If 3 modules are planned, but not all are set during the initial installation, the 3-way frame can also be selected and the unoccupied part can be covered with an empty module (blind cover).

This text is machine translated.
