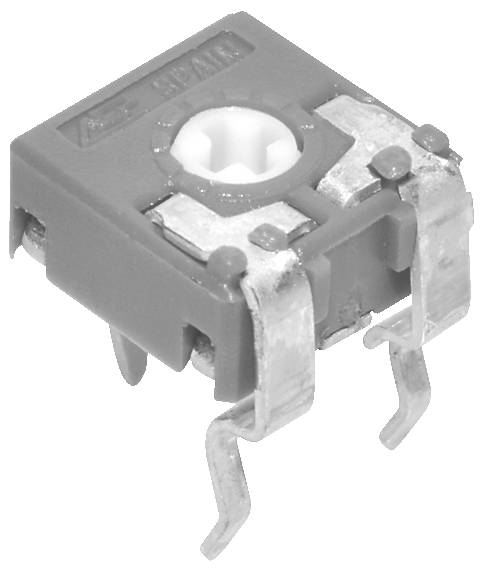

ACP CA6XV05-1KA2020 Carbon film pot Enclosed linear 0.1 W 1 kΩ 215 ° 235 ° 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.18292
50
9% = € 0.02
€ 0.16626
100
13% = € 0.02
€ 0.15961
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.18292 / piece)
€ 0.18
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series CA6
- Design: Horizontal
- Axle: Crosshead
- Resistance value 1 kOhm
- Resistance unit: KOhm
- Resistance value_1: 1
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.1 W
- Max voltage 100 V
- Confirmation: From above
- Mechanical rotation angle 235 °
- Electrical angle of rotation 215 °
- Stop strength 4 Ncm
- Torque 2 Ncm
- Potentiometer features
Enclosed
- Resistance
1 kΩ
- Resistance characteristic
linear
- Power rating
0.1 W
- Cut-off voltage
100 V
- Electrical angle
215°
- Mechanical angle
235°
- Operation type
top
- Tolerance ±
20 %
- Width
6.5 mm
- Height
8.2 mm
- CS
5 mm
- Dim
(L x W x H) 6.5 x 6.5 x 8.2 mm
- Content
1 pc(s)
- Type
CA6XV05-1KA2020
- RoHS-compliant
Yes
- Length
6.5 mm
- Outside Ø
6 mm
- Product type
Carbon film pot
Documents & Downloads
Datasheet
Datasheet 3523308 ACP CA6XV05-1KA2020 Carbon film pot Enclosed linear 0.1 W 1 kΩ 215 ° 235 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523308 ACP CA6XV05-1KA2020 Carbon film pot Enclosed linear 0.1 W 1 kΩ 215 ° 235 ° 1 pc(s)
Description
Application: 6mm potentiometers are mainly used in trim applications in different markets:
• Industry: Timers and relays, dimmers, power control
• Electronic equipment: Volume control, temperature control and function selection
• Automotive: Lighting control, dimmer
• Measuring and testing devices
Telecommunications equipment (antenna amplifier and receiver, video communication, intercom)
• Alarm systems
This text is machine translated.
• Industry: Timers and relays, dimmers, power control
• Electronic equipment: Volume control, temperature control and function selection
• Automotive: Lighting control, dimmer
• Measuring and testing devices
Telecommunications equipment (antenna amplifier and receiver, video communication, intercom)
• Alarm systems
This text is machine translated.
Features
- • Resistance element made of plastic carbon film via highly flexible conductive film (carbon film trimmer)
- • Resistant to moisture and mechanical stress
- • Fully enclosed housing prevents the penetration of dust, rosin or other harmful substances
- • Metal parts made of non-ferrous metals prevent oxidation and increase the solderability
- • Very good contact between connections and substrate reduces the contact resistance
- • Used plastics are resistant to cleaning solutions and flame resistant according to flammability class HB according to UL94
- • Very soft, smooth running of the slider across the entire track
- • Rectangular shape allows automatic insertion
- • Double-contact sander in central position in delivery status
- • The pointer position can be read on the printed scale
