Buy Piher PT15LV02-252A2020-S Trimming Potentiometer, Horizontal

A round, black potentiometer with three metal pins for electrical circuits.

Image similar

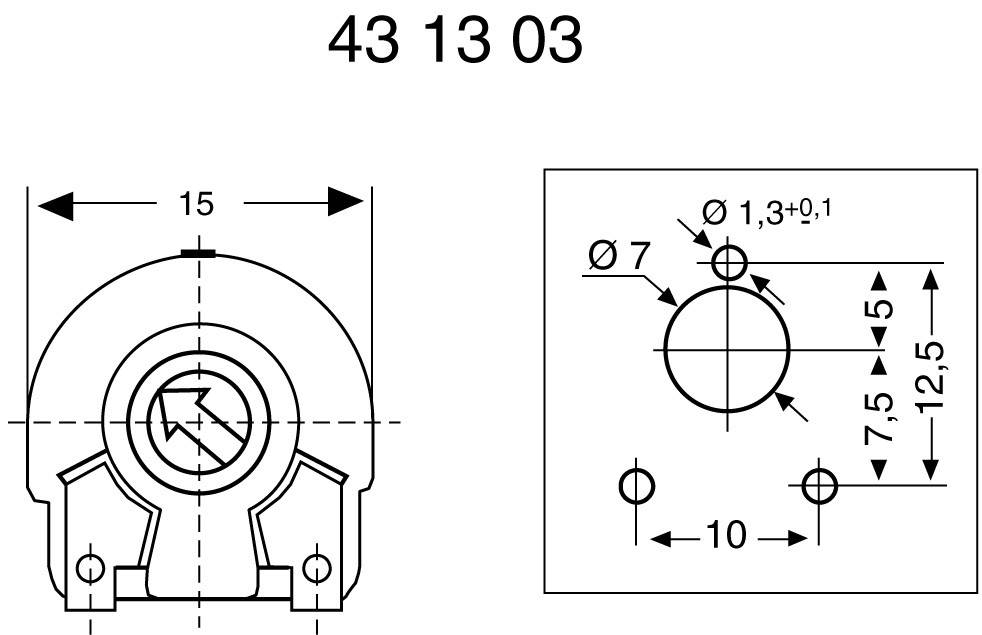

Technical drawing of a fastening element with dimensions: left front view, right top view. Dimensions given in millimetres.

1/2

Image similar

Product type

Trimmer

Resistance

2.5 kΩ

Resistance characteristic

linear

Power rating

0.25 W

Mechanical angle

270 °

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

694 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.48 / piece)

€ 3.36

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Piher PT15LV02-252A2020-S Trimming Potentiometer, Horizontal

Our service for you

Technical specifications

Product type: Trimmer

Resistance: 2.5 kΩ

Resistance characteristic: linear

Power rating: 0.25 W

Cut-off voltage: 250 V

Electrical angle: 250°

Mechanical angle: 270°

Connection: Print

Operation type: top

Min. temperature: -25 °C

Max. temperature: +70 °C

Tolerance ±: 30 %

CS: 10 mm
12.5 mm

Content: 1 pc(s)

Type: PT15LV02-252A2020-S

RoHS-compliant: Yes

Outside Ø: 15 mm

Temperature range: -25 - +70 °C

Documents & Downloads

Datasheet

Datasheet 431346 Piher PT15LV02-252A2020-S Trimming Potentiometer, Horizontal

User & Safety Instructions

User & Safety Instructions 431346 Piher PT15LV02-252A2020-S Trimming Potentiometer, Horizontal
