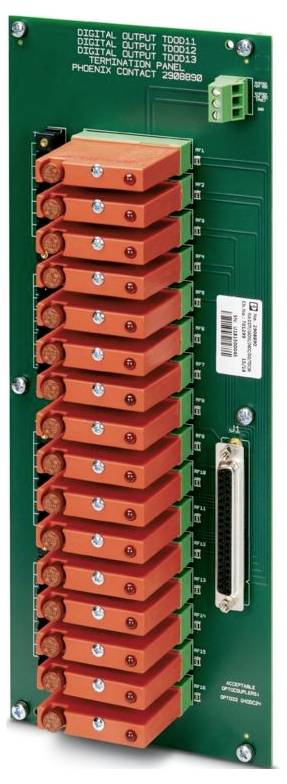

Active unit Phoenix Contact 2908890 FLX-D37F/16OSC/24DC/DO/TDC3K Content: 1 pc(s)
Product type
Active unit
Total no. of pins
37
Connection
D-SUB 37
Mounting type
TDC3000 Chassis
Dim
(L x W x H) 73.1 x 307.3 x 120.7 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 37
- Connection type: Pluggable
- Width: 307.3 mm
- Height: 120.7 mm
- Depth: 73.1 mm
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 75 °C
- Altitude: < 2000 meters
- Mounting type: TDC3000-Chassis
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): < 90%
- All mounting positions permitted
- Note on operation: For the intended use, the requirements of the installation guideline (see downloads) must be observed. In the case of applications or use with third-party products, the requirements, safety and warning notices of the respective third-party manufacturer must also be met.
- Input voltage range: 19.5 V DC ... 32 V DC
- Switching voltage maximum 60 V DC
- NOMINAL INPUT VOLTAGE UN 24 V DC
- Typical input current at UN 18 mA
- Continuous current 1.25 A
- Switching: Switching
- Status display available: Yes
- Typical response time 100 µs
- Typical fall-back time: 750 µs
- Number of connections: 1
- Suitable I/O-card: TDOD11;TDOD12;TDOD13
- Field level: Field level
- Control level: Control level
- Error detection (wire break/short circuit): No.
- Supported control: HONEYWELL TDC3000: Supported controller: HONEYWELL TDC3000
- Product type
Active unit
- Total no. of pins
37
- Connection
D-SUB 37
- Mounting type
TDC3000 Chassis
- Dim
(L x W x H) 73.1 x 307.3 x 120.7 mm
- Content
1 pc(s)
- Number of pins
37
- Width
307.3 mm
- Height
120.7 mm
- Length
73.1 mm
- Depth
73.1 mm
- Test current
0.018 A
- Rated voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580102 Active unit Phoenix Contact 2908890 FLX-D37F/16OSC/24DC/DO/TDC3K Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3580102 Active unit Phoenix Contact 2908890 FLX-D37F/16OSC/24DC/DO/TDC3K Content: 1 pc(s)
Description
Transfer module for converting TDC3000 to modern control platforms, digital output, 16 channels, SSR
