Name: ACV 381170-05 Car stereo bracket
Brand: ACV
SKU: 3595022
Availability: InStock

Exploded view of a car stereo dash installation kit, showing the front frame, brackets, mounting plates, and trim pieces.<br>

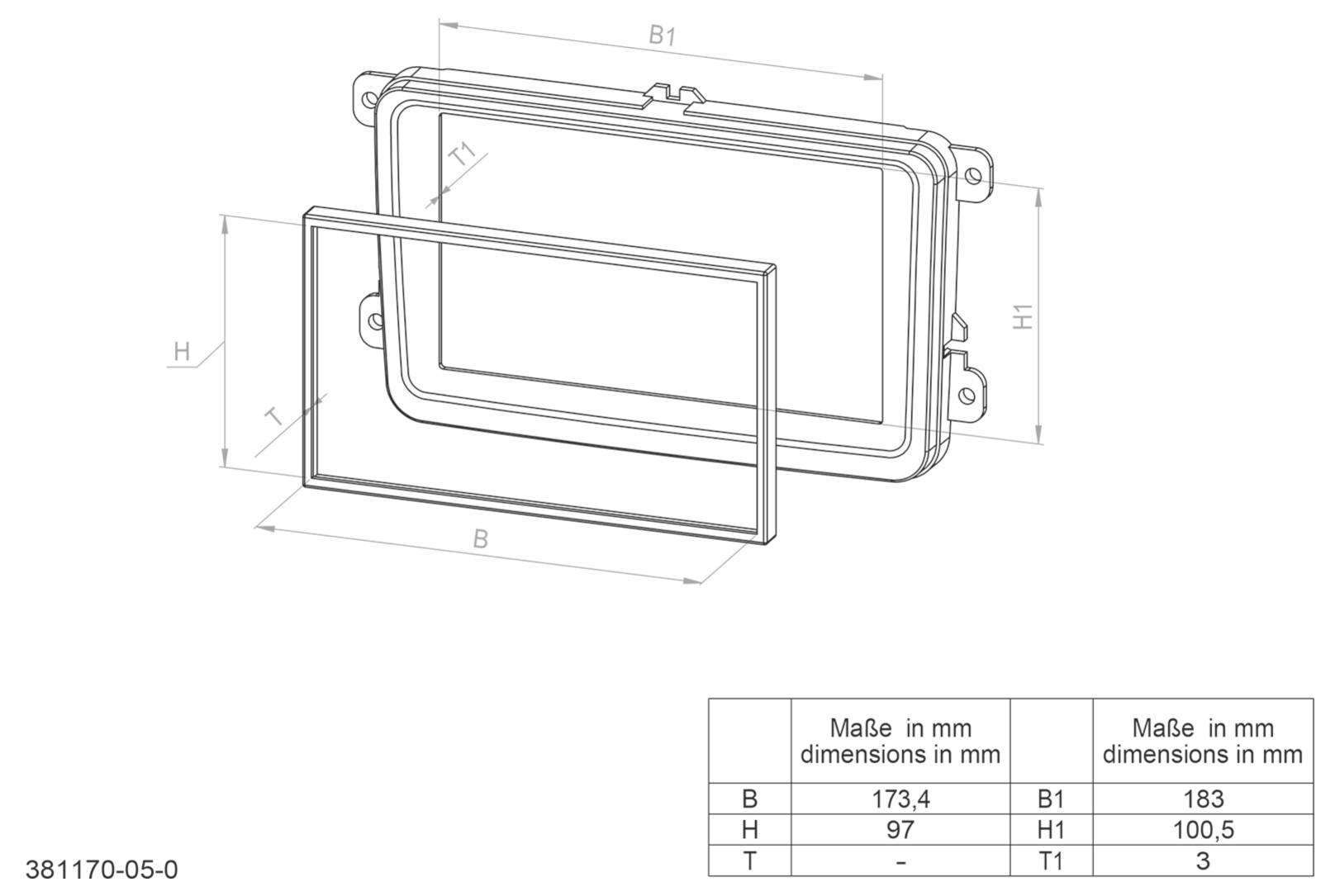

Technical drawing of a rectangular enclosure with lid and frame, showing dimensions B 173.4 mm, H 97 mm, B1 183 mm, H1 100.5 mm, and T1 3 mm.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ACV 381170-05 installation frame for car radios, 173.4 x 97 mm, single DIN/2 DIN, steel

The 2-DIN panel is optimally designed for double the car radio and ensures a clean installation opening in the dashboard. The vehicle-specific contouring corresponds to the profile of the dashboard in the Mazda MX-5 NC, WAS simplifies the installation and reduces the gap dimensions. The black surface ensures a uniform appearance with the factory interior trim and contributes to the optical integration after installation. The compact dimensions of the front panel allow a secure mounting and a stable seating of the new radio while driving.

Technical specifications

Product type: Car stereo bracket

Factory colour: Black

Width: 173.4 mm

Length: 97 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3595022 ACV 381170-05 Car stereo bracket

Description

This installation frame for car radios is a specially developed adapter for the installation of double DIN car radios in compatible Mazda models. It serves as a mounting surface that covers the original radio opening and offers a standard 2-DIN opening for the new radio. This allows electricians or fitters to secure the device and align it flush with the front panel. During installation, the frame adapts to the contours of the dashboard of the MX-5 NC platform and securely fixes the car radio, ensuring correct alignment and sufficient space for operating elements and cables. Typical application areas are the retrofitting of Mazda Miata vehicles from the middle of the 2000s, in which the factory radio is replaced by a standard double DIN car radio.

This text is machine translated.
