Name: ACV 381170-12 Car stereo bracket
Brand: ACV
SKU: 3595023
Price: 61.99 EUR
Availability: InStock

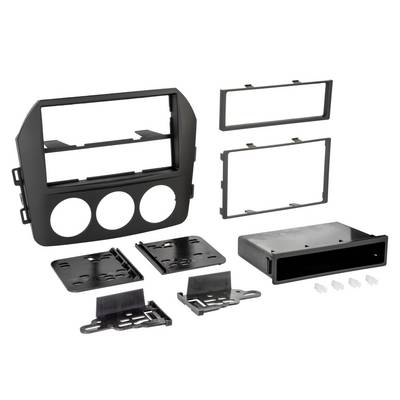

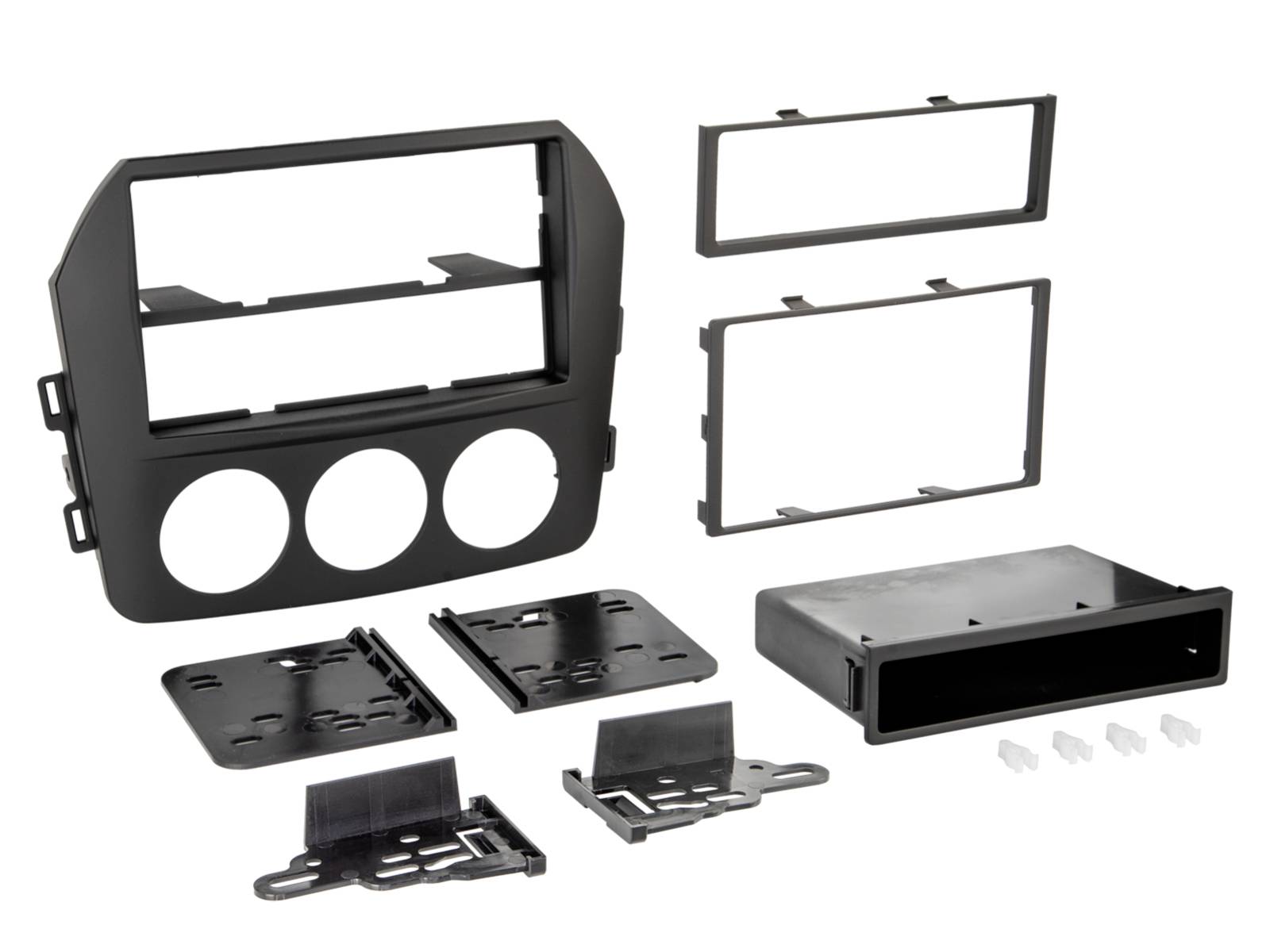

Disassembled black car stereo dash kit with mounting frames, three circular gauge openings, plates, brackets, and a single-DIN radio sleeve.

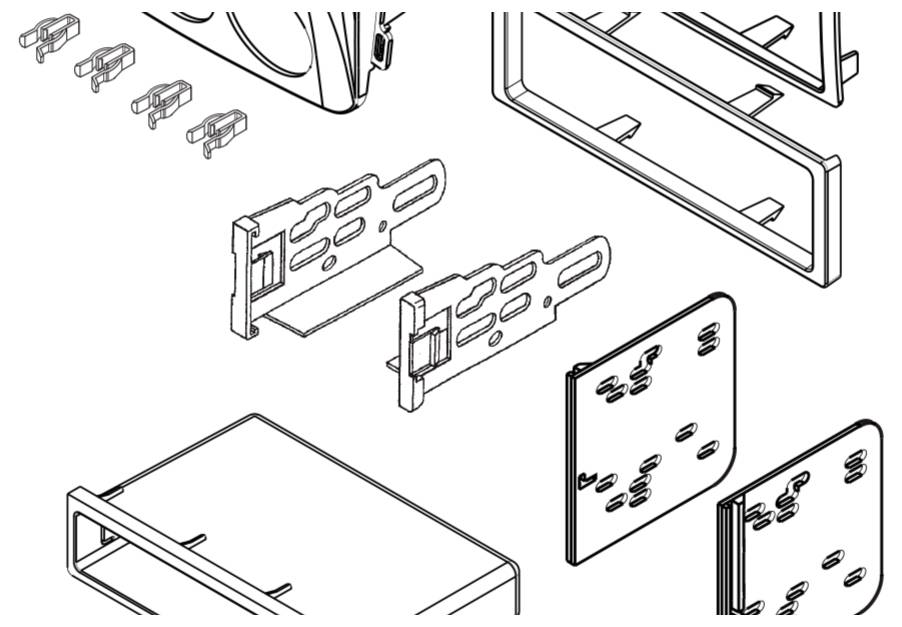

Exploded technical diagram of metal mounting brackets and plates with slots and tabs, showing assembly parts and alignment for installation.<br>

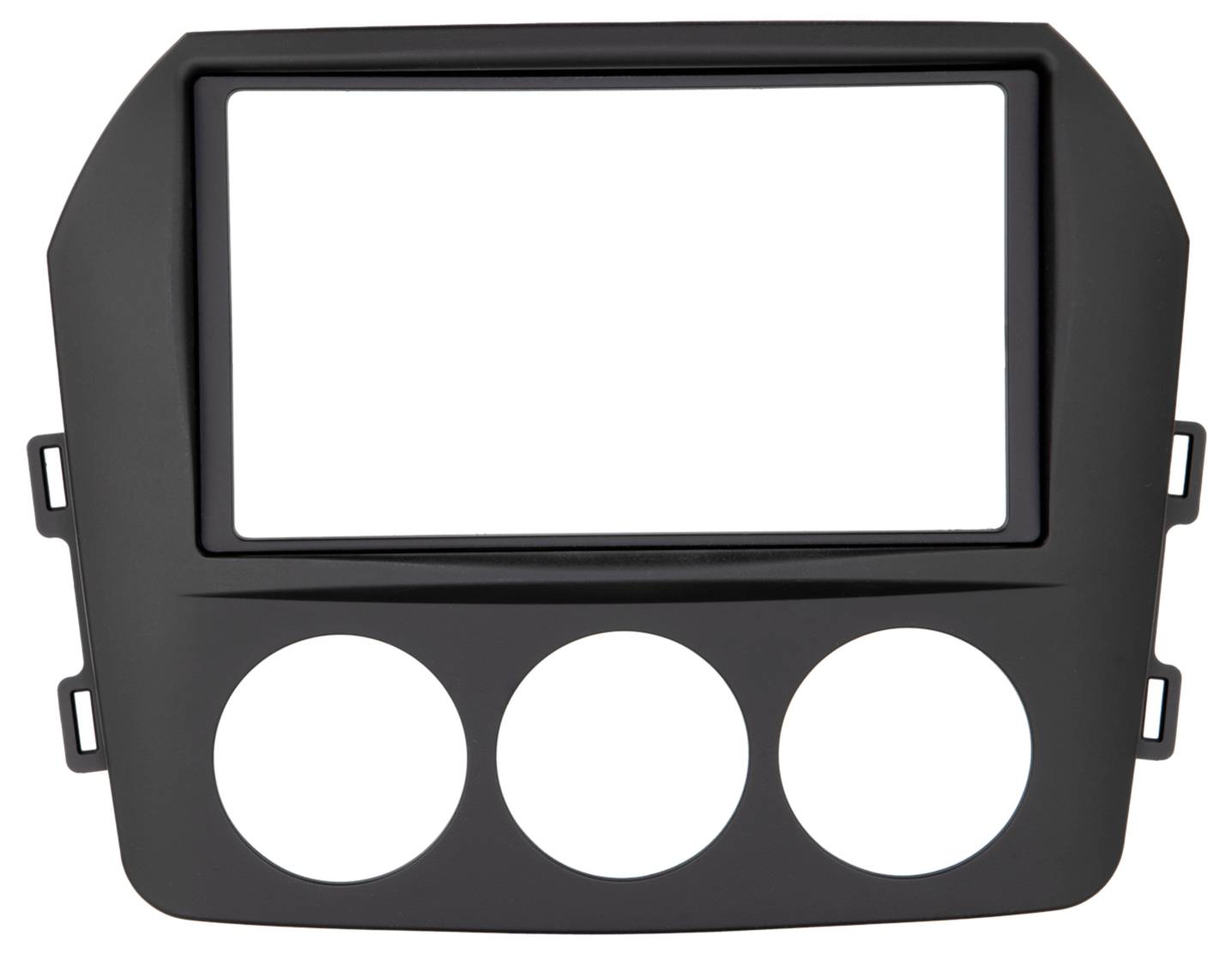

Black dashboard faceplate with one large rectangular screen opening and three circular gauge cutouts below.

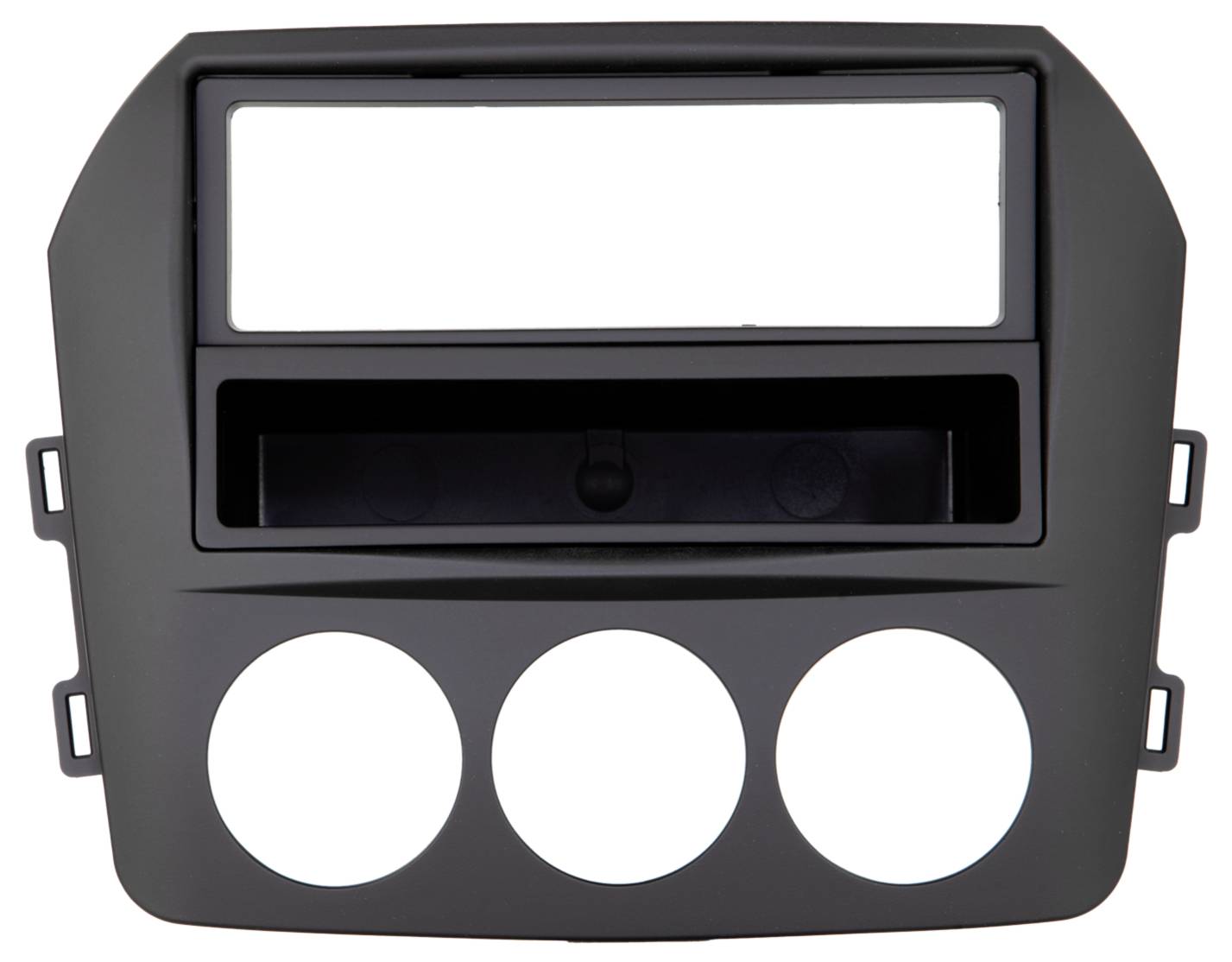

Black dashboard panel with one wide rectangular opening at top, one central slot below, and three circular cutouts along the bottom.

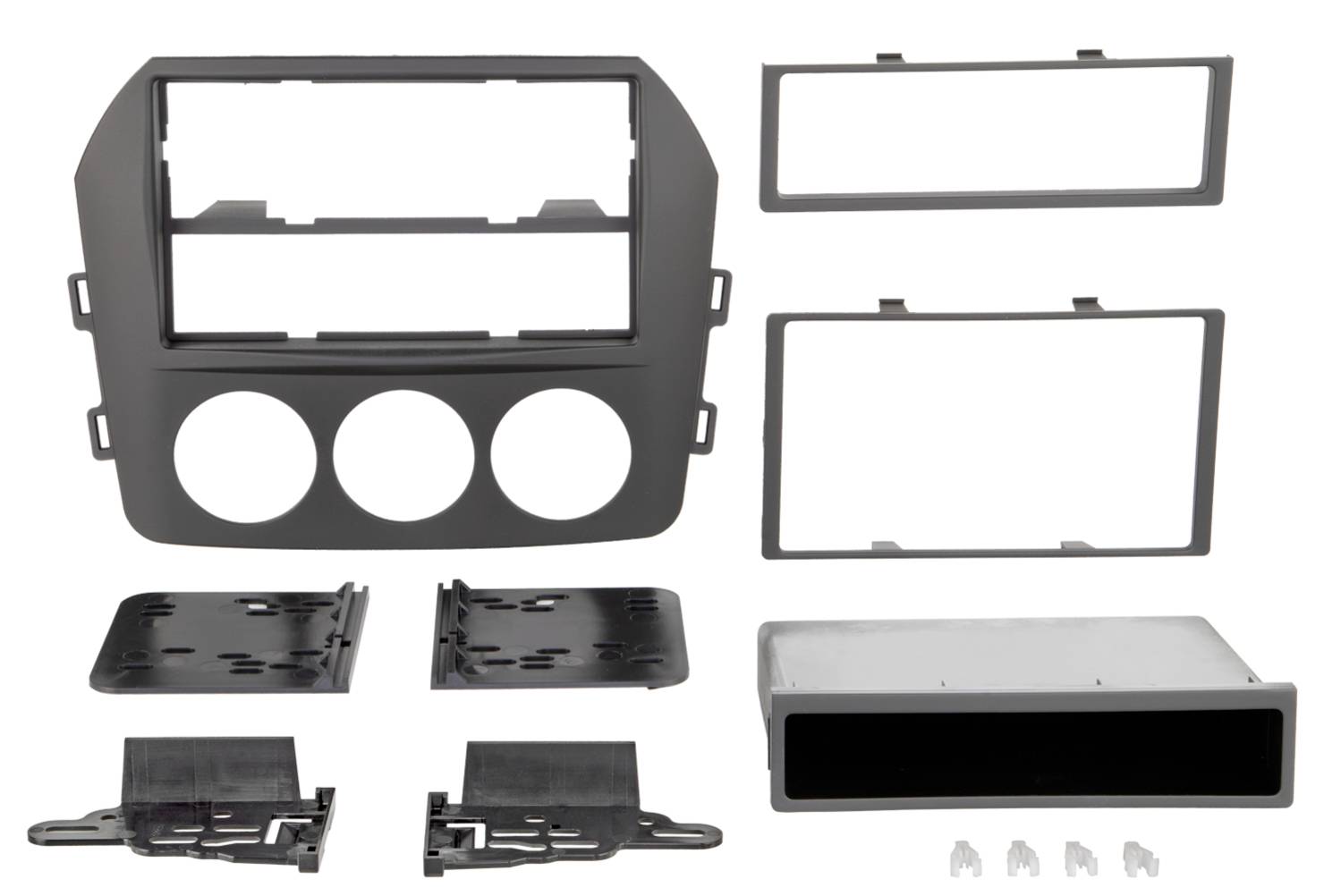

Car dashboard stereo installation kit with a large trim bezel, two faceplate adapters, mounting brackets, and a rectangular radio unit.

Side and front views of a rectangular wall electrical outlet or connector module with metal mounting tabs and terminals.<br>

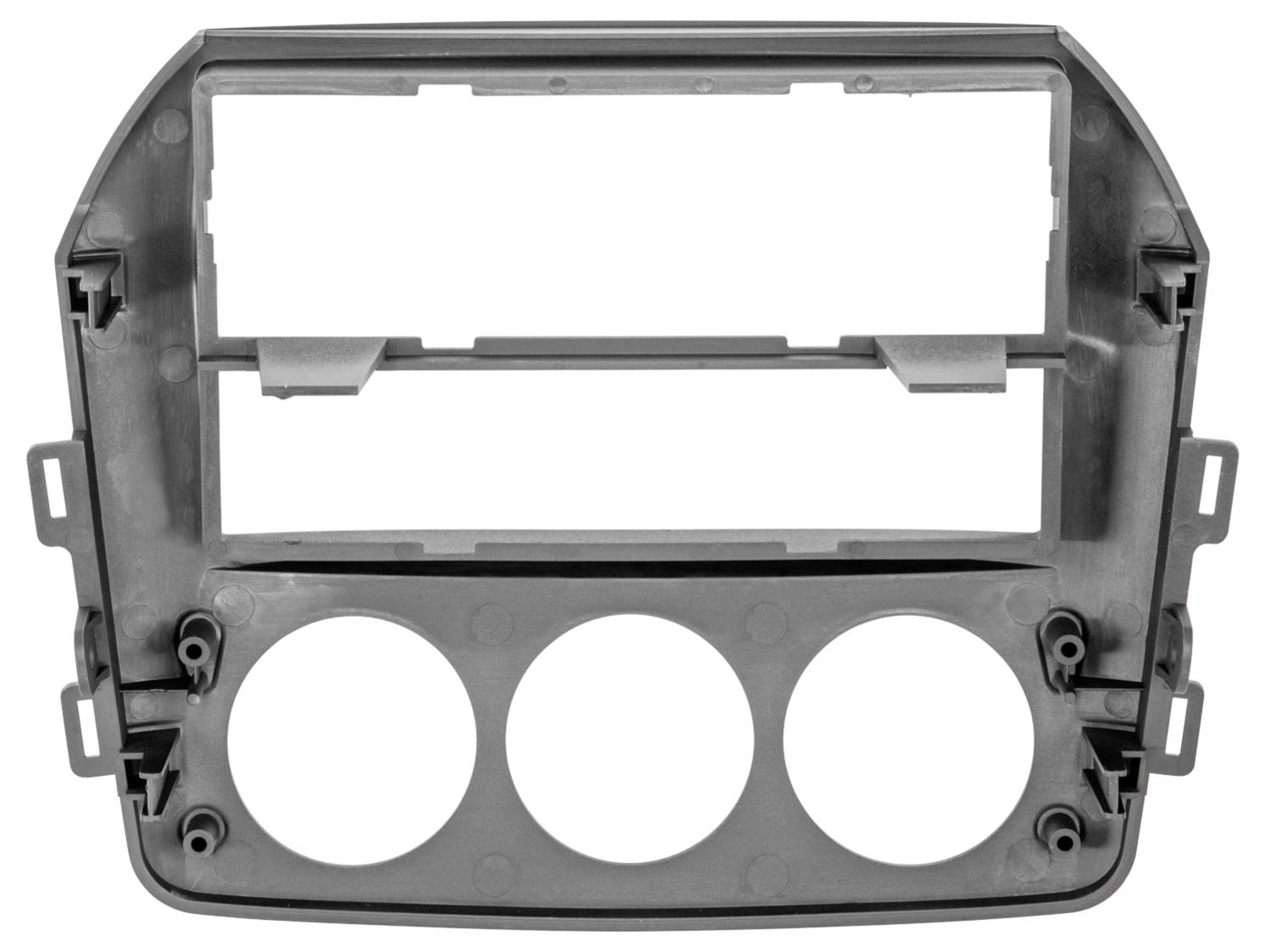

Black plastic car dashboard radio bezel with a large rectangular opening and three circular gauge cutouts<br>

1/7

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ACV 381170-12 installation frame for car radios 173x98mm 2-DIN panel black

The 2-DIN mounting frame geometry aligns a car radio with double height flush with the opening in the dashboard and thus enables a secure and flush mounting. Standardized aperture dimensions allow easy installation of retrofit radio modules and simplify the replacement of factory equipment. The black surface covers the edges in the dashboard recess and provides for a discreet connection between the new device and the vehicle interior. Vehicle-specific compatibility ensures that the assembly unit is installed at the factory mounting points, reducing the need for retrofitting.

Technical specifications

Product type: Car stereo bracket

Factory colour: Black

Width: 173 mm

Length: 98 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3595023 ACV 381170-12 Car stereo bracket

Description

This installation frame for car radios has been specially developed for the integration of a double DIN car radio with the original dashboard opening of certain Mazda models. The frame encloses the radio housing and positions it fitting exactly in the opening. The existing vehicle attachment points are used to support and fasten the unit. During installation, the device is pushed into the frame until it is securely fixed by locking mechanisms. This allows cables and connections to be accessed from the back without damaging the dashboard trim. Typically, the frame is used in retrofitting where a double DIN car radio replaces the factory radio. It ensures even alignment and secure holding in the dashboard.

This text is machine translated.

Features

Width 173 mm
Length: 98 mm
Factory color: Black
Compatible with: Mazda MX-5 (Miata) 2009–2015; Mazda MX-5 (NC) 02/2009–12/2012; Mazda MX-5 (NC) 12/2012–07/2015
Car radio aperture 2-DIN
Suitable for: Mazda

Description

Features

Width 173 mm
Length: 98 mm
Factory color: Black
Compatible with: Mazda MX-5 (Miata) 2009–2015; Mazda MX-5 (NC) 02/2009–12/2012; Mazda MX-5 (NC) 12/2012–07/2015
Car radio aperture 2-DIN
Suitable for: Mazda
