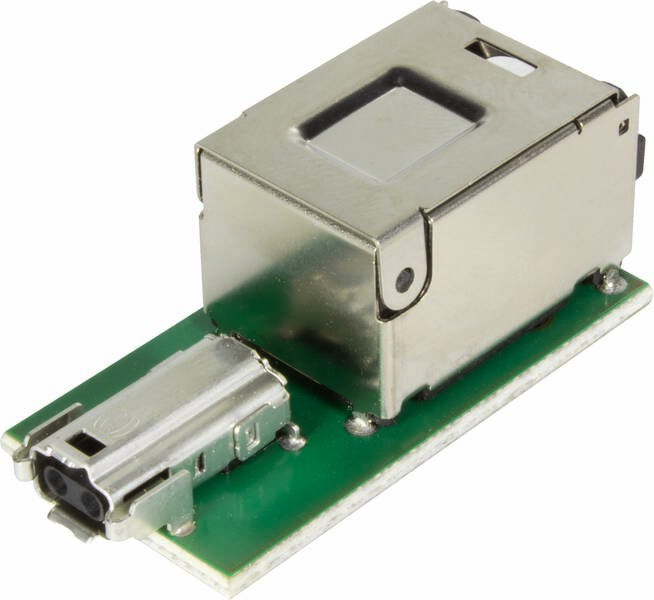

Adapter circuit board 20820080001 HARTING Content: 1 pc(s) Adapter plate
Product type
Adapter plate
Number of pins
8
Type
20 82 008 0001
Manufacturer part #
20820080001
Connection
Cut & Clip connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: Harting ix Industrial®
- Component: Adapter circuit board
- Connection type: PreLink® insulation displacement connection
- Number of contacts: 8
- Rated current 1.5 A
- Continuous resistance ≤ 30 mΩ
- Temperature limit: -40 ... +85 °C
- Test voltage Ueff 0.5 kV
- IEC 61076-3-124 standard
- Net weight: 10 g
- RATED VOLTAGE 50 V AC;60 V DC
- Coding: Type A
- Plug-in force ≤ 25 N
- Pull force ≤ 25 N
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Description: PreLink® PCB on ix Industrial® module
- Shielding: shielded
- Transmission features: Cat. 6A class EA to 500 MHz
- Storage temperature: -30 ... +60 °C
- Protection class according to IEC 60529:IP20
- Approvals DNV GL
- Constant resistance, shielding: ≤ 100 mΩ
- Type
20 82 008 0001
- Product type
Adapter plate
- Manufacturer part #
20820080001
- Number of pins
8
- Connection
Cut & Clip connector
- Total no. of pins
8
- Content
1 pc(s)
Other
Insulation displacement connector
Other
TRUE
TRUE
TRUE
Other
TRUE
FALSE
IP20
FALSE
Documents & Downloads
Datasheet
Datasheet 3001251 Adapter circuit board 20820080001 HARTING Content: 1 pc(s) Adapter plate
User & Safety Instructions
User & Safety Instructions 3001251 Adapter circuit board 20820080001 HARTING Content: 1 pc(s) Adapter plate
Description

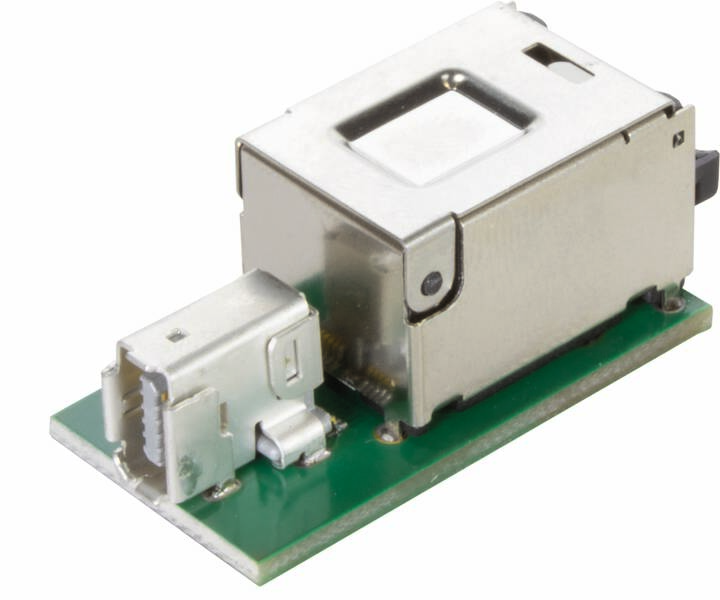

Adapter circuit board, preLink PCB to ix Industrial Module, preLink insulation displacement connection
