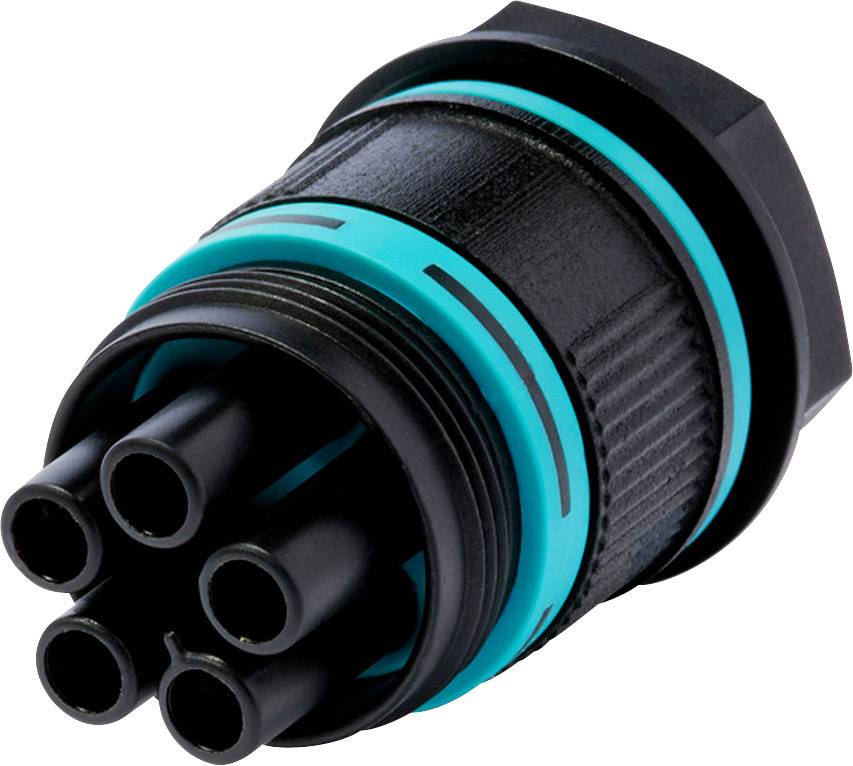

Image similar
Adels-Contact 24478 DIN connector Socket, built-in Total number of pins: 4 + PE 200 pc(s)
Product type
DIN connector
Connector type
Socket, built-in
Total no. of pins
4 + PE
Connection
Screws
Content
200 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stripping length min. 6 mm
- Stripping length max. 6 mm
- Cable length 20 mm
- Connection type: Screws
- Flammability rating: V-2
- Wire protection: no.
- Incorrect plug protection: Yes
- IP protection class IP68
- Insulation material PA 6.6
- Terminal points per pole: 1
- Conductor type flexible: Yes
- Conductor type flexible internal: no.
- Conductor type flexible external: no.
- Multi-wire conductor type: Yes
- Conductor type multi-strand internal: no.
- Conductor type: Multi-wire external: no.
- Conductor type rigid: Yes
- Conductor type rigid internal: no.
- Conductor type rigid external: no.
- Center-through protection: no.
- Mounting of contact screw 0.5x3.0 / 0.2 Nm
- Nominal cross-section 1.5 mm²
- Nominal surge voltage 4 kV
- Lock: no.
- Type
24478
- Product type
DIN connector
- Connector type
Socket, built-in
- Total no. of pins
4 + PE
- Connection
Screws
- Factory colour
Black
- Content
200 pc(s)
- Max. temperature
+85 °C
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Leading contact (PE)
Yes
- Nominal voltage
450 V
- Contact material
Brass
- Manufacturer part #
24478
- Insulation material
PA 6.6
- Number of pins
4
- max. cross section
1.5 mm²
- Min. cross section
0.5 mm²
- Cross-section range
0.5 - 1.5 mm²
- RoHS-compliant
Yes
IP68
- Type
Installation socket
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270223 Adels-Contact 24478 DIN connector Socket, built-in Total number of pins: 4 + PE 200 pc(s)
Description
Scope of delivery
- 200 PIECES: 7815D3V9 - AC 169 REBU/ 5 M20 EV
