Name: Aerotec Aerotec Aerodry 830 Pneumatic refrigerated air dryer 14 bar
Brand: Aerotec
SKU: 3630451

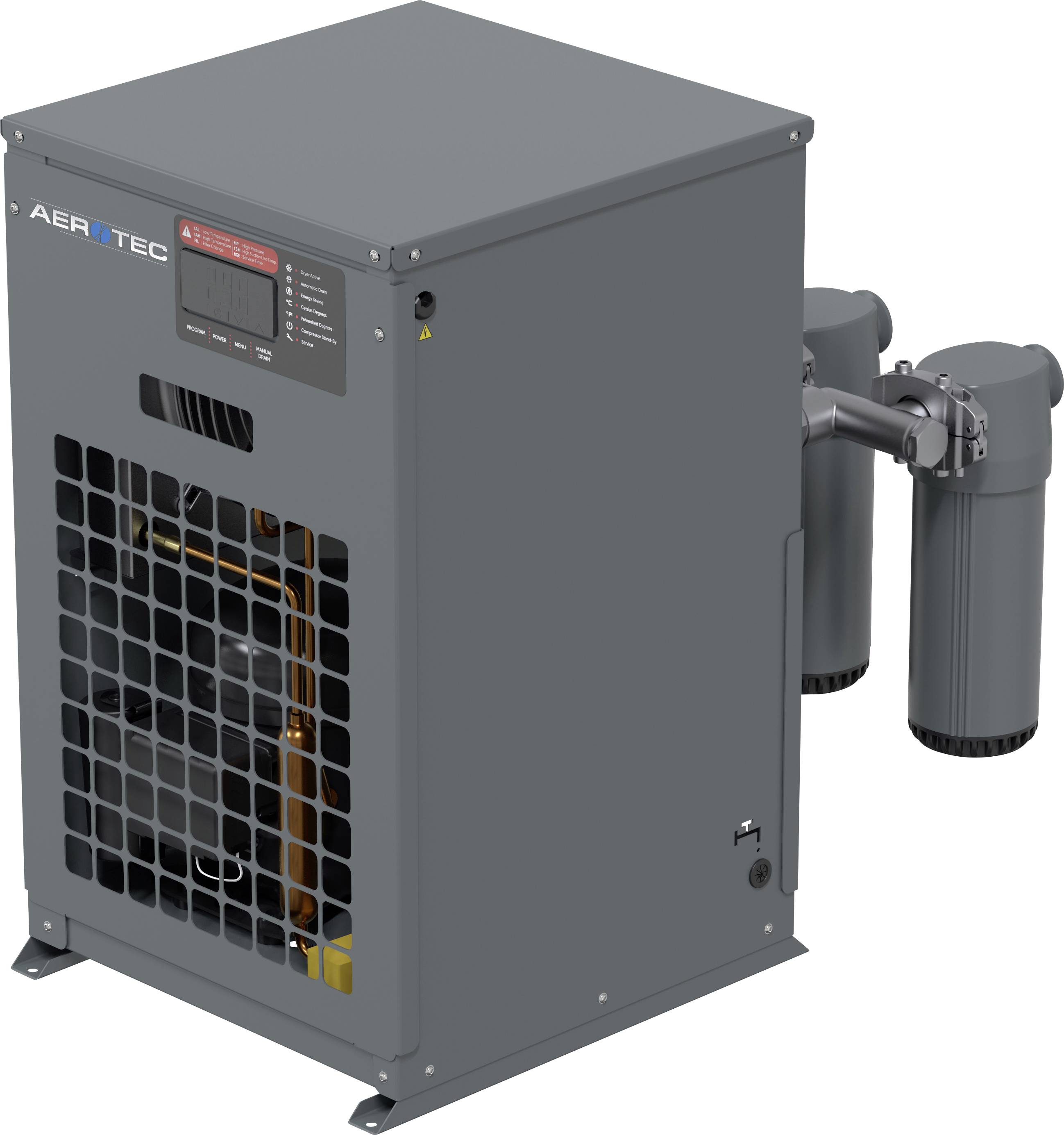

Gray industrial air compressor unit with front control panel, vented grille, and two cylindrical filters mounted on the side.

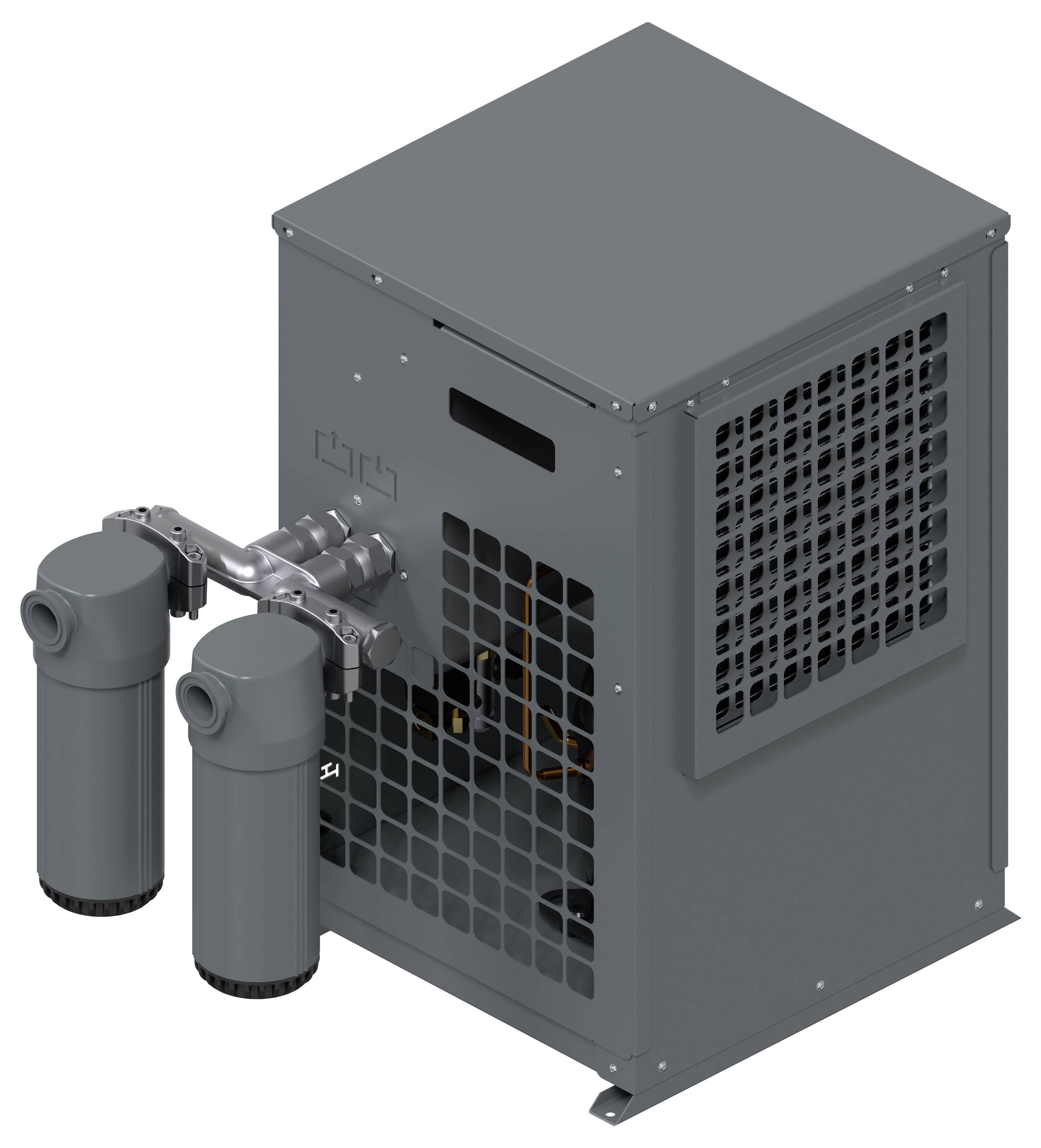

Industrial compressor unit with two cylindrical filter canisters mounted on the front side of a gray metal enclosure.

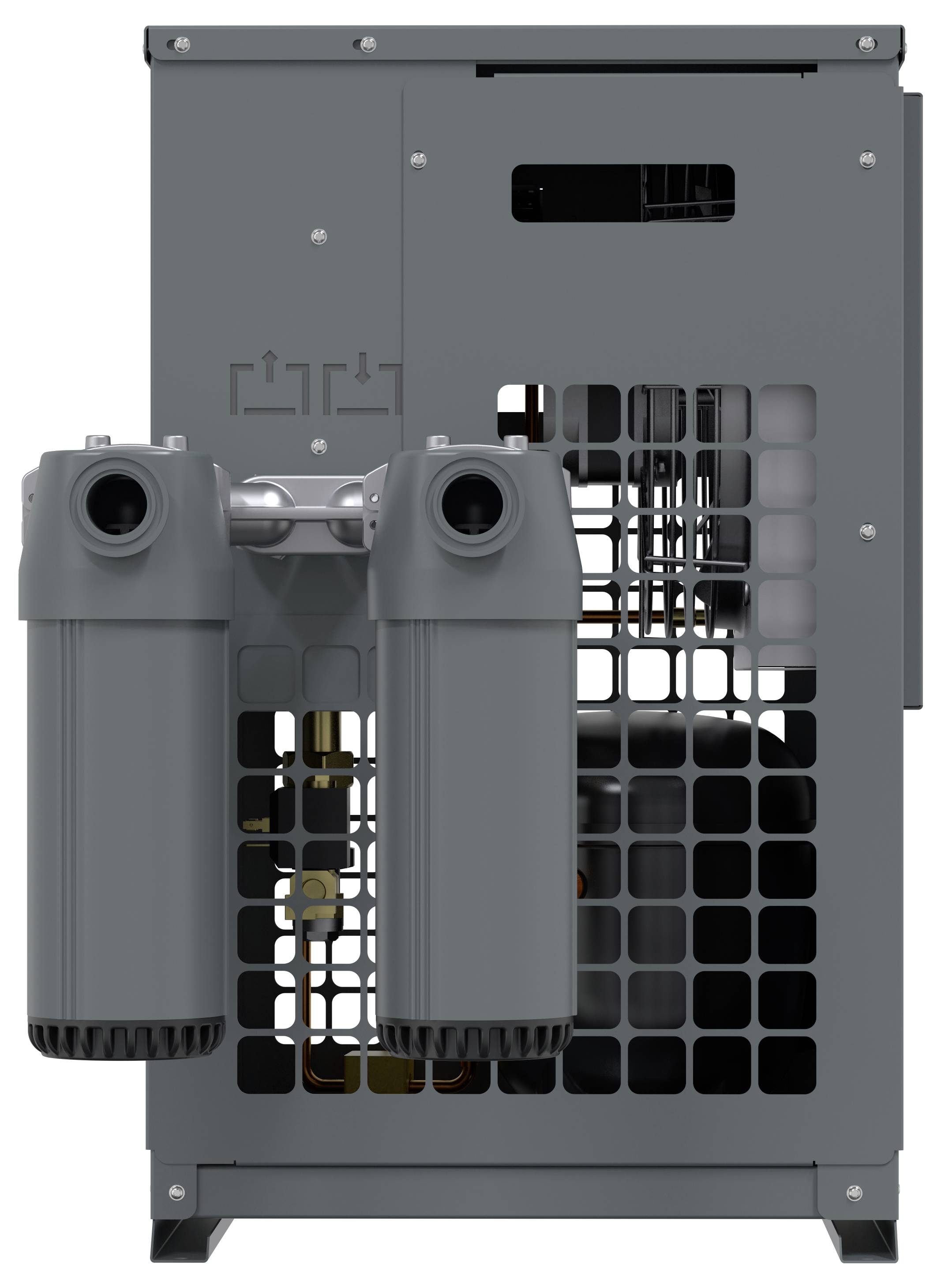

Gray industrial machine with two front-mounted cylindrical modules and a vented grille, shown from the back or side.

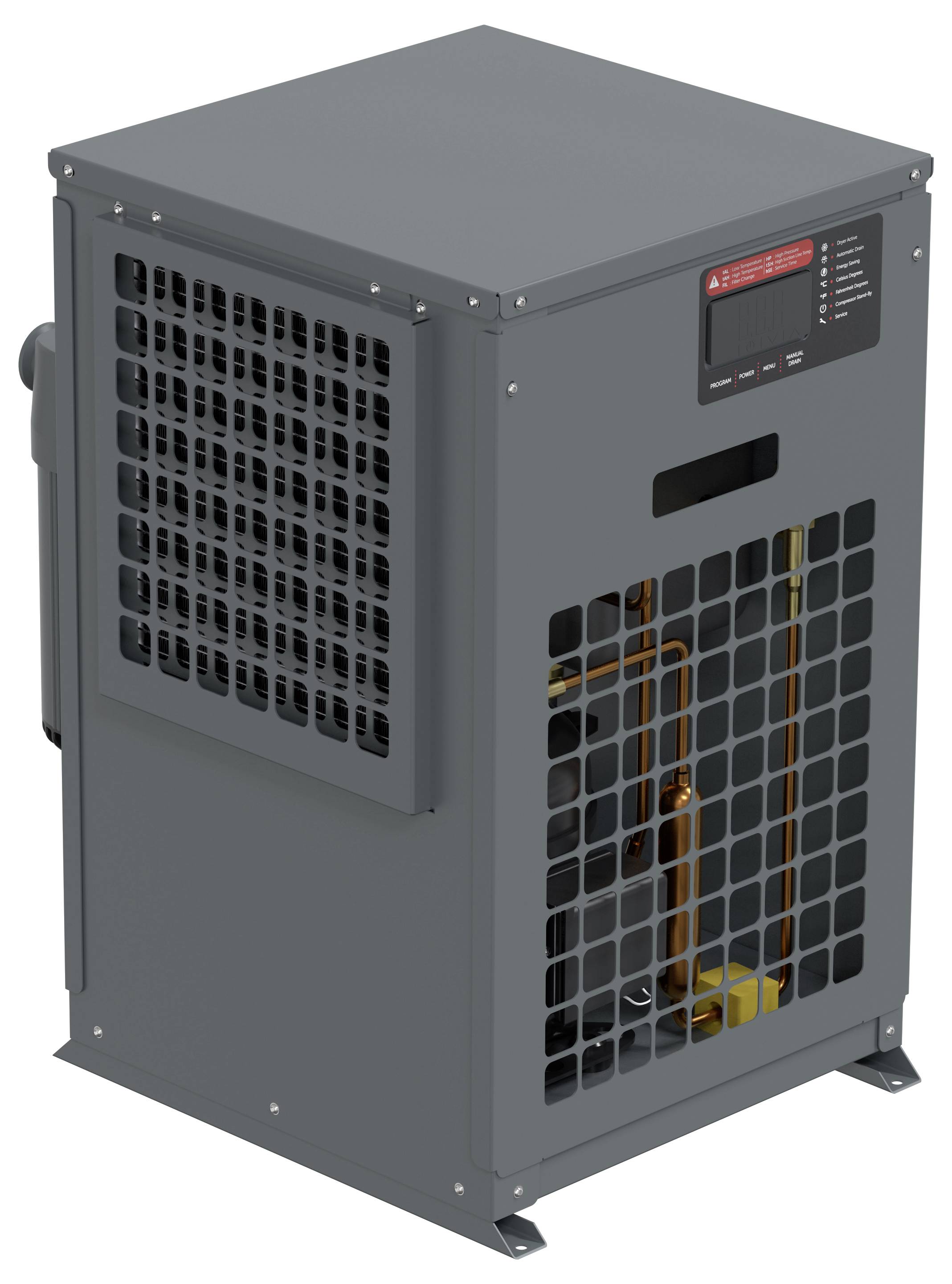

Gray industrial electrical cabinet with vented side panels, front control display, and front lower access grille showing internal components.

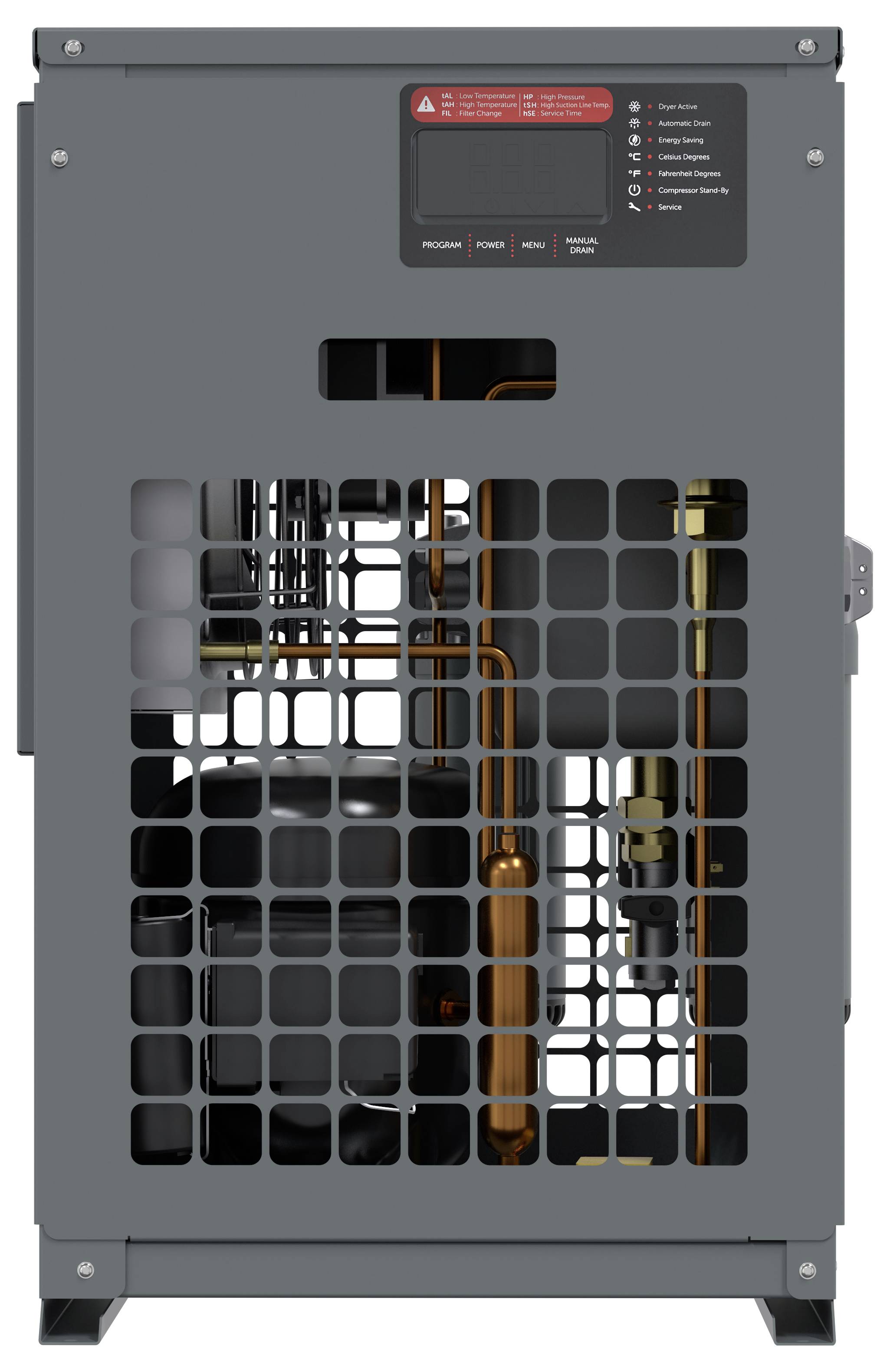

Front view of a gray industrial cabinet or generator with a grille door, showing internal pipes and components through the mesh.<br>

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max pressure 14 bar
0.3 kW power consumption
Max. Compressed air intake temperature 60 degrees Celsius
Ambient temperature range 5 - 50 degrees Celsius
Connection voltage 230 V.
Network frequency 50 Hz

Product type: Pneumatic refrigerated air dryer

Air consumption: 833 l/min

Max. operating pressure: 14 bar

Weight: 24 kg

Connector: 1/2" (12,7 mm)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3630451 Aerotec Aerotec Aerodry 830 Pneumatic refrigerated air dryer 14 bar

Description

Owing to the click system covers each side part can be unlocked quickly and easily without tools. There is a constant pressure dewpoint within the operating range. The dryers are standard including pre-filters and micro-filters. This results in lower installation costs for the ISO 8573-1 / 1.4.1 standard. The filter change interval is displayed in the control system. Our refrigeration dryers are equipped with a new high-quality discharge unit which has been integrated on the controller. As such, faults are directly transmitted - for perfect efficiency and operational safety.

This text is machine translated.
