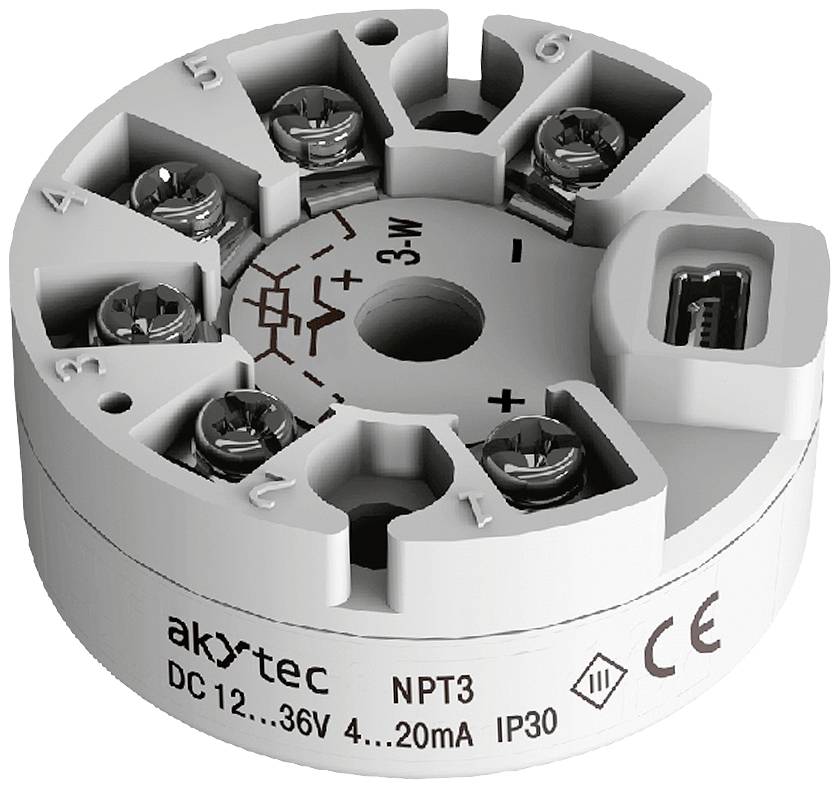

akYtec NPT3 NPT3, temperature measuring transducer 52761
EAN:
Part number:
Item no:
Type
NPT3
Dim
(Ø x H) 44 mm x 18 mm
Manufacturer part #
52761
Height
18 mm
(Ø)
44 mm
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
Only 1 Piece(s) available
Highlights & Details
NPT3, temperature measuring transducer
- Supports a variety of temperature sensors
- The factory setting for the NPT3 is pre-configured for Pt100
- Supports resistance thermometers with 2, 3 or 4-wire technology
- Operating temperature: -40 to +85 oC
- High accuracy and resolution
- High reliability
- Programming via the USB interface
Technical specifications
- Power supply: 24 (12…36) VDC
- Ambient temperature -40…+85 °C
- Humidity: Up to 95%, non-condensing
- IP30 protection
- Dimensions Ø44 x 18 mm
- Weight approx. 25 g
- Analog inputs: 1
- Analog outputs 1
- Accuracy: TC: 0.5%; RTD: 0.25%
- RTD-Connection: 2-, 3- and 4-conductor
- Analogue output 4-20 mA
- Permissible load resistance: RB ≤ (UV-11 V) / 0.02 A
- PC-interface USB2.0 full speed
- Galvanic isolation: None
- Type
NPT3
- Dim
(Ø x H) 44 mm x 18 mm
- Manufacturer part #
52761
- Height
18 mm
- (Ø)
44 mm
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
- No. of analogue inputs
1
- No. of analogue outputs
1
IP30
- Type
Temperature transducer
- Operating voltage
24 V DC
- Min. operating voltage
12 V DC
- Max. operating voltage
36 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219680 akYtec NPT3 NPT3, temperature measuring transducer 52761
Description
NPT3 is a universal temperature converter for use in all automation systems.
It is suitable for installation in a connection head form B.
The device converts measurement signals from a thermocouple or resistance thermometer into a 4-20 mA standard signal and is characterized by an extremely wide operating temperature range.
Configuration is done via the USB interface without the need to insert a programming adapter.
The software required is included free of charge.
The NPT3 can be used in all automation systems where different types of temperature sensors are used and the output signals are to be converted into the standard signal 4-20 mA.
It supports all common types of thermocouples and resistance thermometers with connection head B.
This text is machine translated.
It is suitable for installation in a connection head form B.
The device converts measurement signals from a thermocouple or resistance thermometer into a 4-20 mA standard signal and is characterized by an extremely wide operating temperature range.
Configuration is done via the USB interface without the need to insert a programming adapter.
The software required is included free of charge.
The NPT3 can be used in all automation systems where different types of temperature sensors are used and the output signals are to be converted into the standard signal 4-20 mA.
It supports all common types of thermocouples and resistance thermometers with connection head B.
This text is machine translated.
Scope of delivery
- NPT3
- User manual
