Name: Allnet ALL-RJ45-Magnet Allnet ALL-RJ45-Magnet N/A 193972 Plug, straight No. of pins (RJ) 8 White 1 pc(s) 193972 Plug, st
Brand: Allnet
SKU: 2749791

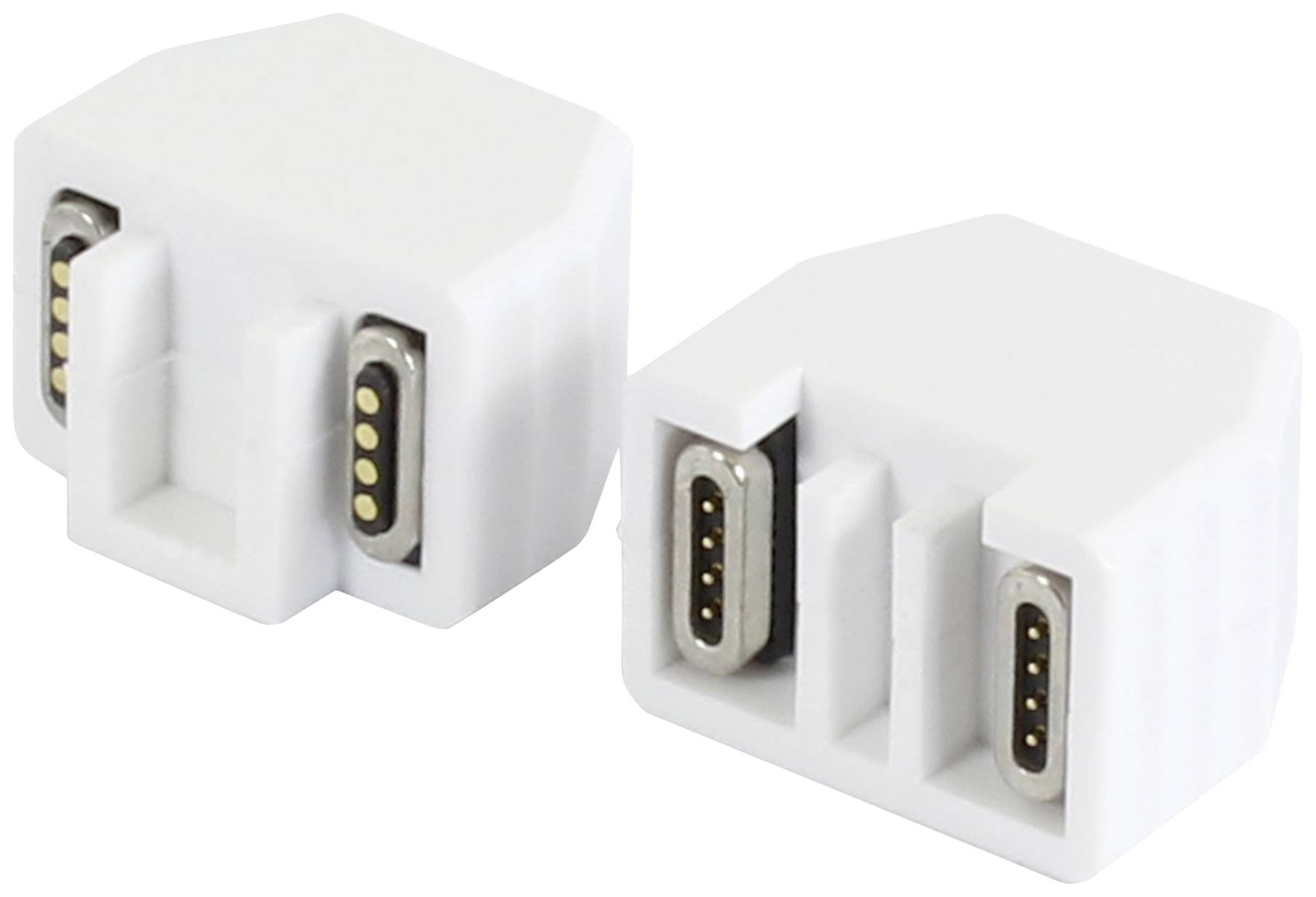

Two white USB adapters with rectangular housings and visible metal contacts.

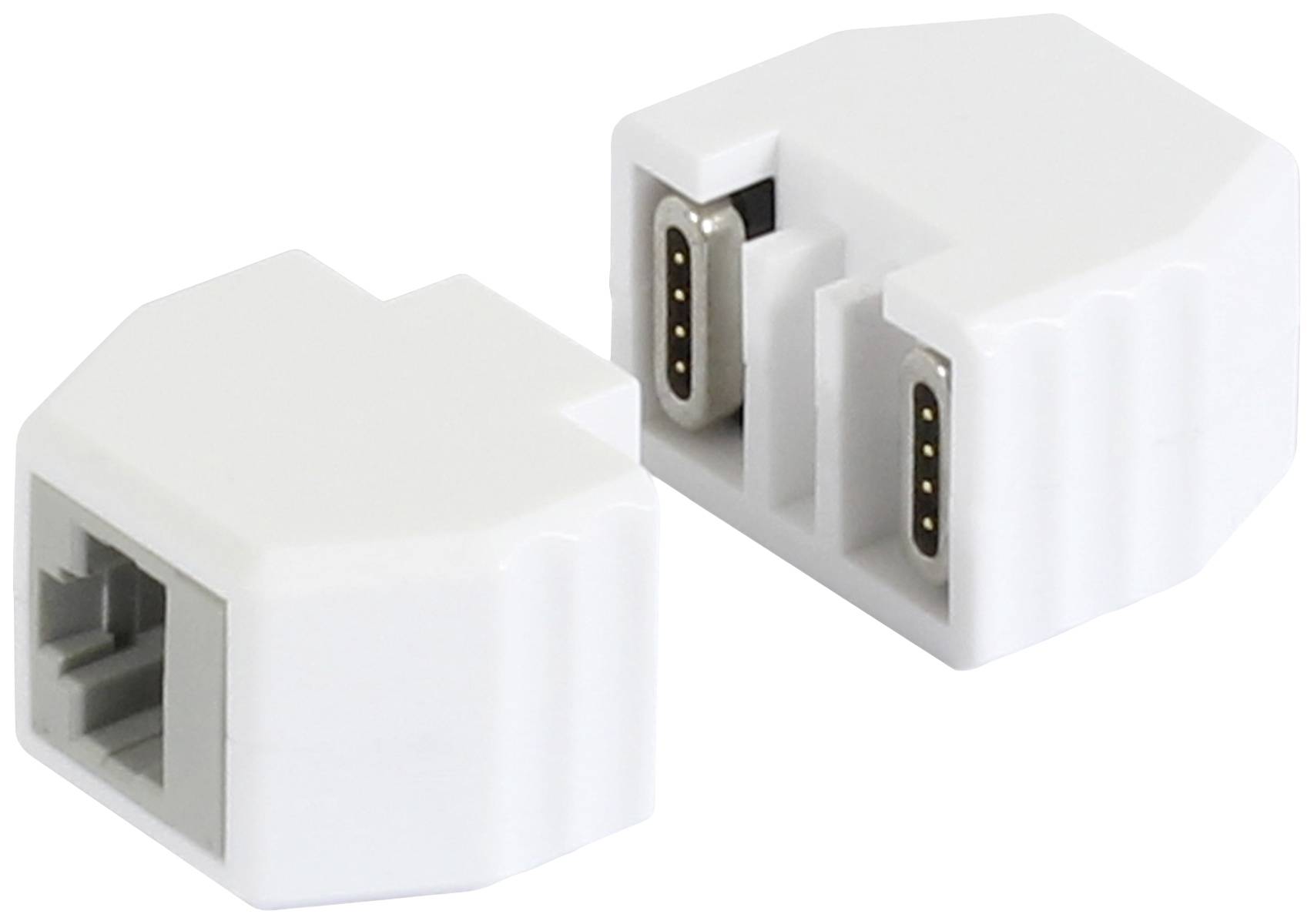

Two white TAE-F plug adapters, one showing the front with connection openings, the other showing the back with plug contacts.

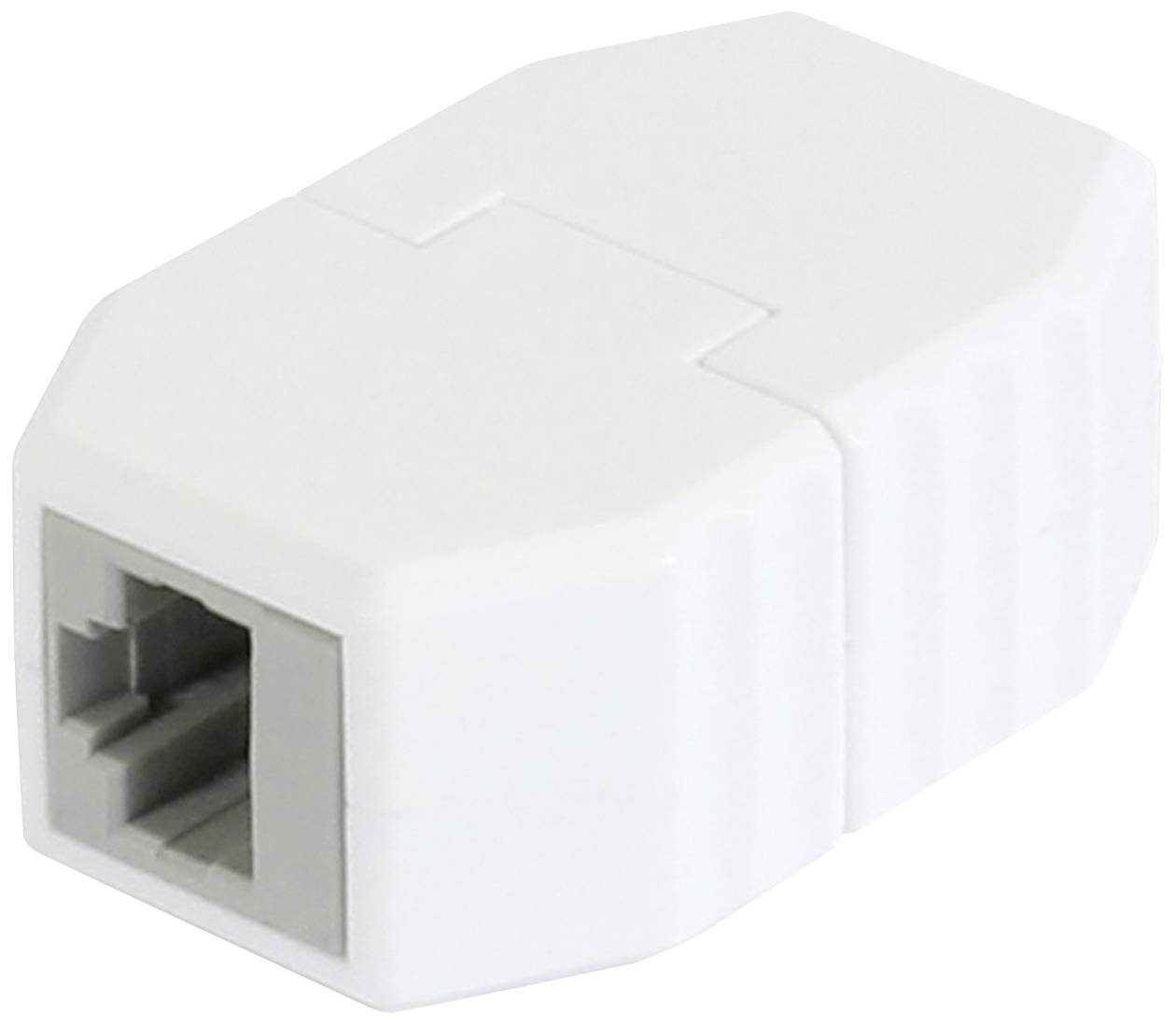

Network coupling in white, suitable for connecting RJ45 plugs in network cables, typical for home and office networks.

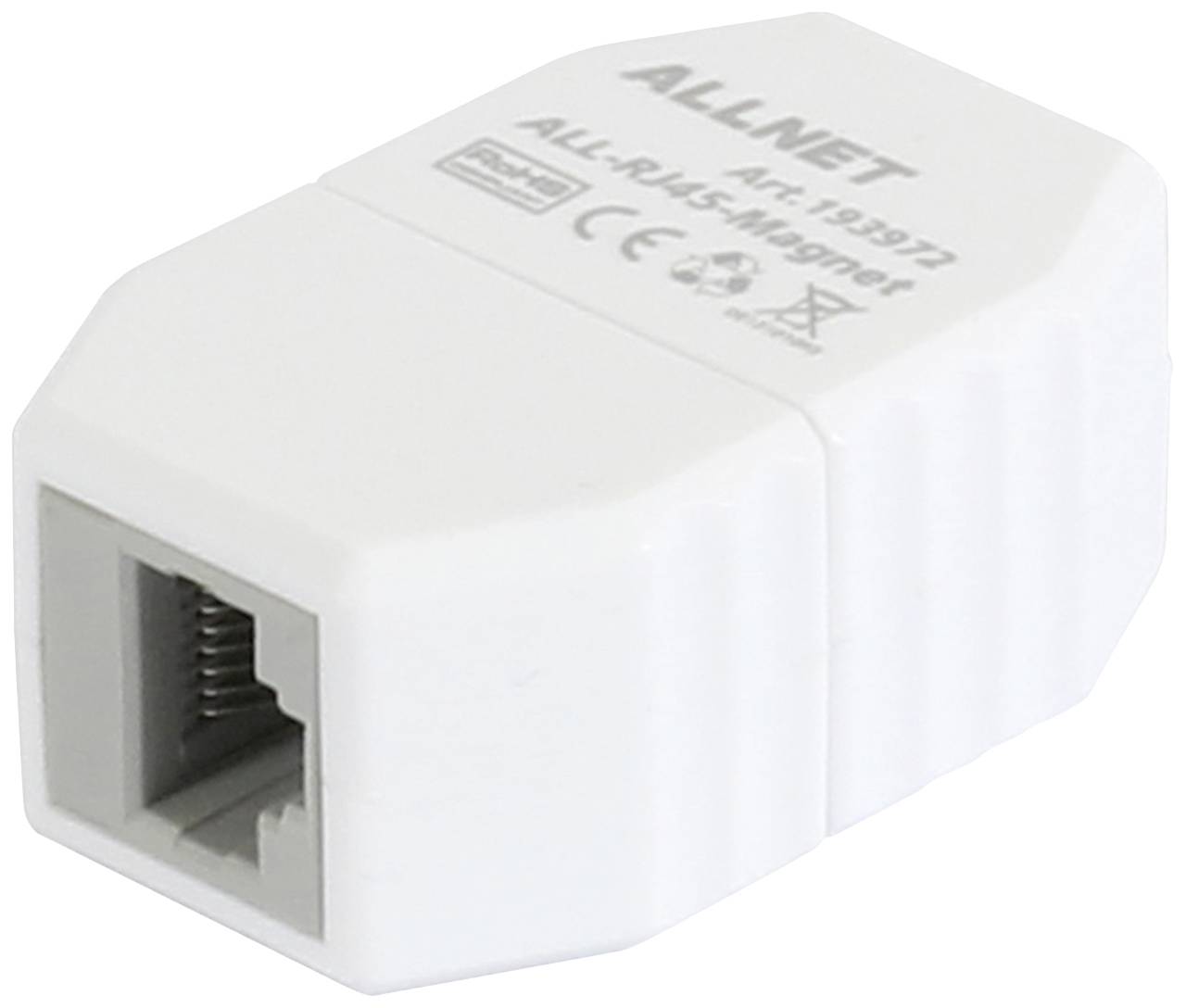

ALLNET network adapter, model ALL-RJ45Magnet, with RJ45 port, white housing.

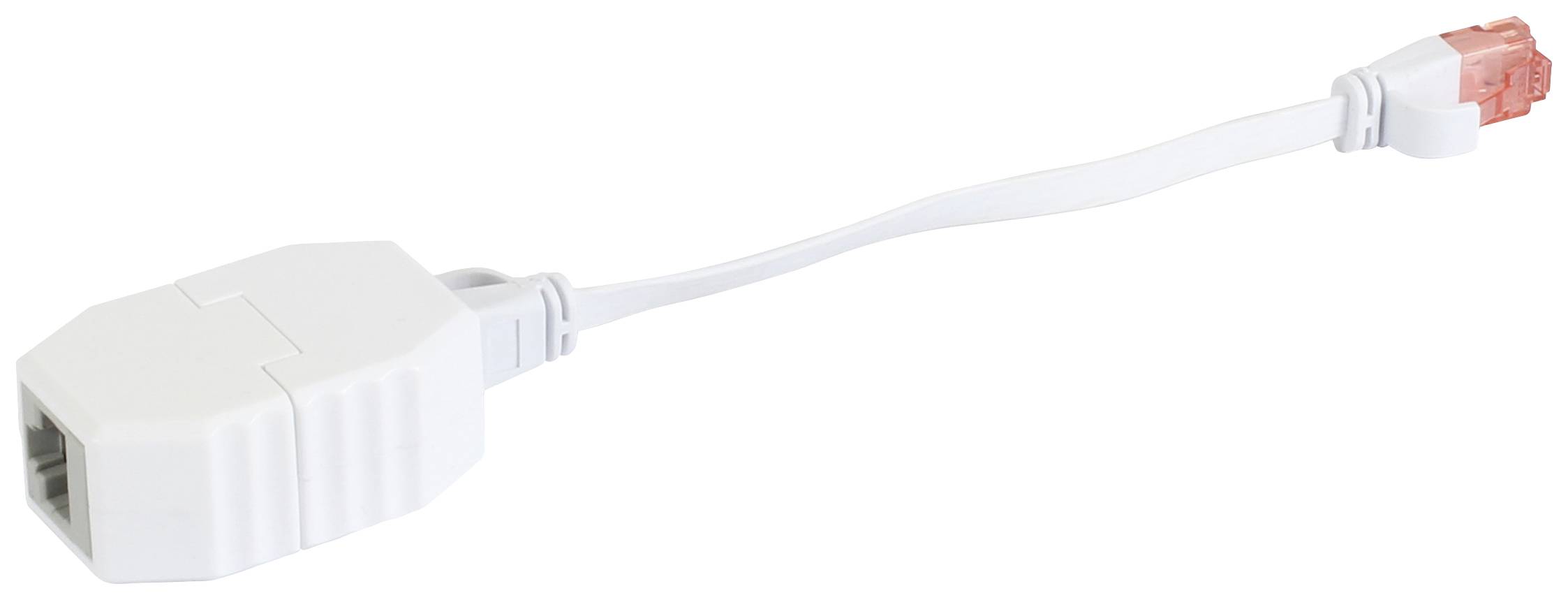

A white Ethernet adapter, RJ45 socket to RJ45 plug, with a short cable. Used for network connection.

1/6

Packaging type

Bag

Product type

RJ45 socket module

Connector type

Plug, straight

No. of pins

Specification

CAT 6A

Datasheet (PDF)

Unavailable

29 Piece(s)

Show alternatives

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Allnet ALL-RJ45-Magnet N/A 193972 Plug, straight No. of pins (RJ) 8 White 1 pc(s)

Specification: RJ45 / RJ45 safety coupling with magnetic contactsPower over Ethernet according to IEEE 802.3 af/at/bin -90 Wattsaverage Plug-in cycles RJ45>: = 750Socket in accordance with IEC 60603-7-51 connector standardData transfer rate: Up to 10 GBit IEEE 802.3anData transfer: Bidirectional, full duplexAdapter type: InactiveAir humidity 10-90%Temperature range -20°C to 85°C.Conector 2xRJ45 Connectors: Neodymium Pogo pins 2x4-pinMaterial socket ABS plasticMaterial housing cover: ABSColour of housing: WhiteWeight: 30g

Technical specifications

Packaging type: Bag

Type: ALL-RJ45-Magnet

Product type: RJ45 socket module

Connector type: Plug, straight

No. of pins: 8

: CAT 6A

Connector standard: RJ45

Connection: RJ45

No. of ports: 2 x

Weight: 30 g

Factory colour: White

Content: 1 pc(s)

Material: Acrylonitrile butadiene styrene

Width: 100 mm

Height: 50 mm

Length: 150 cm

RoHS-compliant: Yes

Max. temperature: 85 °C

Min. temperature: -20 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2749791 Allnet ALL-RJ45-Magnet Allnet ALL-RJ45-Magnet N/A 193972 Plug, straight No. of pins (RJ) 8 White 1 pc(s) 193972 Plug, st

User & Safety Instructions

User & Safety Instructions 2749791 Allnet ALL-RJ45-Magnet Allnet ALL-RJ45-Magnet N/A 193972 Plug, straight No. of pins (RJ) 8 White 1 pc(s) 193972 Plug, st

Information

Information 2749791 Allnet ALL-RJ45-Magnet Allnet ALL-RJ45-Magnet N/A 193972 Plug, straight No. of pins (RJ) 8 White 1 pc(s) 193972 Plug, st

Description

With this clutch you can easily and effectively protect your valuable IT equipment from damage. The two parts are fixed by magnetic contacts and release by too high a tensile load. Thus, the RJ45 socket is pulled out and the devices are prevented from being damaged by negligence. This security product from Allnet has been specially developed for our hospitality customers and IT system houses. The standard specifications for the tripping force of RJ45 plugs and sockets according to IEC 60603-7 are higher than that of our discharge socket. This ensures that the connection between the two magnetic couplings always drops apart, before they are damaged. However, accidental loosening of the magnet connection is not possible.You can continue to use the existing infrastructure, because the plug supports all types of RJ45 connectors, from Cat5-Cat6a, PoE according to IEEE 802.3 af/at/bin (90watt) and up to 10GBit.Protect your devices!This product complies with the EC Directive 2002/95/EC (RoHS). A set in PE bag with QIG
