Name: Allnet ALL-SG8208PD ALL-SG8208PD Network switch 8 + 4 ports 10 / 100 / 1000 MBit/s PoE
Brand: Allnet
SKU: 2352027

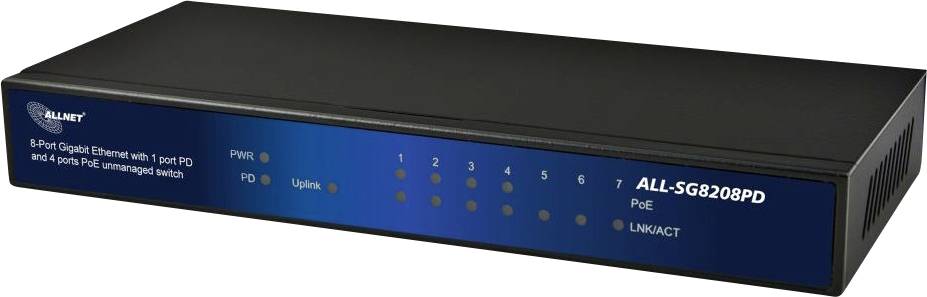

Eight-Port Gigabit Ethernet Switch, Model ALL-SG8208PD, with PoE support. Displays status LEDs for network activity.

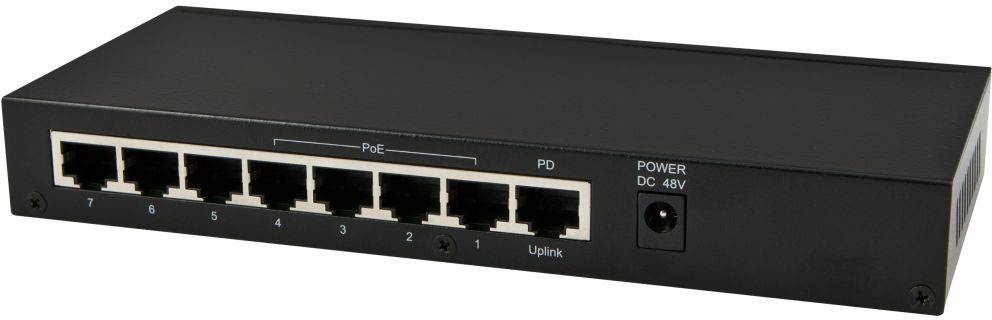

Black network switch with eight Ethernet ports and power connection. Ports are numbered from 1 to 8, with PoE support.

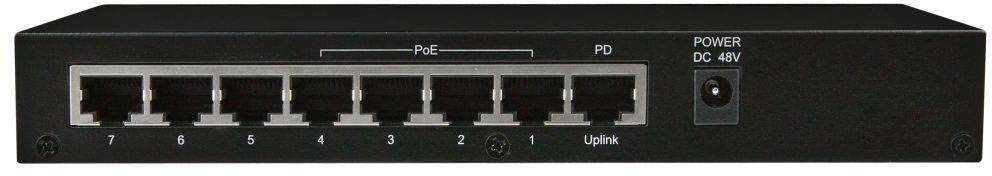

A black network switch with eight Ethernet ports and a power connection on the right. Each port is numbered from 1 to 8.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Allnet 8 Port Gigabit Switch with 4 PoE (ALL-SG8208PD)

8-port 10/100/1000 BaseT(X) with 4x PSE port and 1x PD port
IEEE 802.3af PoE standard
Supports full and half duplex on all ports
Supports back-pressure (half duplex) and fl ow control (IEEE 802.3x)
Provides 8K MAC address accesses
128KB frame buffer memory
Supports 9K bytes Jumbo
FANLESS DESIGN

Technical specifications

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

IEEE 802.3af PoE: 4

10/100/1000 Mbps ports: 8 x

Router features: PoE

MAC addresses: 4000

Weight: 400 g

Width: 115 mm

Height: 26 mm

Depth: 85 mm

Type: ALL-SG8208PD

Interfaces: Gigabit LAN (1 Gbps)

Factory colour: Multicolour

Max. ambient temperature: 50 °C

Min. ambient temperature: 0 °C

Port: 8 + 4 ports

Length: 150 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2352027 Allnet ALL-SG8208PD ALL-SG8208PD Network switch 8 + 4 ports 10 / 100 / 1000 MBit/s PoE

User & Safety Instructions

User & Safety Instructions 2352027 Allnet ALL-SG8208PD ALL-SG8208PD Network switch 8 + 4 ports 10 / 100 / 1000 MBit/s PoE

Description

THE ALL-SG8208PD is a powerful switch, which enables Gigabit Ethernet on all 8 ports and automatically negotiates the transmission speed with the connected devices through the auto negotiation function. The device is
Perfect for the micro-segmentation of large networks and thus offers smaller sub-networks an optimized performance as it is needed for multimedia and cooking.
THE ALL-SG8208PD supports PoE pass-through, it combines PD (Powered Device) and PSE (power sourcing equipment) in one device, was The switch can be supplied with power via the PD port from a PSE device via network cable (cat 5 or higher), but at the same time it can also supply power to other devices via the two PSE ports.
For example, you can connect a wireless AP or a VoIP telephone (PD devices) to this switch and do not need an additional power connection for these devices, this simplifies the installation. THE ALL-SG8208PD supports overcurrent protection and
Short-circuit protection to increase the safety in the network.
The switch is a plug and play device, it does not have to be configured via software, it is fully compatible with all types of network protocols. In addition, the diagnostic LED displays on the front provide information about the
Health status of each port and the entire system.
