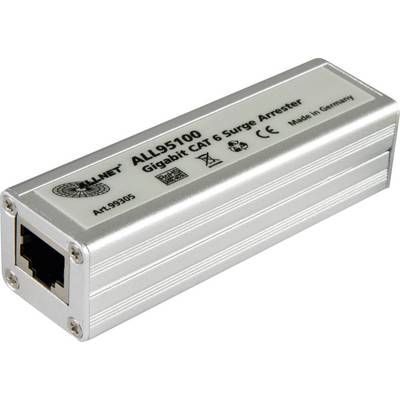

Allnet ALL95100 LAN surge protection 10/100/1000 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
38 Piece(s)
Sales and shipping:
Number
Total (€ 22.68 / piece)
€
Highlights & Details
Allnet ALL 95100 TP Cat 6 lightning protection"Gigabit"
- Plug and Play installation
- Reliable protection against surges of all devices with network connection
Technical specifications
- Product type
LAN surge protection 10/100/1000
- Weight
0.14
- Content
1 pc(s)
- Interfaces
Gigabit LAN (1 Gbps)
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 710115 Allnet ALL95100 LAN surge protection 10/100/1000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 710115 Allnet ALL95100 LAN surge protection 10/100/1000 1 pc(s)
Description
Protect your network devices from surges due to lightning strikes
The ALLNET ALL 95100 offers a cost-effective and reliable protection against damage to sensitive devices. The in a compact accommodated ALLNET over-voltage protection is simply plugged between the network cable or xDSL/ISDN connection and the protective device.
This assumes immediately and without any configuration the protection of the device from power surges. Together with a regular surge protection and potential compensation, for example, you can protect the infrastructure in safety-relevant areas permanently.
This text is machine translated.
The ALLNET ALL 95100 offers a cost-effective and reliable protection against damage to sensitive devices. The in a compact accommodated ALLNET over-voltage protection is simply plugged between the network cable or xDSL/ISDN connection and the protective device.
This assumes immediately and without any configuration the protection of the device from power surges. Together with a regular surge protection and potential compensation, for example, you can protect the infrastructure in safety-relevant areas permanently.
This text is machine translated.
Features
- PoE-capability: IEEE 802.3af, at, LTPoE++ up to 90 W
- Discharge capacity: 10kA (8/20 μs), 100 A (10/1000 µs)
- Ignition voltage 90 VDC ± 20% (pair to earth);< 450 V (at 100 V/μs);< 600 V (at 1 kV/µs)
- Diff. Clamping:< 15V,< 5ns, 30 apk (pair wire-to-wire)
- Diff. Capacity:< 4.0pF
- Protected Conductor: (pins) 1 - 8 (at 8-pin modular connector)
- Test mark: IEEE 802.3, CAT 5, 6
- ESD protection: IEC61000-4-2 class 4 (10 kV CD)
- Housing: metal housing
