Amewi 22696 Mercedes-Benz Arocs Sattelzug mit Kippauflieger 4x4 1:14 RTR anthrazit 1:14 Electric RC model car for beginn

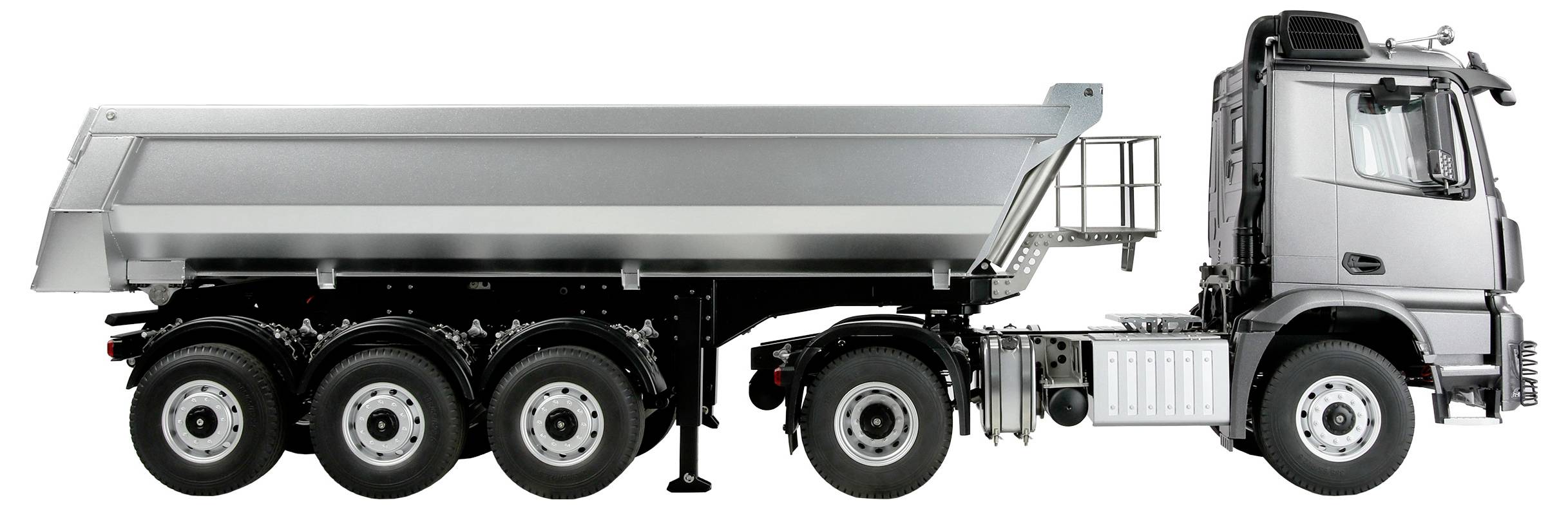

This licensed truck from the Mercedes-Benz Arocs series is a 4x4 semitrailer tractor with dump trailer with an electronically operated tilt function via a worm gear.

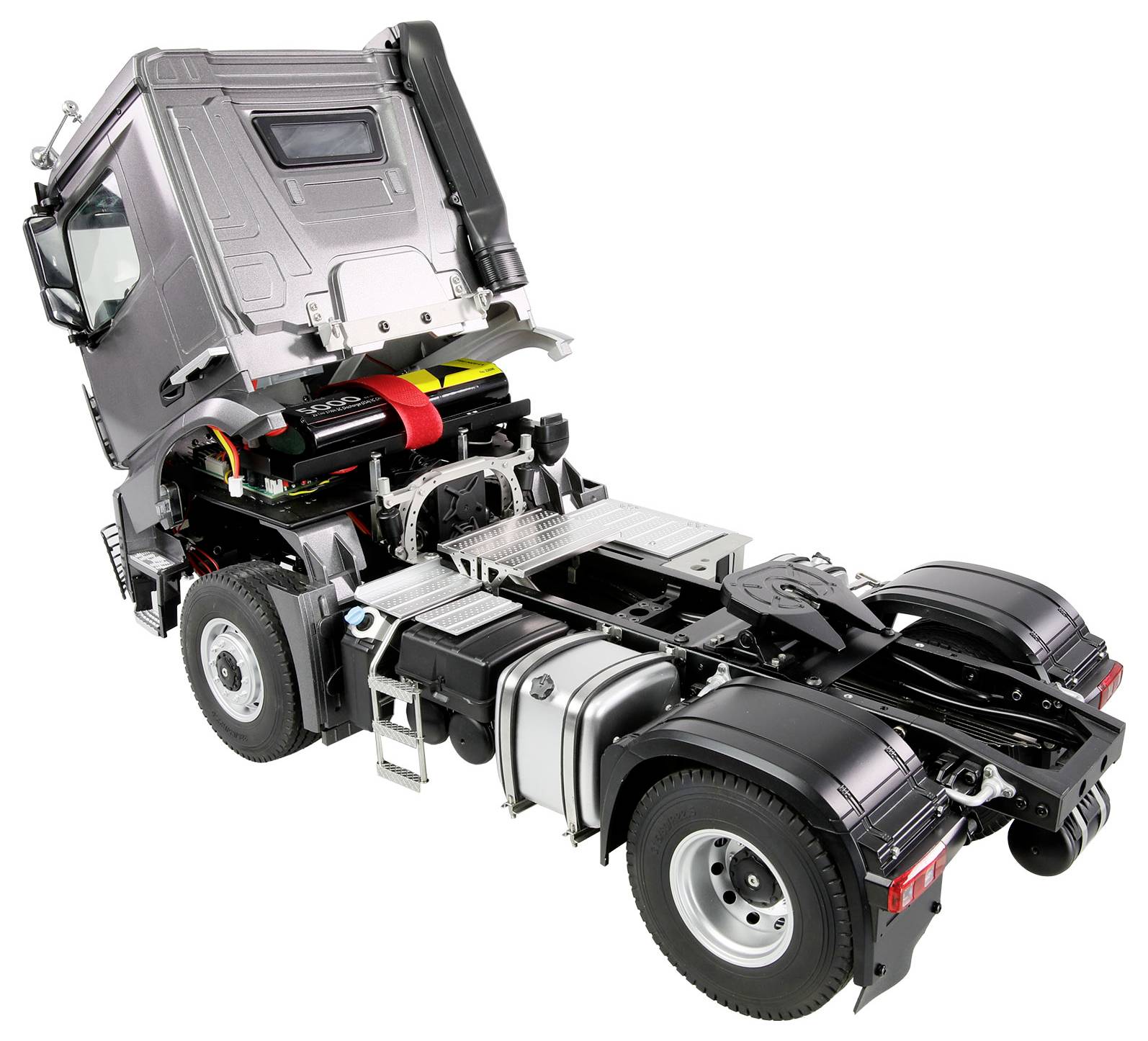

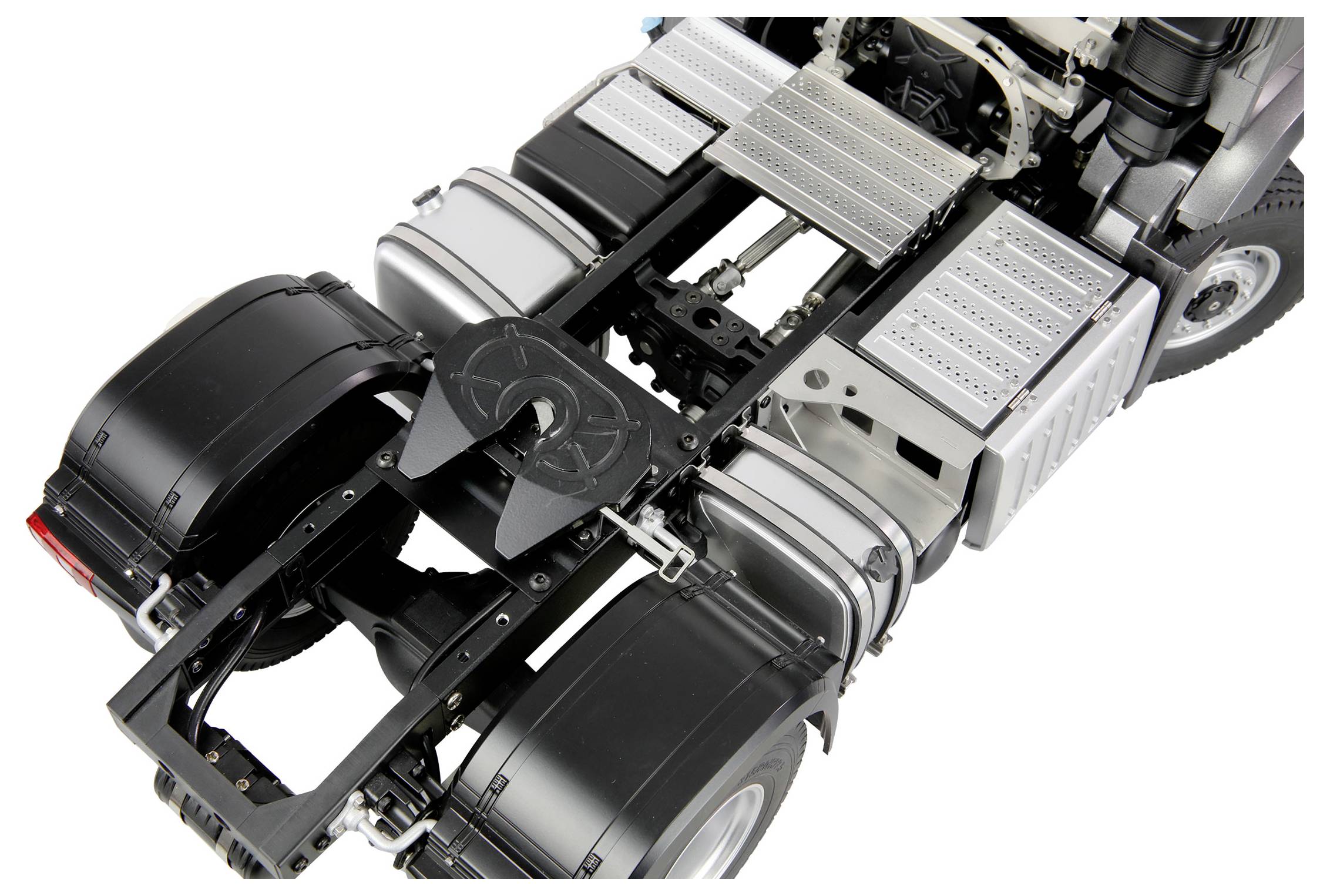

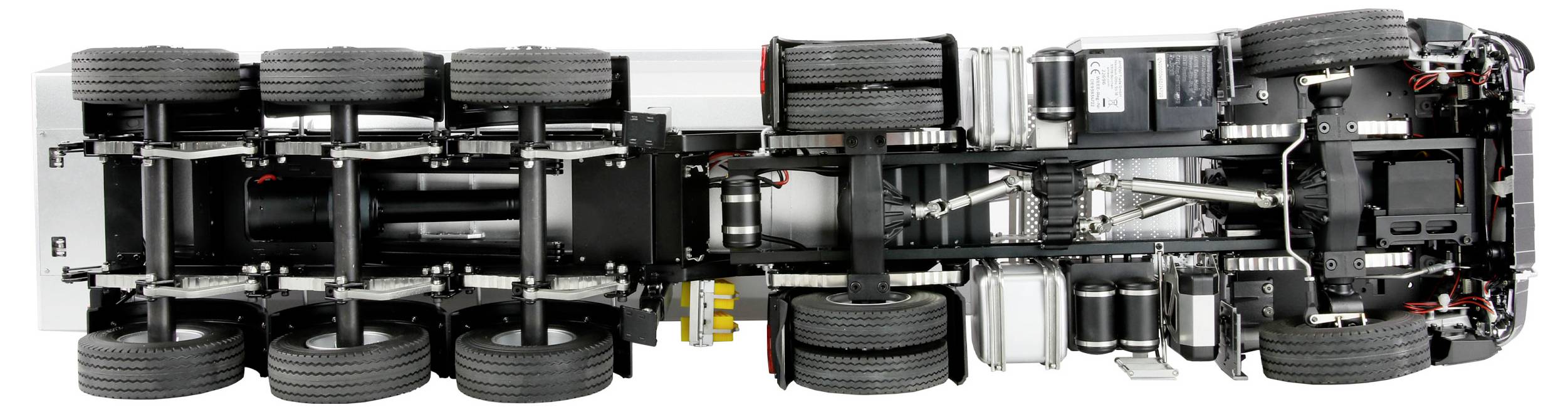

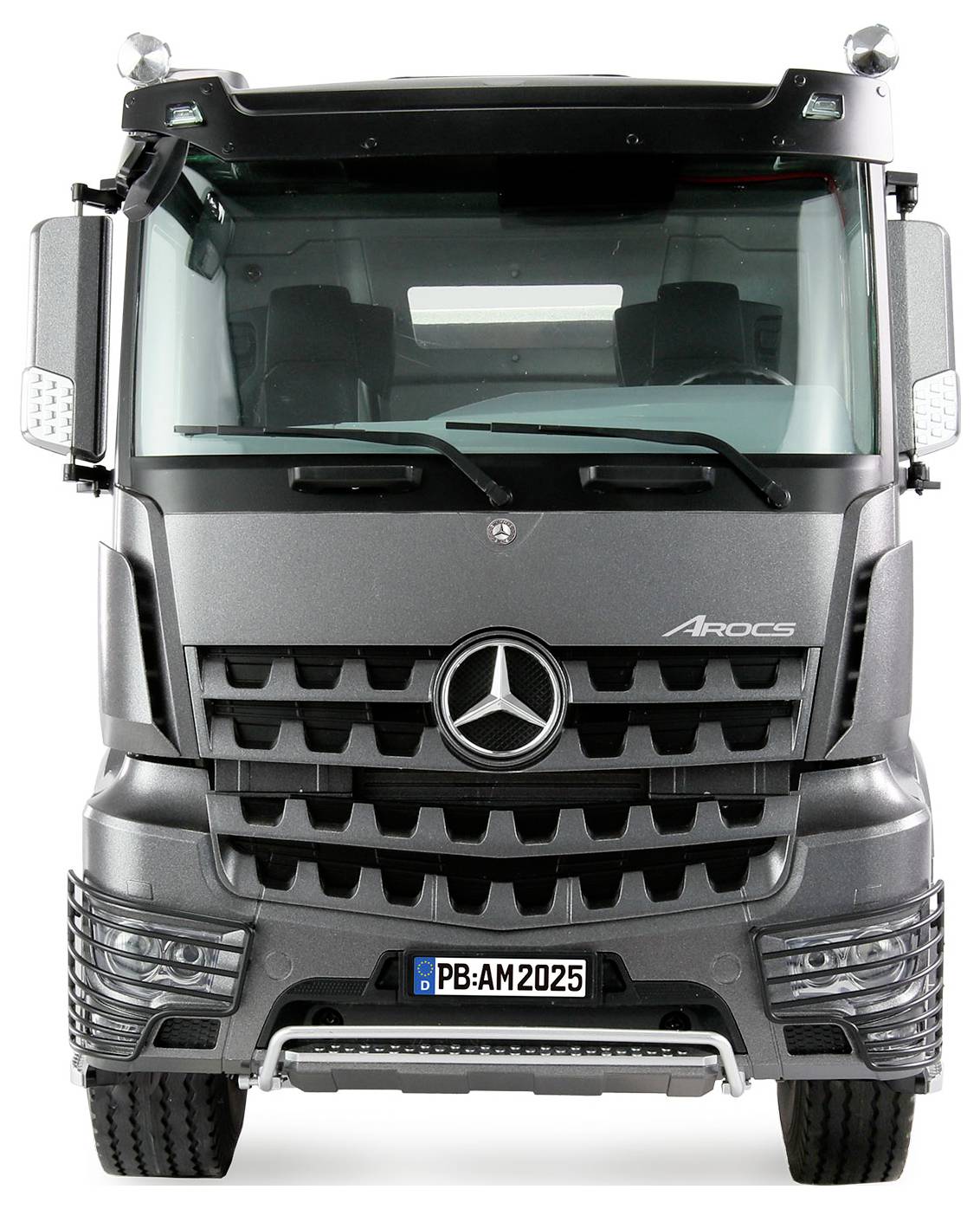

Its detailed look at the scale of 1:14 makes it a great attraction for anyone who wants to scale model construction. The vehicle weighs 5 kilograms and all functions can be operated conveniently via the remote control. Chassis, recess, drive section and all shafts are made entirely of metal. WAS guarantees long life of components. The driver's cabin is reproduced in the scale and is equipped with a complete interior. Rubber tires with high wheel grip and rims made of metal complete the appearance.

Thanks to the generous ground clearance of 24 millimeters and the high weight, the model can move easily on uneven terrain. The installed 540 high-torque brushed motor with 55T in combination with a multi-stage two-speed transmission provides adequate power to easily manage even the more difficult sections. A switchable LED lighting ensures that even driving at dusk is possible without a problem. For additional realism, the model is equipped with a sound module that generates authentic driving noises.

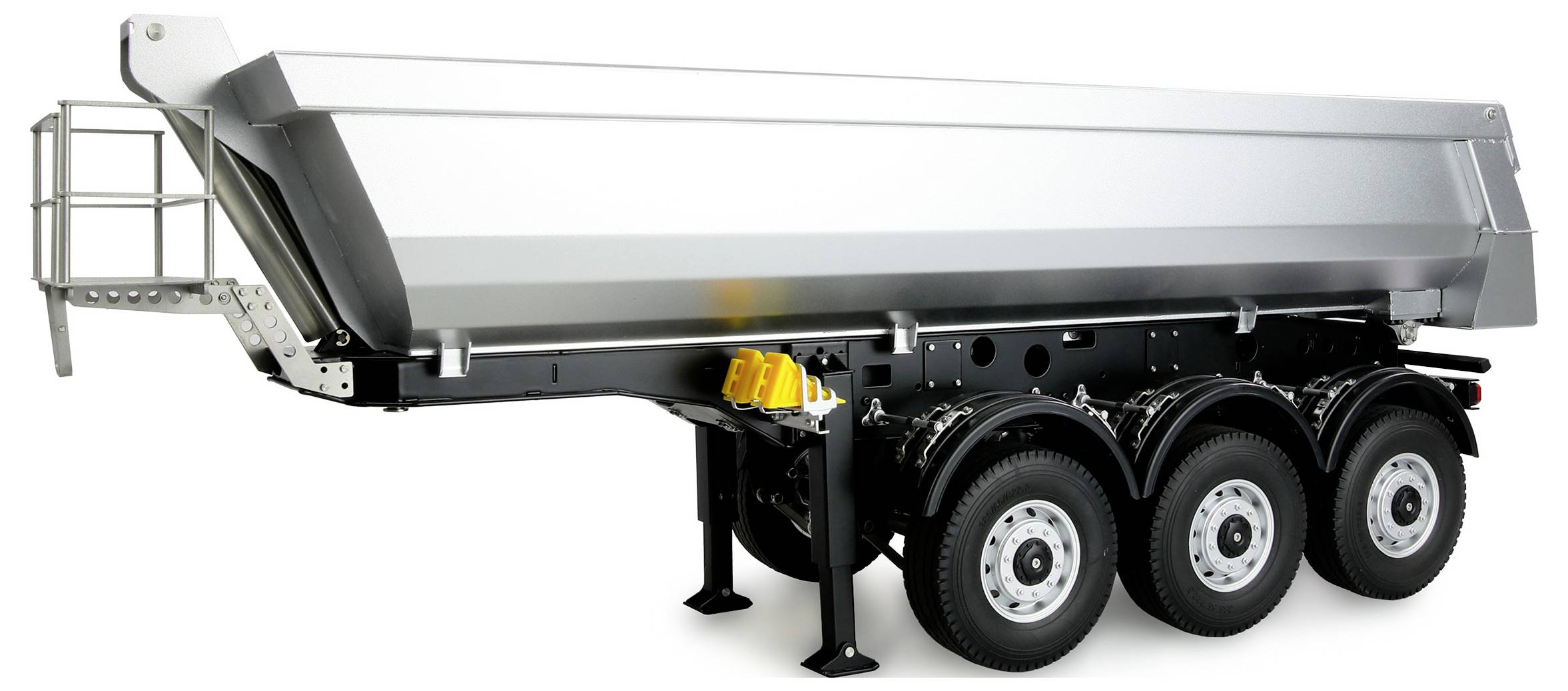

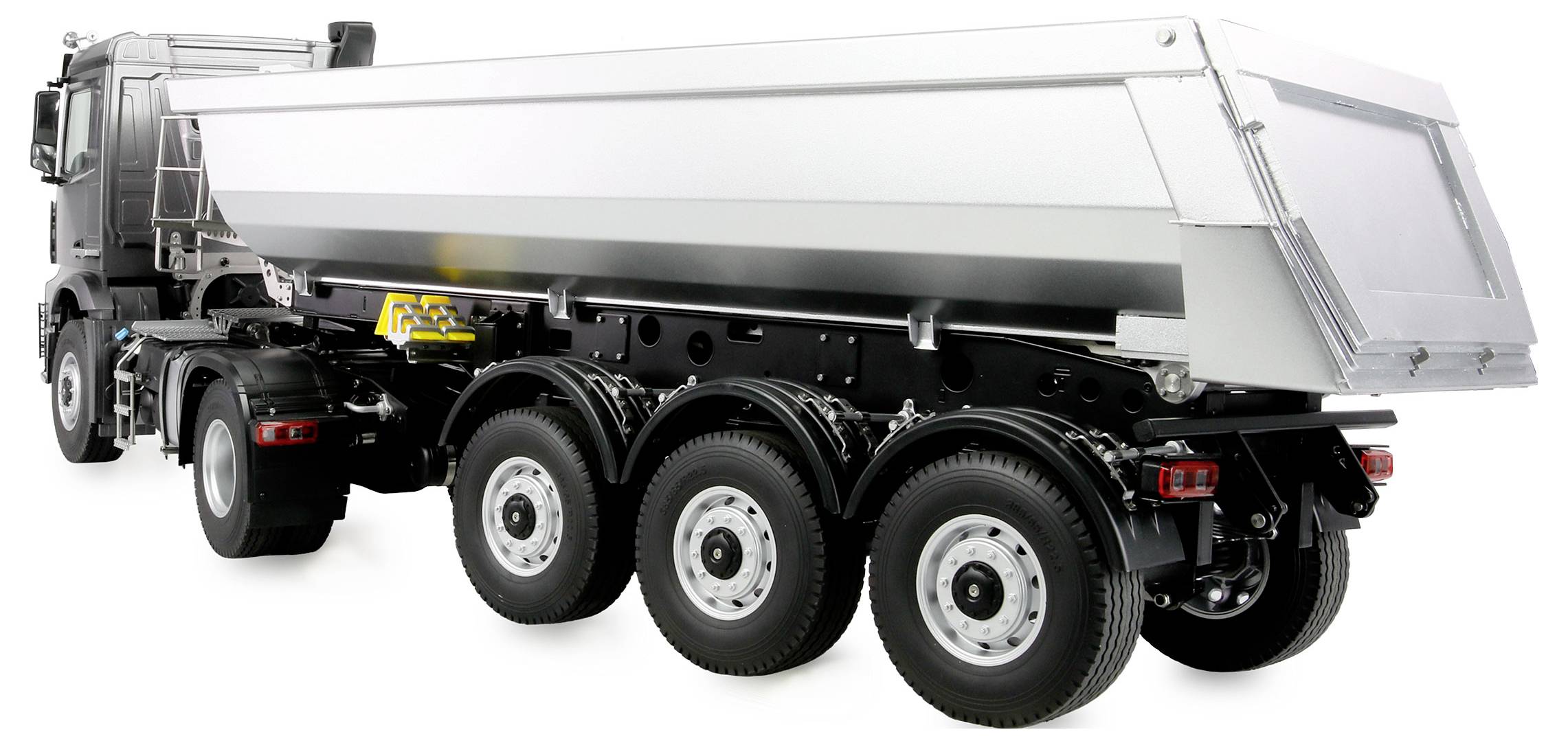

The tipping trough on the trailer can be lifted up to 47 degrees, whereby even heavy material of up to 15 kg can be reliably unloaded. The charging volume of the hollow is over 7926 cubic centimeters.

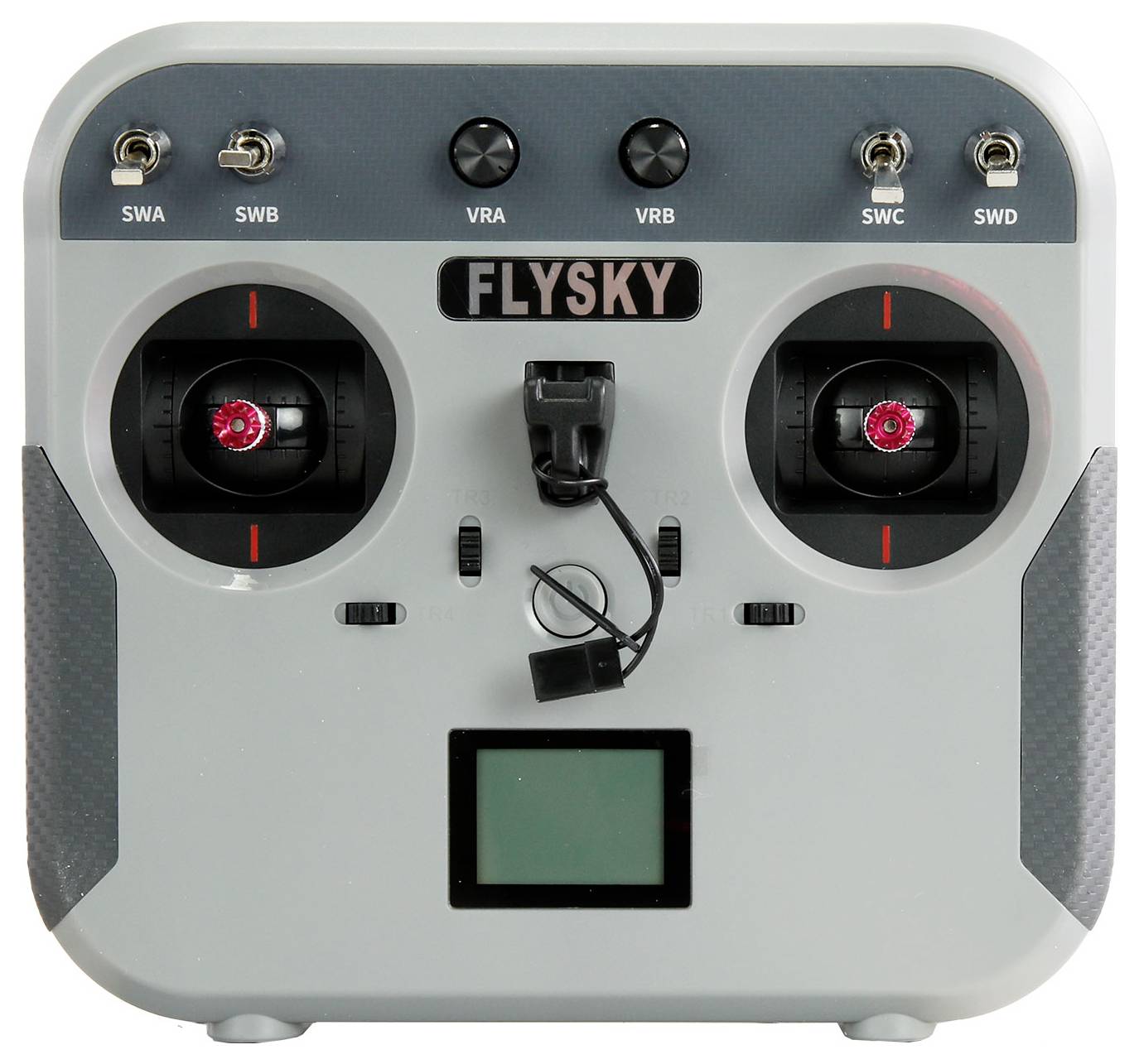

The delivery of the tractor includes a 7.4V Li-ion battery with 5000mAh capacity, which enables travel times between 40 and 60 minutes depending on the use and the manner of driving. The maximum speed is approximately 3-4 kilometers per hour. The accompanying 2.4 GHz remote control with eight channels has a range of more than 100 meters and offers all the necessary functions. All switches, mixers and control commands are factory-programmed and ready for use. Comes with an additional 3000 mAh battery for lighting and spindle drive.

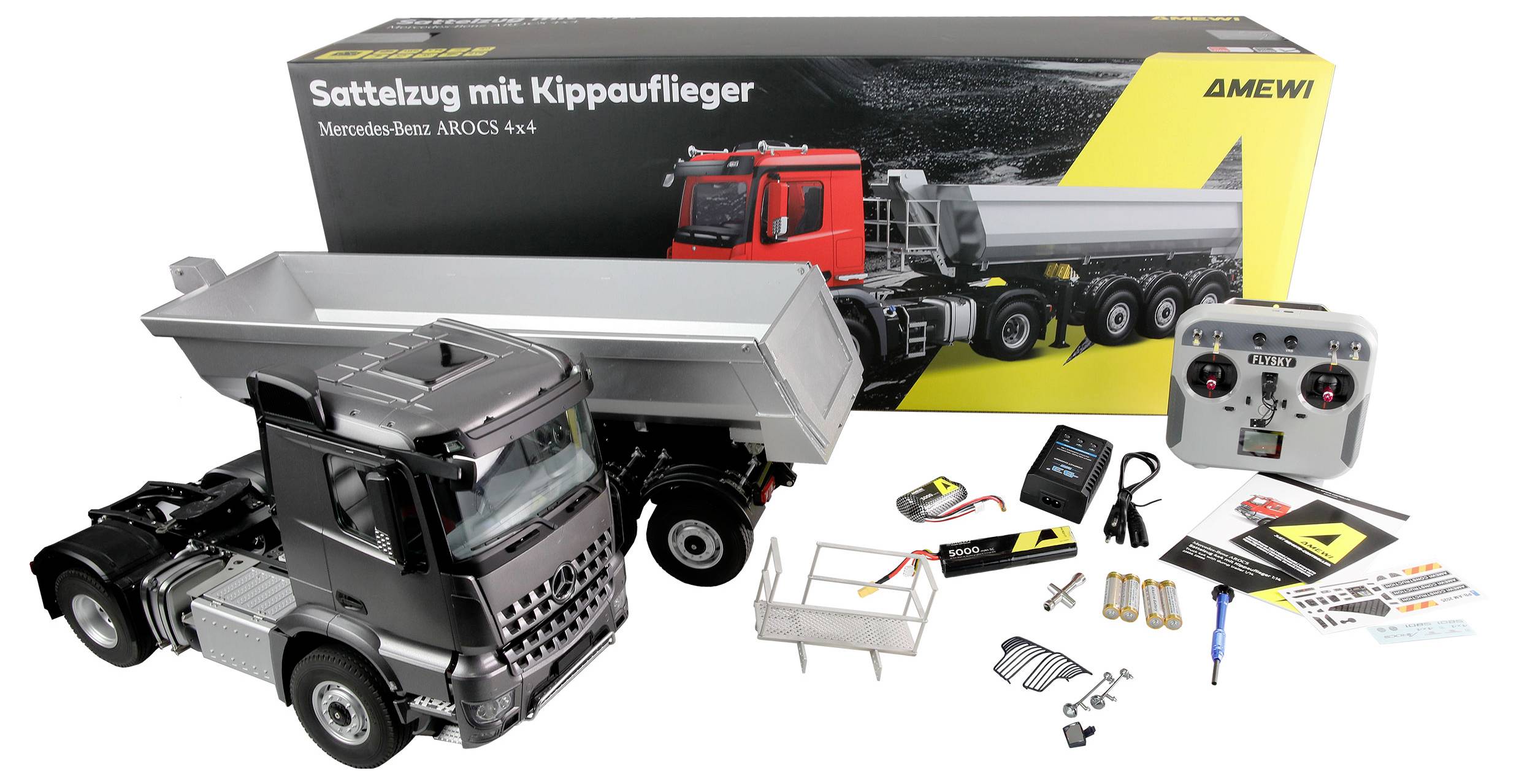

The model is delivered pre-assembled ready to drive in a safe transport packaging. Only a few attachment parts have to be fixed. After charging the rechargeable battery and inserting the batteries in the transmitter, there is nothing standing in the way of the first exit.


Technical data
Scale 1:1:14
Total length: 892mm.
Width: 208mm
Length of tractor: 462mm
Length of dump trailer: 655 mm
Height of tractor: 273mm
Tractor weight: 3.8kg
Semi-trailer weight 7.2 kg
Total gross weight: 11.1
Wheel base tractor: 256mm
Wheel base dump trailer 104mm
Front track width: 169mm
Rear track width: 169mm
Ground clearance: 24mm
Front angle: 23°
Start angle at rear 33°
Front outer diameter/width: 85mm/30mm
Rear wheels Double tires Outer diameter/width: 85mm/20mm
Wheels trailer outer diameter/width: 85mm/30mm
Rim diameter 46mm
2-speed metal gearbox
Front shocks: Leaf springs
Rear damper: Leaf springs
Brake: Electronic
Controller 25A high class brushed
Motor:540 brushed High Torque 55T
Tiltwing force 15 kg
Drive system: Cardan steel
Steering servo: Standard, metal gears
Maximum tractive force: ≤ 20kg
Main material: Metal
Battery compartment dimensions: 145x45x35mm

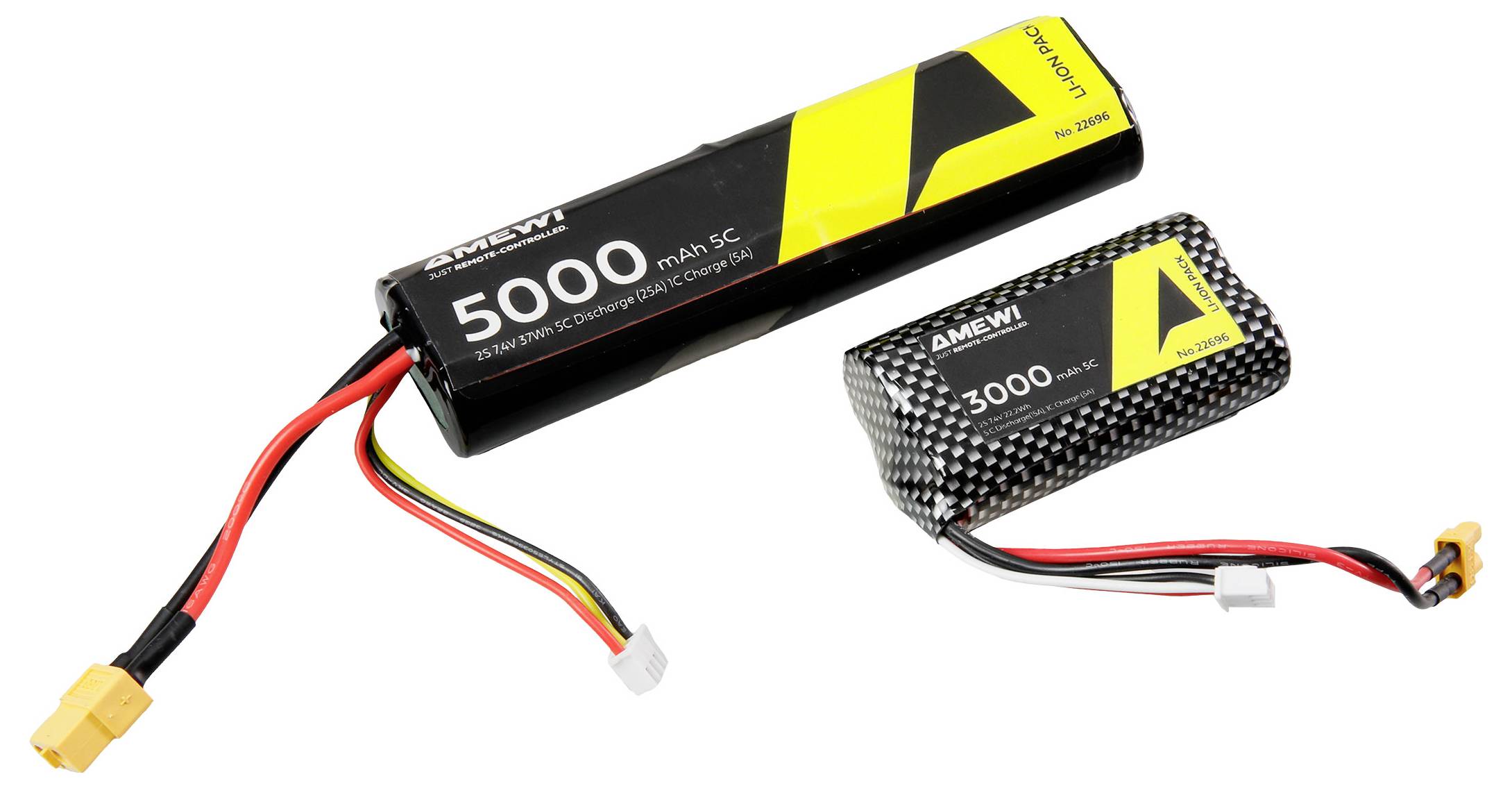

Li-Ion 2S 7.4V 5000mAh, 18650, 10C XT60 plug, 130x37x21mm, 200g
Li-Ion 2S 7.4V 3000mAh, 18650, 10C XT30 plug, 69x37x22mm, 101g
Travel time: 40-60 minutes
Top speed: 3-4km/h.
Remote control: 10-channel 2.4 GHz, 66 frequency channels, max. Frequency strength 15.7 dBm
Range +100m
B3/220V, 3x 800mAh output power
Charging time 2 hrs
