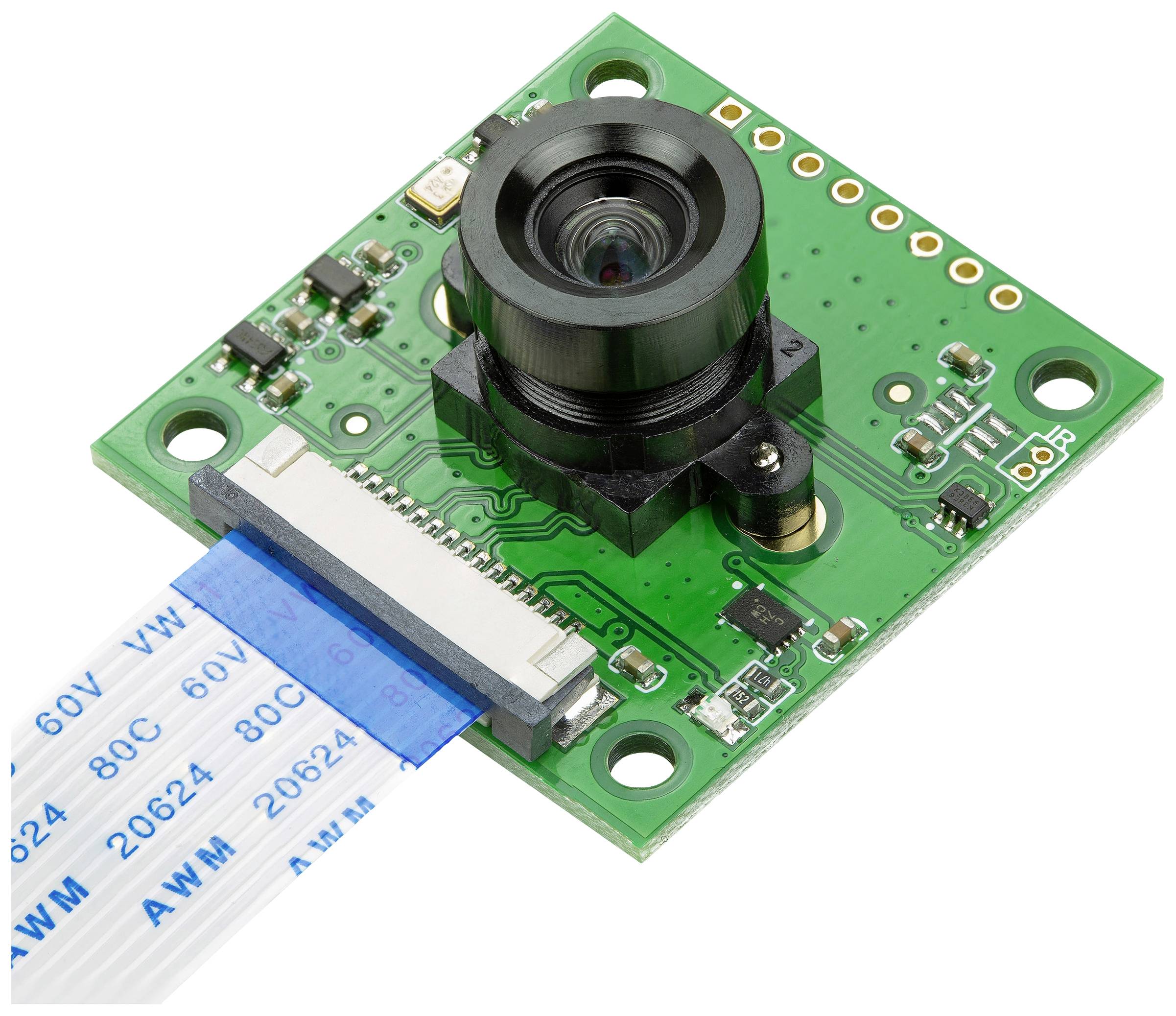

Arducam Camera unit MBS-SES-185-10
EAN:
Part number:
Item no:
Total (€ 139.99 / piece)
€ 139.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Sensor type: Sony IMX219 color CMOS with 8MP
- 2380 x 2464 pixels (active pixels), 3296 x 2512 pixels (total pixels)
- Sensor size 3.674 x 2.760 mm (1/4" format)
- Pixel size: 1.12 x 1.12 UM
- Video resolution: 1080p30, 720p60 and 640x480 p90
- Lens: M12 adjustable, tele to Fisheye
- Viewing angle:FOV 70° horizontal
- FOV: 1640 x 1232 up to 30fps, 3280 x 2464 up to 15fps
- Board size 36 x 36mm
- Integrated 650nm IR filter
- Peak current: 300 mA;
- Product type
Camera unit
- Length
36 mm
- Width
36 mm
- Manufacturer part #
MBS-SES-185-10
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205030 Arducam Camera unit MBS-SES-185-10
Description

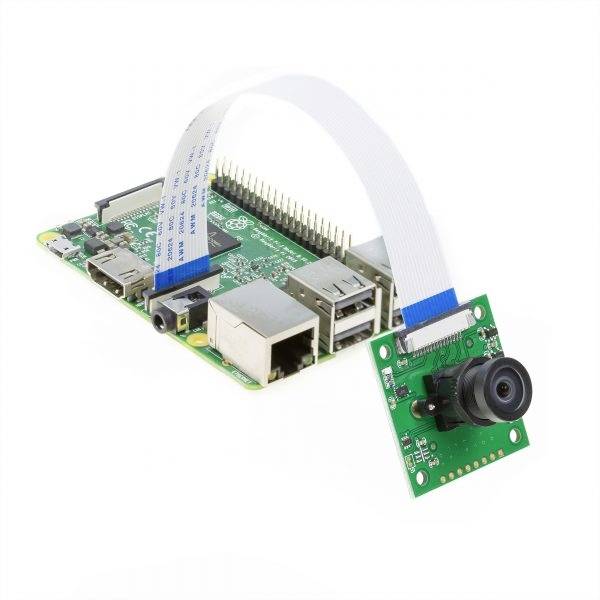

The ArduCAM team has released a number of camera modules for the Raspberry Pi, including 5MP and 8MP modules. They are fully compatible with the official version and are divided into standard version, optimized optical power version, miniature spy camera version, noir version, motorized IR cut version and programmable motorized focus camera version. These camera modules support all Raspberry Pi models and require a 15-to-22-pin cable or an adapter to work with the Pi Zero. The ArduCam team has developed a 8 MP camera compatible with Raspberry Pi. This is based on the same Sony IMX219 image sensor. Static images can be captured with 3280 x 2464 pixels, videos are supported with 1080p30, 720p60 and 640x480 p90. The special standard CSI interface is used for connection to the Pi. A fast development and evaluation board for sensors is possible via the USB 3.0, as in the case of the IMX219. This camera is an addition to meeting the requirements for various lens holders, the field of view (FOV), the depth of field (DOF) and the motorized IR-blocking filter for daylight and night vision. Application areas of this camera are e.g. mobile phones, PDAs, toys and other battery-operated products.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x ArduCAM 8MP M12 Pi camera
- 1x 15 cm 15 pin FPC cable
