Arducam Camera unit MBS-SES-185-17
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 39.99 / piece)
€ 39.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Sensor 5MP OV5647
- Still image 2592×1944 Max
- IR sensitivity: Integrated IR filter, only visible light
- Focus Type: Motorized focus
- Field of view 54° × 44° (H×V)
- Size of the plate: 25mm × 24mm
- Focus Distance 80 mm to infinity
- Product type
Camera unit
- Length
25 mm
- Width
24 mm
- Manufacturer part #
MBS-SES-185-17
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205037 Arducam Camera unit MBS-SES-185-17
Description

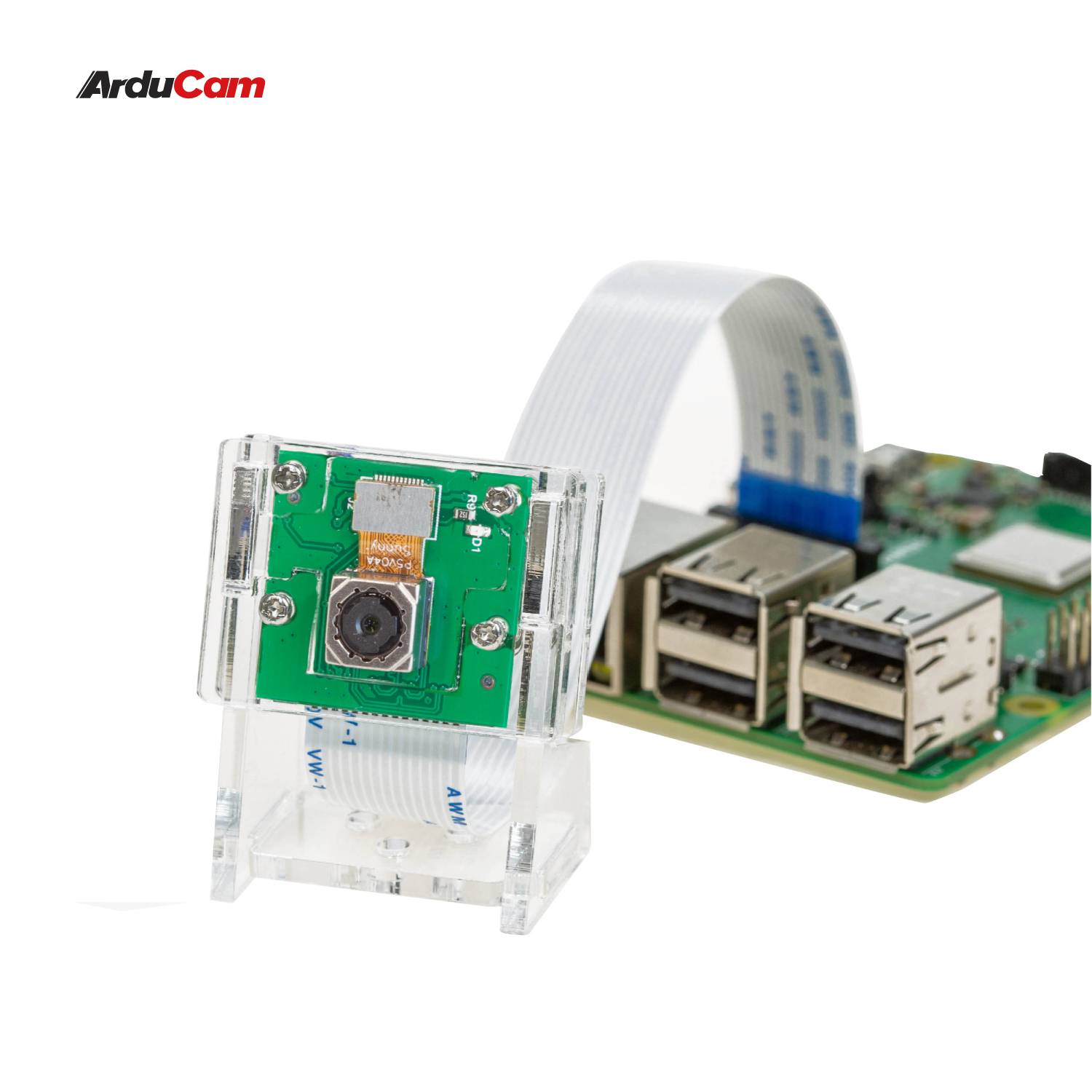

The ArduCAM team has released a number of camera modules for the Raspberry Pi, including 5MP and 8MP modules. They are fully compatible with the official version and are divided into standard version, optimized optical power version, miniature spy camera version, noir version, motorized IR cut version and programmable motorized focus camera version. These camera modules support all Raspberry Pi models and require a 15-to-22-pin cable or an adapter to work with the Pi Zero. The official camera modules have fixed focus lenses that are either glued or need to be manually adjusted. However, Arducam believes that your focus is important and has released this motorized focus camera for Raspberry Pi. With this Arducam camera module, you can use software to control the focus of a camera for the Raspberry Pi, so you can get closer and see WAS. To learn more about autofocus with Raspberry Pi camera modules, we recommend the following book: The complete guide (in English only).
Application
IoT cameras
Robot cameras
Wildlife Cameras
Other battery powered products
Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
This text is machine translated.
Application
IoT cameras
Robot cameras
Wildlife Cameras
Other battery powered products
Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
This text is machine translated.
Scope of delivery

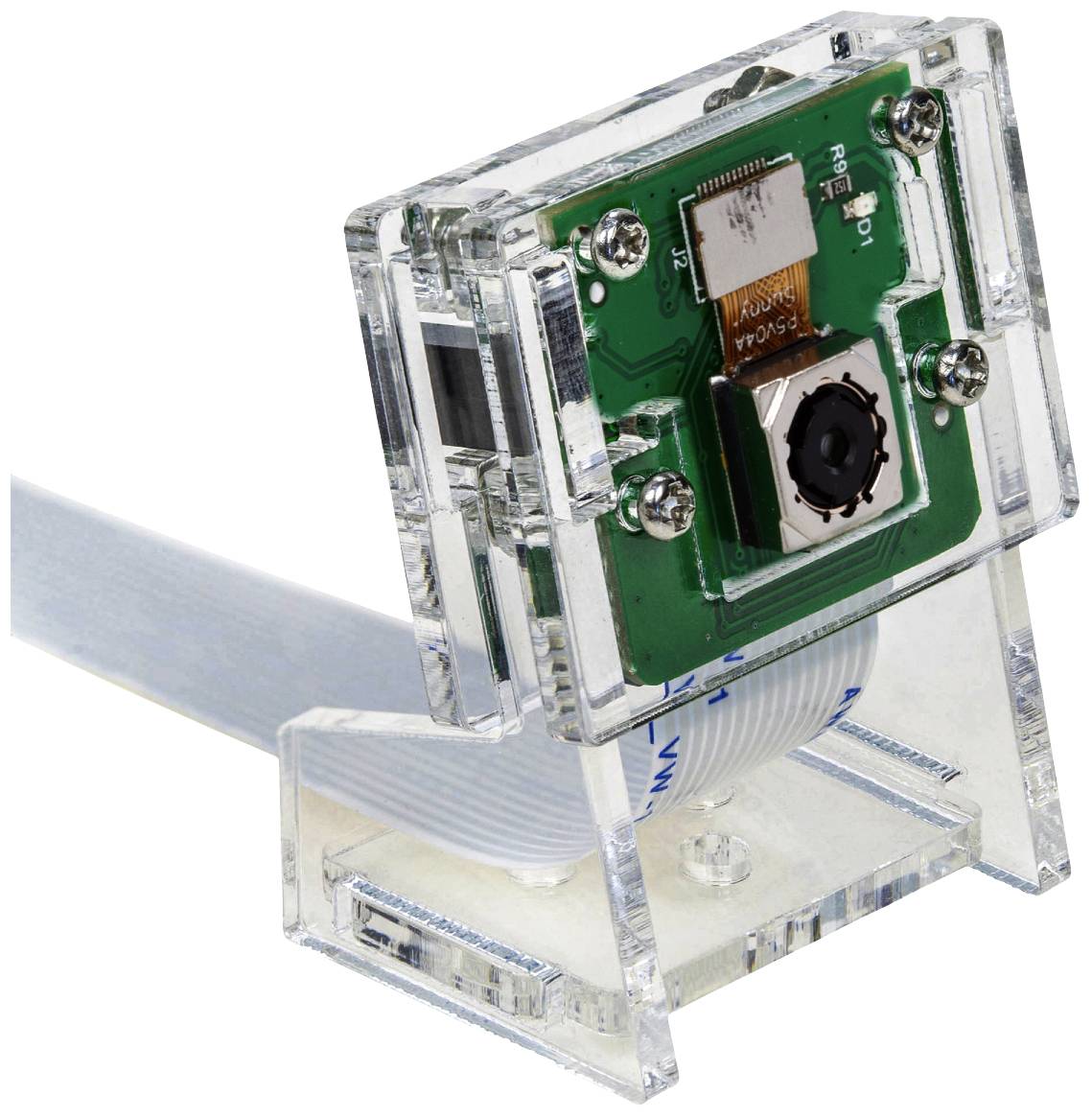

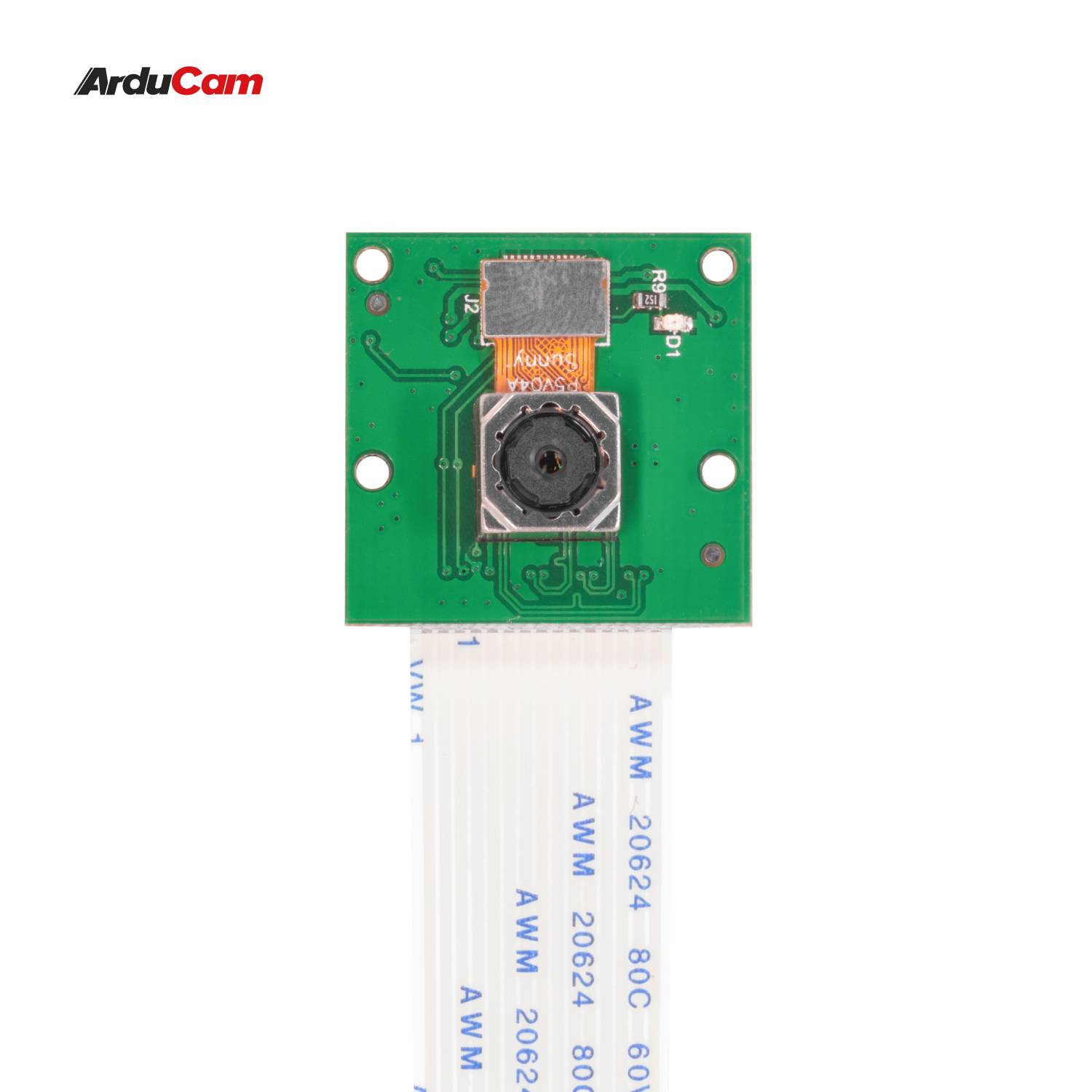

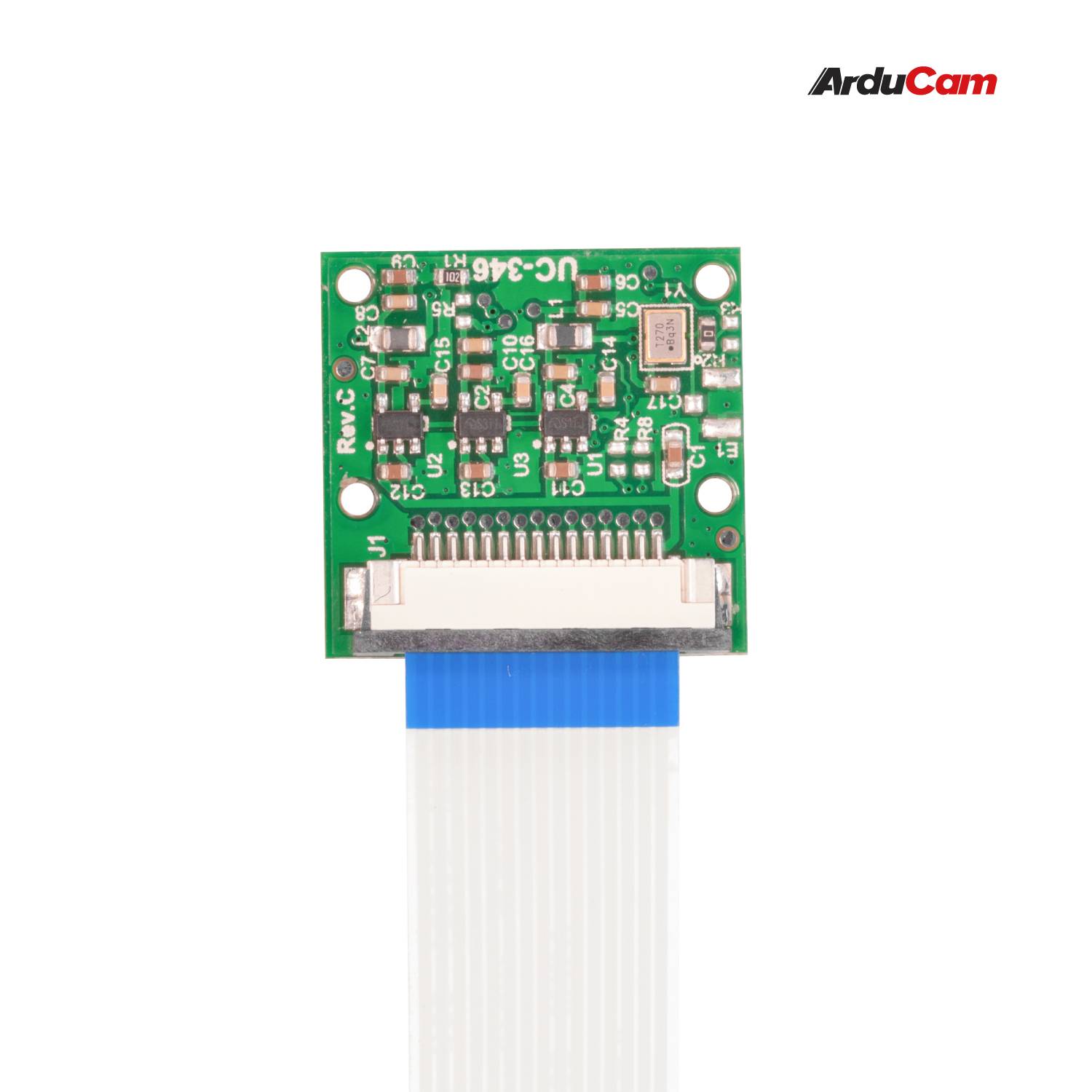

- 1x 5MP OV5647 camera board with motorized lens for Raspberry Pi
- 1x acrylic case for the camera module
- 1 x 15 cm long flexible ribbon cable for Raspberry Pi Model A and B (Pi Zero cable not included)
