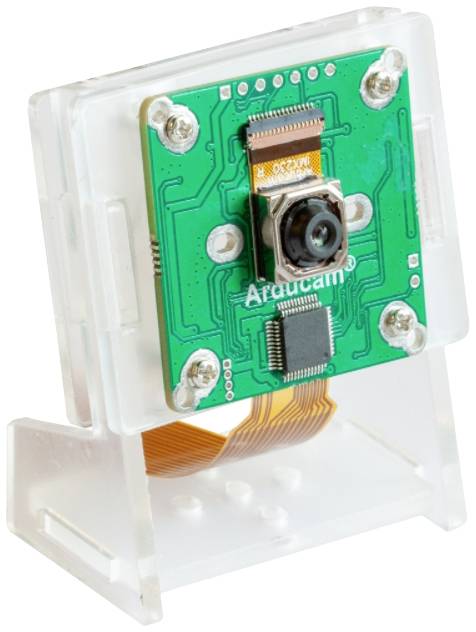

Arducam Camera unit MBS-SES-185-29
EAN:
Part number:
Item no:
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
Technical specifications
- Pixel size: 1.12um x 1.12um
- Optical size 1/2.4"
- Active pixels: 5344H × 4016V
- Lens specifications: Focal length: 4.77mm, F.NO: 1.75±5%, FOV: Horizontal 64 degree
- IR sensitivity: Integrated IR filter, only visible light
- Focus type: Motorized focus control, programmable focus control
- Image frequency: 5344×4012@9 fps, 3840×2160@10 fps, 2592×1944@15 fps, 2656×2004@30 fps, 1920×1080@30 fps, 1280×960@120 fps, 1280×720@120 fps, 640×480@120 fps
- Sensor output format RAW10
- ISP output format: Output of the picture formats JPG, YUV420, RAW, DNG; output of the video formats MJPEG, H.264
- Interface type 2-lane MIPI

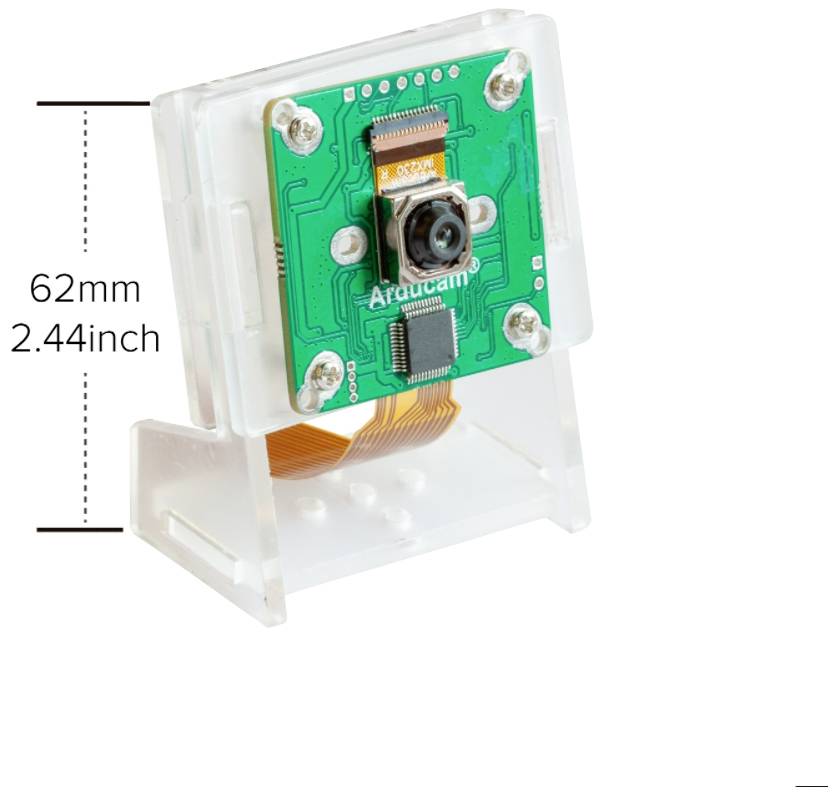

- Size of card: 38 x 38 mm
- Product type
Camera unit
- Manufacturer part #
MBS-SES-185-29
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205045 Arducam Camera unit MBS-SES-185-29
Description

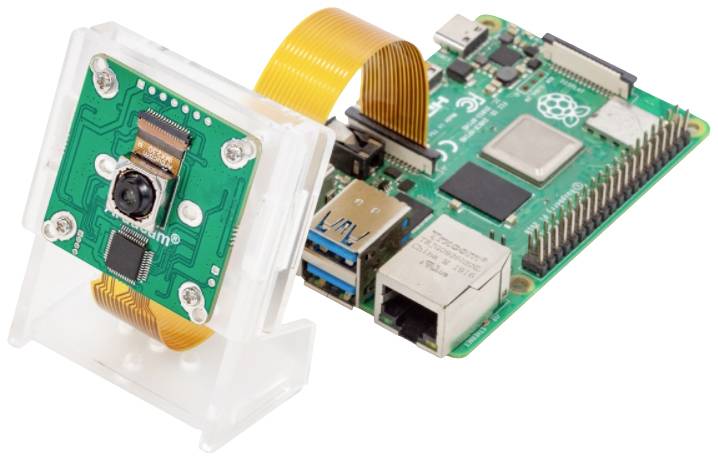

The ArduCAM team has released a number of camera modules for the Raspberry Pi, including 5MP and 8MP modules. They are fully compatible with the official version and are divided into standard version, optimized optical power version, miniature spy camera version, noir version, motorized IR cut version and programmable motorized focus camera version. These camera modules support all Raspberry Pi models and require a 15-to-22-pin cable or an adapter to work with the Pi Zero. Arducam Pivot is a Raspberry Pi camera solution designed to take advantage of its hardware ISP features. The Arducam Pivotty Camera Module gives users better performance and a wider range of camera and lens options. For a long time, Raspberry Pi users were limited to the use of official closed-source camera drivers and camera modules (V1/V2/HQ). Now Arducam has made it possible to offer a well-tuned ISP for pivot camera modules with automatic exposure, automatic white balance, lens shading correction, etc.
Applications
UAV/Drones/FPV camera
Machine vision
Robotics
IoT
Face detection
Defect recognition
This text is machine translated.
Applications
UAV/Drones/FPV camera
Machine vision
Robotics
IoT
Face detection
Defect recognition
This text is machine translated.
Features
- 21MP Sony IMX230 Exmor RS™ color sensor, up to 5344×4012@9 fps
- Automatic exposure, automatic white balance
- Programmable focus control
- Gstreamer support
- Future V4L2 support (Although the V4L2 interface is supported, only images can be captured in RAW format without ISP support)
- Compatible with all libcamera-based applications that are maintained by the RPi Foundation
Scope of delivery

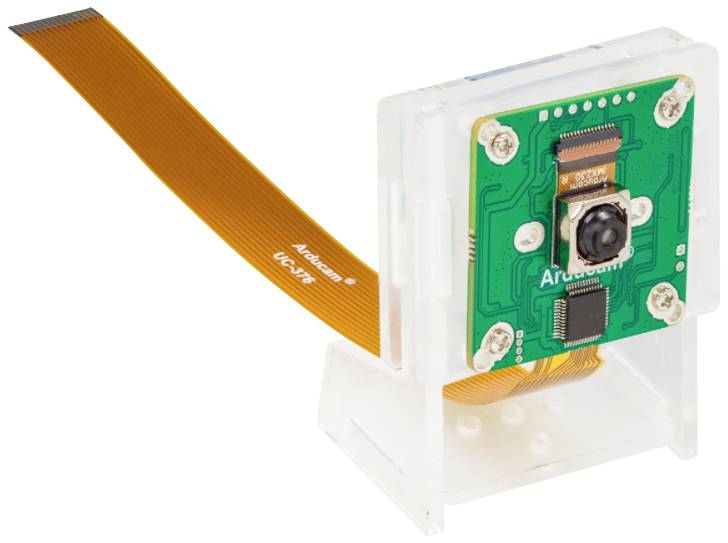

- 1x Arducam 21MP IMX230 ISP camera module
- 1x 150mm 22-pin 1.0mm FPC cable
- 1x 150mm 15pin 1.0mm on 22pin 0.5mm pitch FPC cable
- 1x Acrylic casing kit with mounting accessories
