Arducam Camera unit MBS-SES-192-02
EAN:
Part number:
Item no:
Total (€ 104.99 / piece)
€ 104.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Sony 8MP IMX219
- Optical format 1/4"
- Frame rate: 30fps@8MP, 60fps@1080p, 120fps@720p
- Data format RAW8/RAW10
- CFL 2.8mm
- F.NO: 2.2
- Focus type: Auto-focus/programmable
- Angle of view 77.6 diagonal
- IR: Built-in IR filter, only visible light
- Interface: MIPI CSI-2 2-lane
- FOV horizontal 65°
- FOV vertical 51°
- Focus distance: 80mm to infinity
- Product type
Camera unit
- Manufacturer part #
MBS-SES-192-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205050 Arducam Camera unit MBS-SES-192-02
Description
These cameras are specially developed for use with the Nvidia JETSON DEVELOPMENT KIT. The 8MP IMX219 cameras with various attachments are used here to cover as many requirements as possible with regard to autofocus, wide angle, low distortion etc. with the cameras. The ArduCAM Nvidia JECSON 8MP IMX219 motorized focus was mainly developed for the Nvidia JETSON NANO platform, but can also be used on other hardware such as ARM, DSP or FPGA. It works the same with the Raspberry Pi computer module, but not with the standard Raspberry Pi models. The special feature of this camera is that the lens focus can be programmed via the software. An open source code is provided by the ArduCAM team. This camera is used in, for example, unmanned vehicles, autonomous robot systems, intelligent video analysis, drone construction and mobile medical imaging.
This text is machine translated.
This text is machine translated.
Scope of delivery

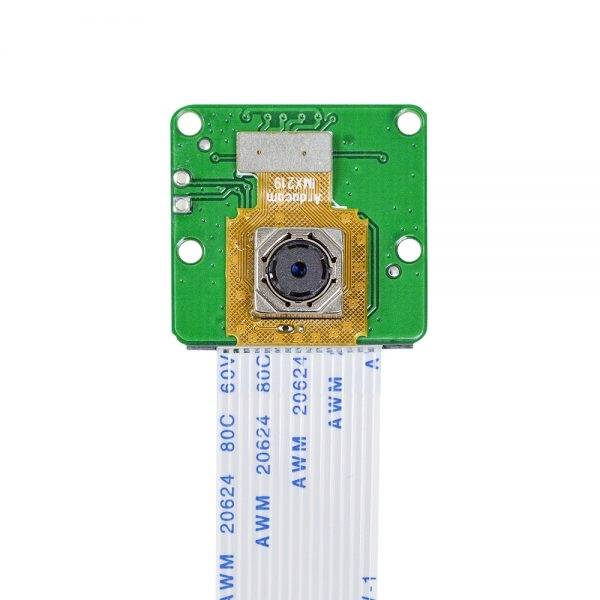

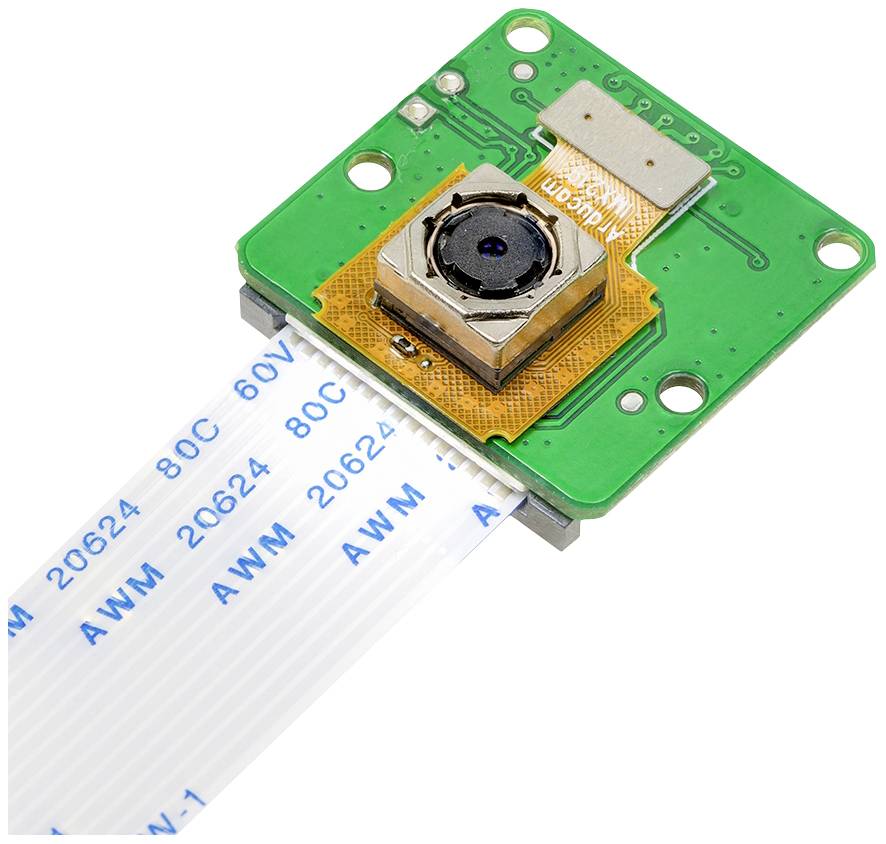

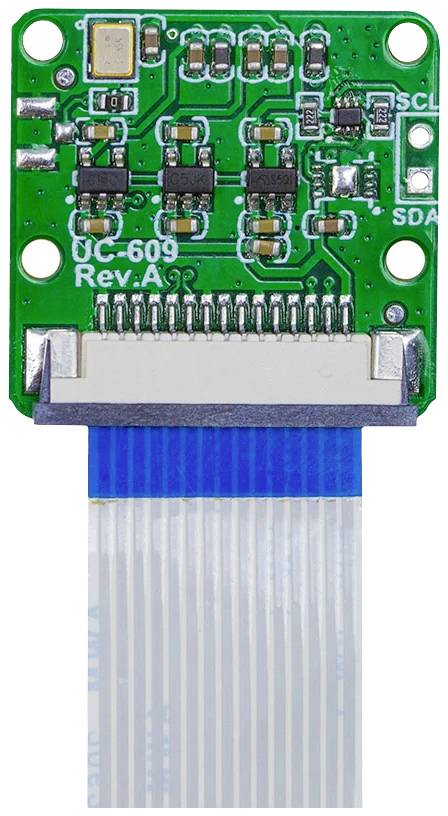

- 1x ArduCAM Nvidia JETSON camera 8MP IMX219 motorized focus
- 1x 1mm pitch 15cm 15-pin FPC cable
