Arducam Camera unit MBS-SES-268-02
EAN:
Part number:
Item no:
Total (€ 61.99 / piece)
€ 61.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

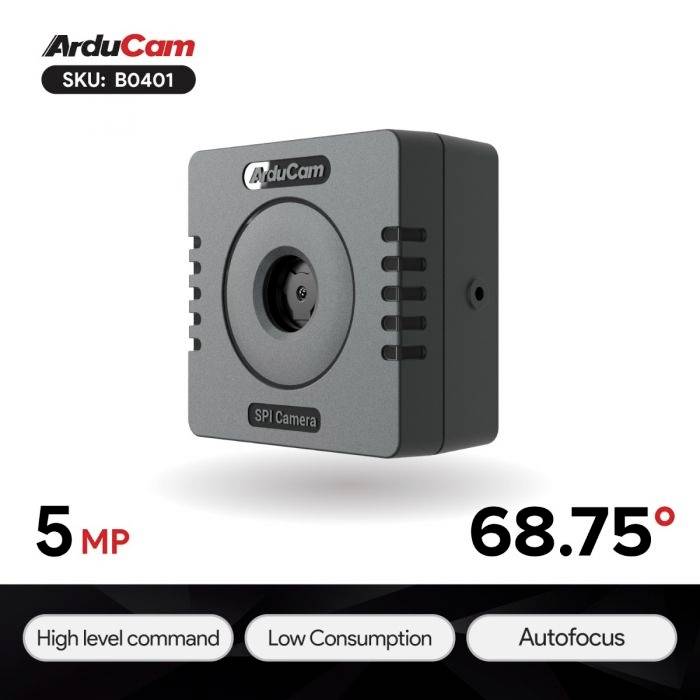

ArduCam Mega 5MP Colour Camera Module
- Easy to use: Built-in high level commands, the camera can be operated through API access by clicking buttons

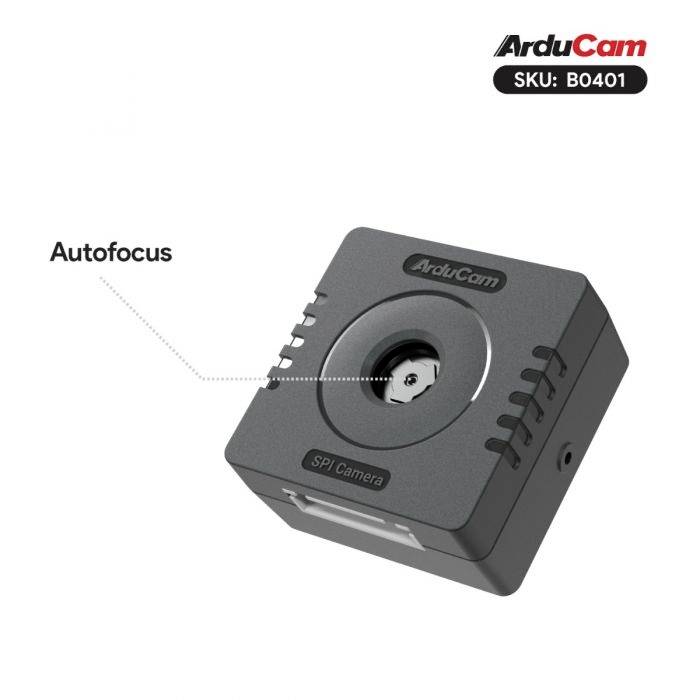

- Programmable auto focus: Equipped with an auto-focus lens that can adjust the auto-focus at different distances. Suitable for IoT activities
- Multiplexing: Up to four cameras to an MCU using a Multi Camera Adapter Board. Simultaneous recording with sequential reading
- Open source SDK: Fully open source with MIT license, a thin architecture with a hardware abstraction layer that allows you to add a new MCU
- One fit All: Fits any microcontroller with a single standard SPI interface (native or mimic). 8bit, 16bit or 32bit, ARM, RISC-V or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas and more
Technical specifications
- Optical size: 1/4''
- Speed 8 MHz
- Number of effective pixels: 2592x1944
- Power supply 3.3V/5V
- Interface: SPI (4-wire)
- Shutter trigger type: Rolling shutter
- Colour filters: Colour
- Power consumption (idle/working): 182mW-650mW
- Field of view 68.75°(D)
- F.NO F2.0
- Lens type: Standard lens
- Focal length: 3.3 mm
- Focus distance 8cm-INF
- Current (idle/working): 55mA-154mA
- OUTPUT FORMAT RGB/YUV/JPEG
- Camera board size: 33 x 33 x 17 mm
- Product type
Camera unit
- Length
33 mm
- Width
33 mm
- Manufacturer part #
MBS-SES-268-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205107 Arducam Camera unit MBS-SES-268-02
Description
The Mega series from ArduCam contains the latest products. Thanks to the enormous stability and accuracy and the open-source API functions, projects can be implemented even more efficiently. The application range of the image sensor has also been expanded. In addition, this camera has been equipped with an autofocus lens, so projects can be realized at different distances, without manual focusing.
Applications: Object monitoring, space travel, environmental monitoring, dynamic detection, IoT automation.
This text is machine translated.
Applications: Object monitoring, space travel, environmental monitoring, dynamic detection, IoT automation.
This text is machine translated.
Scope of delivery
- 1x Arducam Mega 5MP SPI camera
- 1x 300 mm 6-pin cable
