Arducam Lens MBS-Z-142-04
EAN:
Part number:
Item no:
Total (€ 149.99 / piece)
€ 149.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

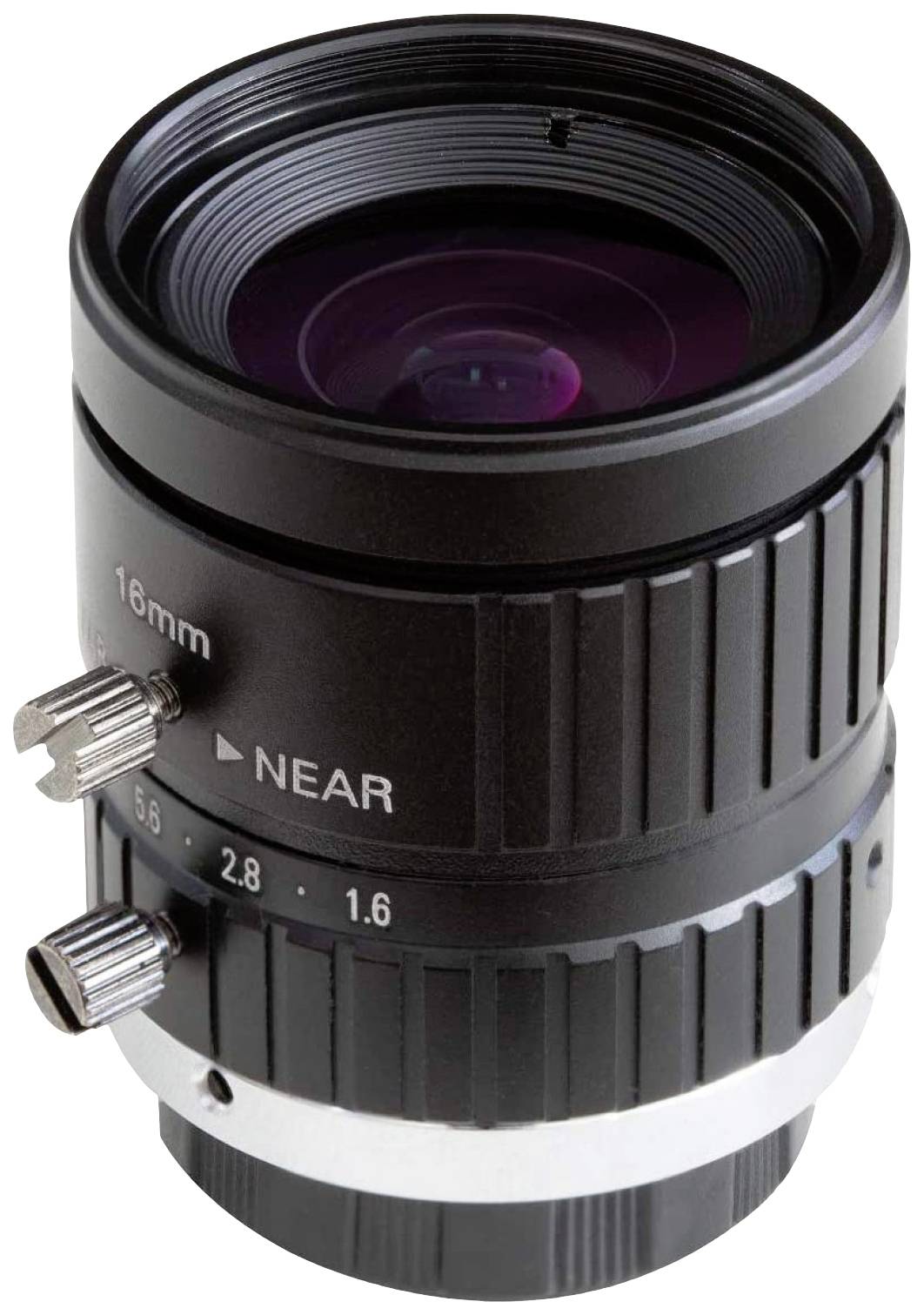

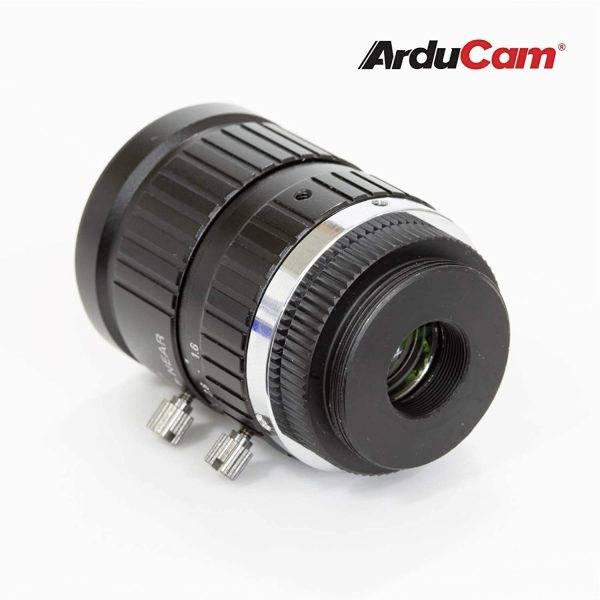

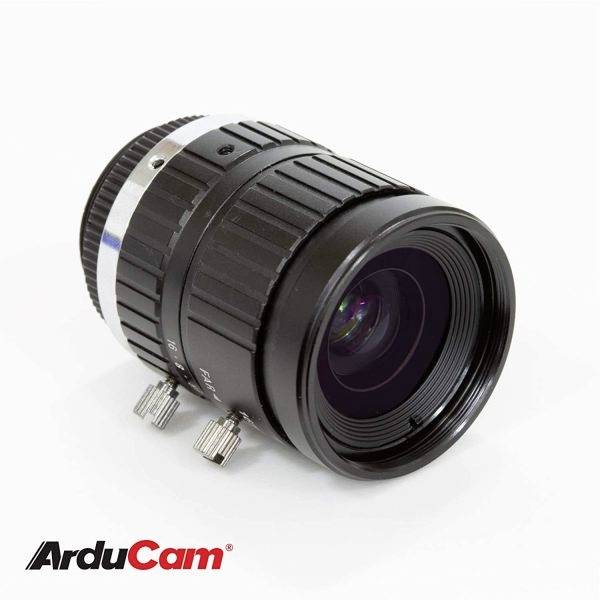

ArduCam Lens C-Mount 24° 16mm
- Compatible with any Pi/Jetson/Arduino camera with a C-mount lens
- Wide focal length range from 3.2 mm to 50 mm
- Adjustable aperture options
- Selective lens bundle with ultra-wide angle options
- Optional zoom control
Technical specifications
- Optical format: 2/3″
- Focal distance: 16 mm
- Adjustable faceplate F1.6-F16
- Field of view (FOV): 30.8°(H)×23.4°(V), 24°(H) on 1/2.3″ IMX477 High Quality Camera
- Focus Type: Manual
- C-mount connection
- Rear focal length 17.53 mm
- Mod 0.2 m
- Dimensions: Ø33 mm × 36.5 mm
- Weight 110.7 g
- Product type
Lens
- Length
36.5 mm
- Width
33 mm
- Manufacturer part #
MBS-Z-142-04
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205068 Arducam Lens MBS-Z-142-04
Description

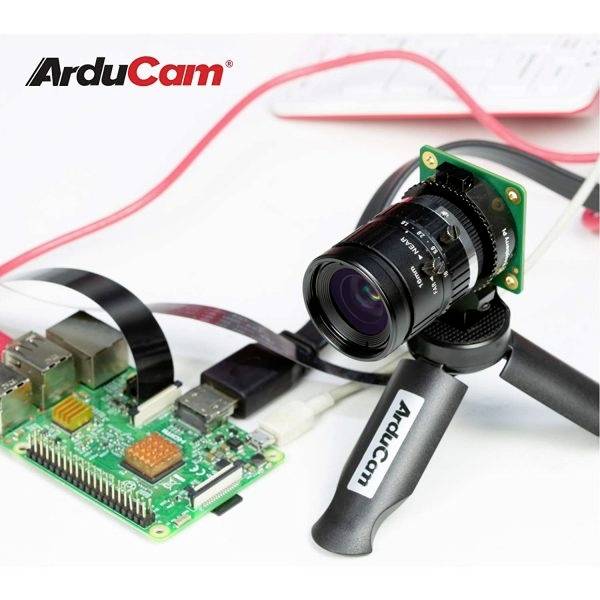

ArduCam lenses have various types of connectors. They were built for RPi cameras and any embedded systems. Each offers a wide range of focal lengths and FOVs. They are compatible with all Pi/Jetson/Arduino cameras featuring an M12/C mount lens.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x ArduCam lens
