Arducam Lens MBS-Z-143-06
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Highlights & Details

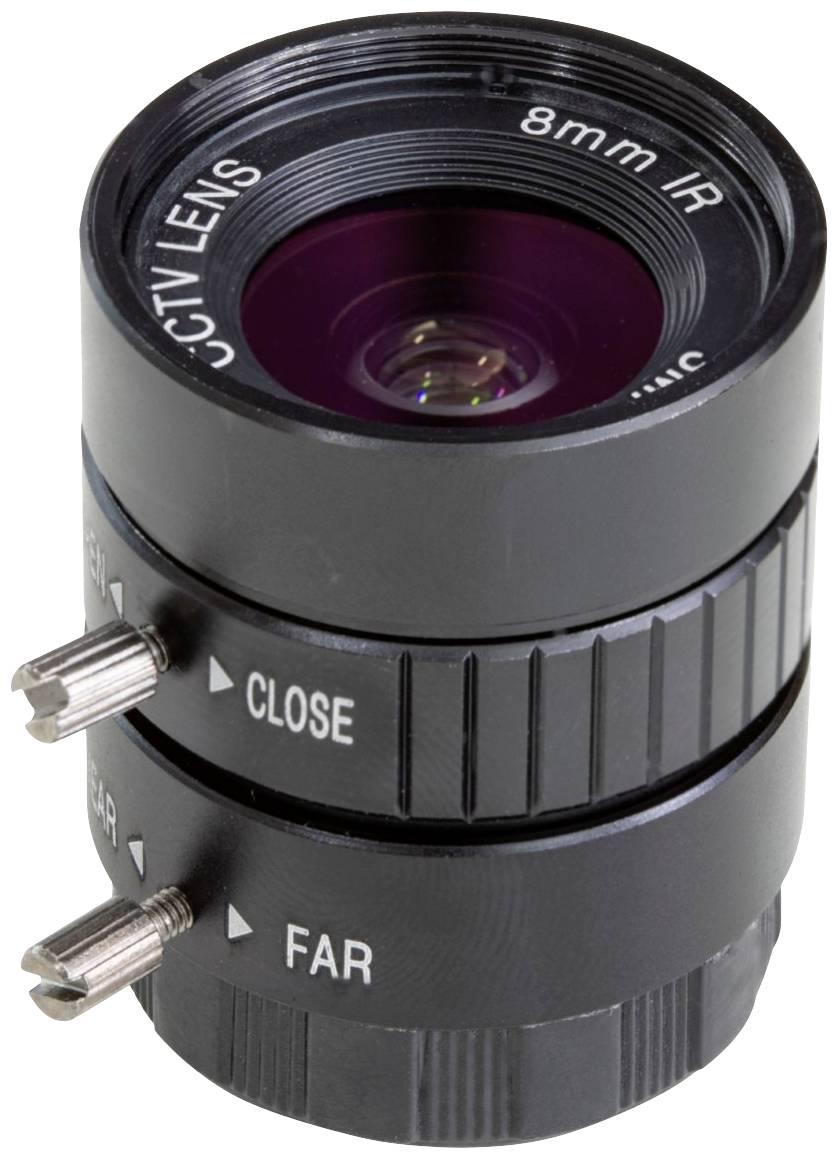

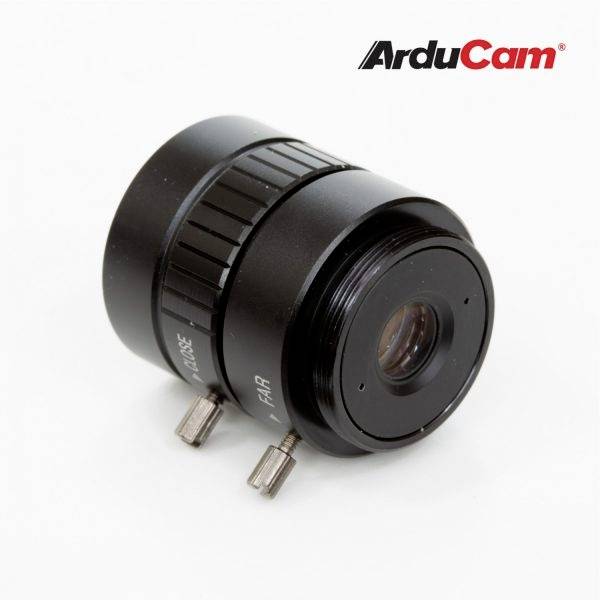

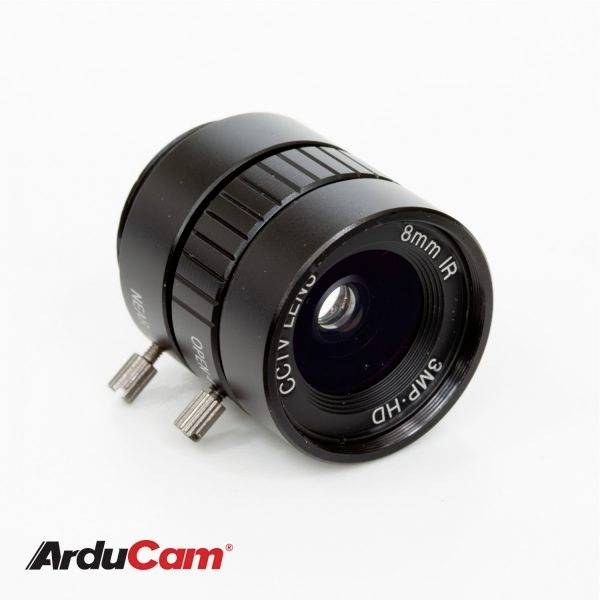

ArduCam Lens CS-Mount 50° 8mm
- Compatible with any Pi/Jetson/Arduino camera with a C-mount lens
- Wide focal length range from 3.2 mm to 50 mm
- Adjustable aperture options
- Selective lens bundle with ultra-wide angle options
- Optional zoom control
Technical specifications
- Optical format: 1/2.3″
- Focal distance: 8 mm
- Aperture: F1.2
- Field of view (FOV): 50°(H) on Raspberry Pi High Quality Camera, 30°(H) on Raspberry Pi V1/V2 camera
- Focus Type: Manual
- CS mount
- Rear focal length 7.53 mm
- Mod 0.2 m
- Dimensions: Ø30 × 29.5 mm
- Weight: 53 g
- Product type
Lens
- Length
29.5 mm
- Width
30 mm
- Manufacturer part #
MBS-Z-143-06
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205064 Arducam Lens MBS-Z-143-06
Description
ArduCam lenses have various types of connectors. They were built for RPi cameras and any embedded systems. Each offers a wide range of focal lengths and FOVs. They are compatible with all Pi/Jetson/Arduino cameras featuring an M12/C mount lens.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x ArduCam lens
