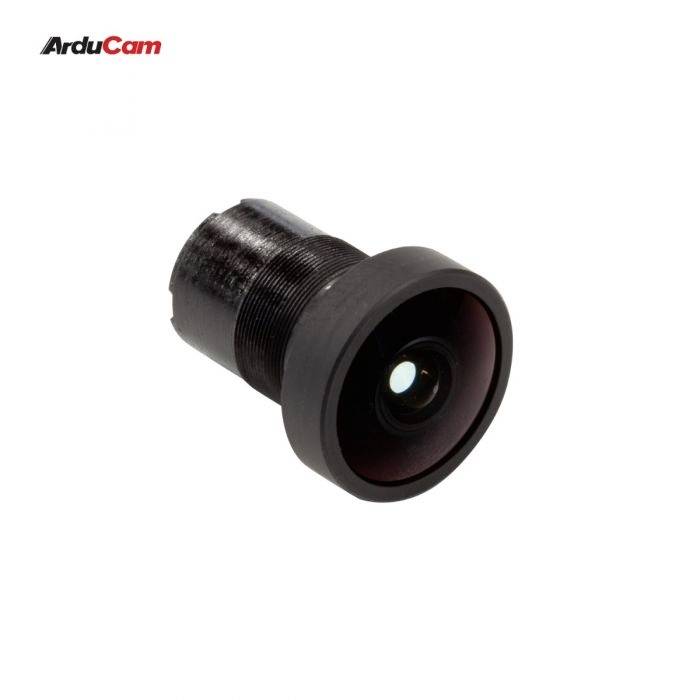

A small ArduCam camera with a black casing and a round lens in the centre, on a white background.

A small ArduCam camera with a black casing and a round lens in the centre, on a white background.

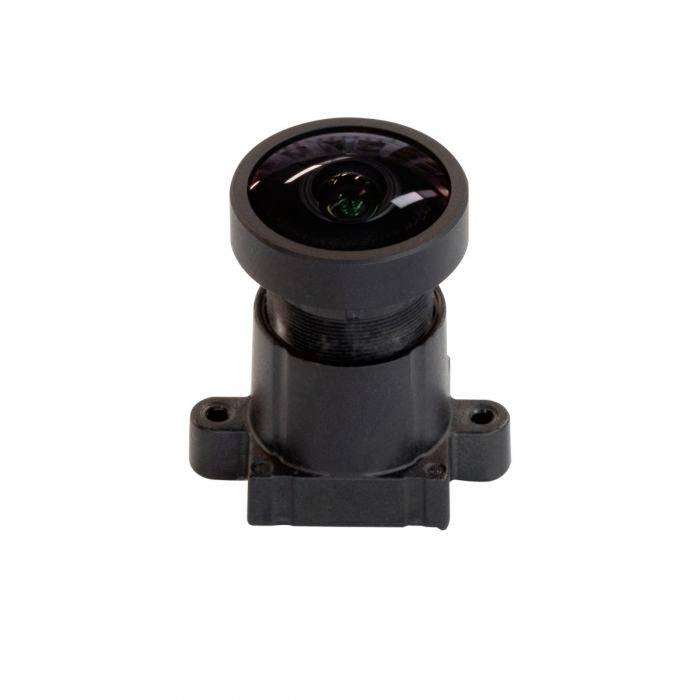

A small, round camera with a wide lens, mounted on a rectangular base, suitable for surveillance or image capture.

1/2

Arducam

Dispatches on Fri, 25 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Report legal concerns

Technical specifications

Resolution 8MP+
Optical format: 9.0 mm image circle (up to 1/1.8")
Effective focal length 3.7 mm
Rear focal length 10.39 mm
HFOV at 1/1.8″ camera: 120°
HFOV at 1/2.3″ camera: 100°
IR sensitivity: With 650nm IR filter, sensitive to visible light
Construction:4G3P+IR
Aperture: F1.7
Mod 0.3 m
M12 x P0.35 connection
Length Holder Height:14.5 mm Standard
Dimensions 17 x 22.97 mm
Weight: 8.5 g

Product type: Lens

Length: 22.97 mm

Width: 17 mm

Manufacturer part #: MBS-Z-144-22

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3205109 Arducam Lens MBS-Z-144-22

Description

ArduCam lenses have various types of connectors. They were built for RPi cameras and any embedded systems. Each offers a wide range of focal lengths and FOVs. They are compatible with all Pi/Jetson/Arduino cameras featuring an M12/C mount lens.

This text is machine translated.

Scope of delivery

1x ArduCam lens
