Name: Arducam Lens MBS-Z-144-23
Brand: Arducam
SKU: 3205110
Availability: BackOrder

Lens with lens and adapter by Arducam. The lens is labelled '3.5mm, 1/1.8"', 8MP', with the adapter below marked 'Arducam Adapter'.

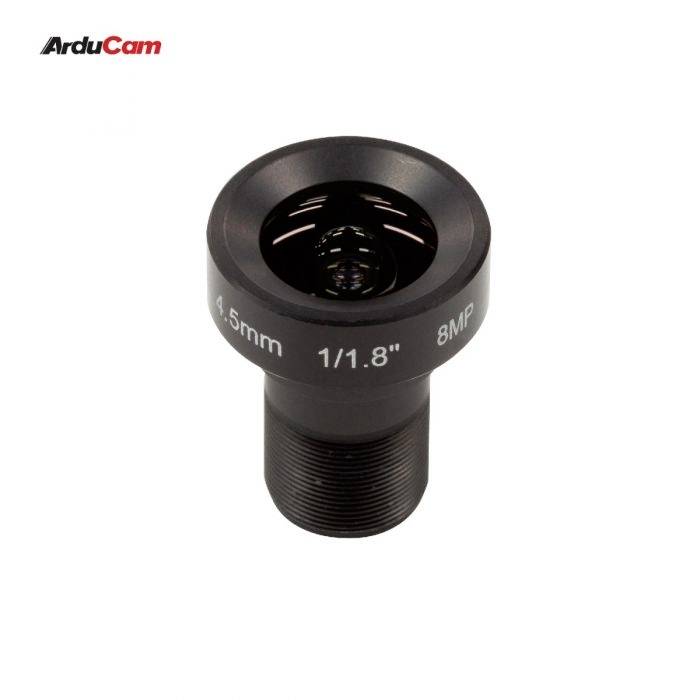

Black camera lens with inscription '4.5mm 1/1.8" 8MP' from ArduCam.

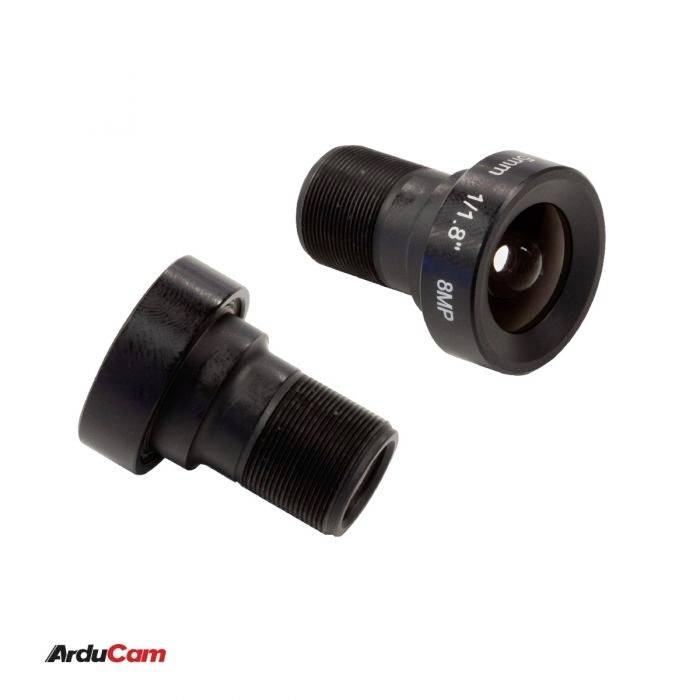

Two black camera lenses from ArduCam, labelled with '1/1.8" 8MP', on a white background.

1/3

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Resolution 8MP+
Optical format: ~9.0mm image circle (up to 1/1.8")
Effective focal length 4.5 mm
Rear focal length 7.64 mm
HFOV at 1/1.8″ camera: 90°
HFOV at 1/2.3″ camera: 75°
IR sensitivity: With 650nm IR filter, sensitive to visible light
Construction:8G+IR
Aperture: F2.0
Mod 0.3 m
M12 x P0.5 fastening
Length of bracket Height: 10 to 12 mm
Dimensions 20 x 25.21 mm
Weight: 12.5 g

Product type: Lens

Manufacturer part #: MBS-Z-144-23

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3205110 Arducam Lens MBS-Z-144-23

Description

ArduCam lenses have various types of connectors. They were built for RPi cameras and any embedded systems. Each offers a wide range of focal lengths and FOVs. They are compatible with all Pi/Jetson/Arduino cameras featuring an M12/C mount lens.

This text is machine translated.
