Name: Arducam Lens MBS-Z-144-24
Brand: Arducam
SKU: 3205111
Availability: BackOrder

'Assembly Instructions for Arducam Lens: Lens on top, Adapter below, connected by red arrow.'

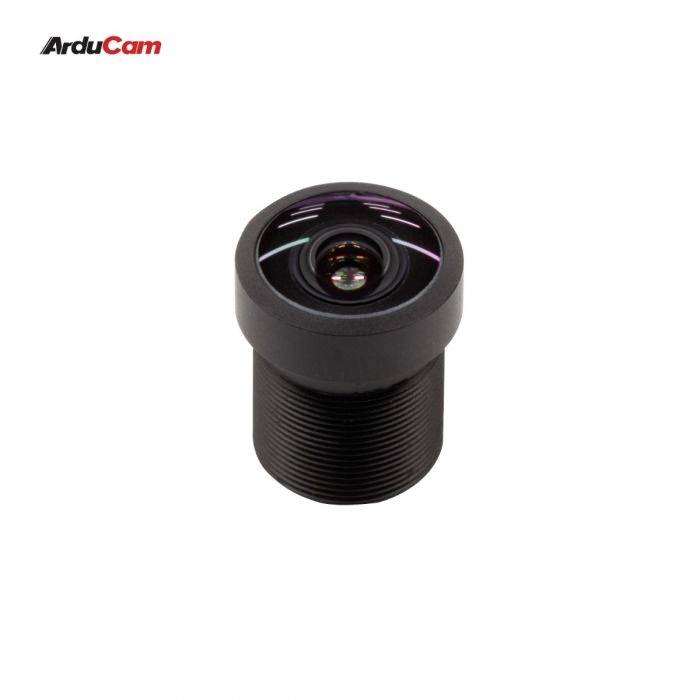

Black ArduCam lens, suitable for Raspberry Pi camera modules, shown on a white background.

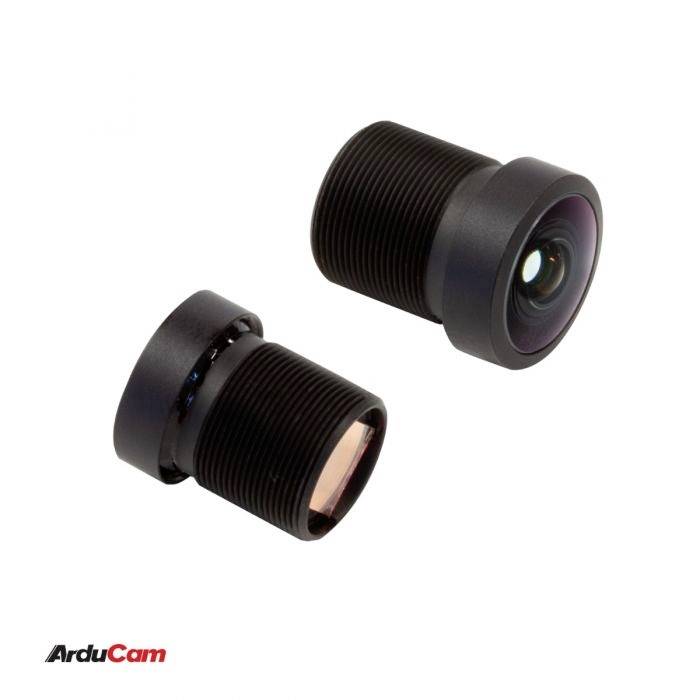

Two black camera lenses from ArduCam, one with a transparent lens and the other with a purple sheen.

1/3

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Resolution 8MP+
Optical format: 9.2 mm image circle (up to 1/1.7")
Effective focal length 3.93 mm
Rear focal length 7.35 mm
HFOV at 1/1.8″ camera: 112°
HFOV at 1/2.3″ camera: 90°
IR sensitivity: With 650nm IR filter, sensitive to visible light
Layout:6G+IR
Aperture: F2.0
Mod 0.1 m
M12 x P0.5 connection
Length of bracket Height: 12 to 14.5 mm
Dimensions 14 x 17.09 mm
Weight: 7 g

Product type: Lens

Length: 17.09 mm

Width: 14 mm

Manufacturer part #: MBS-Z-144-24

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3205111 Arducam Lens MBS-Z-144-24

Description

ArduCam lenses have various types of connectors. They were built for RPi cameras and any embedded systems. Each offers a wide range of focal lengths and FOVs. They are compatible with all Pi/Jetson/Arduino cameras featuring an M12/C mount lens.
