AS Schwabe 22623 Cable reel 33 m Black PG plug
EAN:
Part number:
Item no:
Highlights & Details

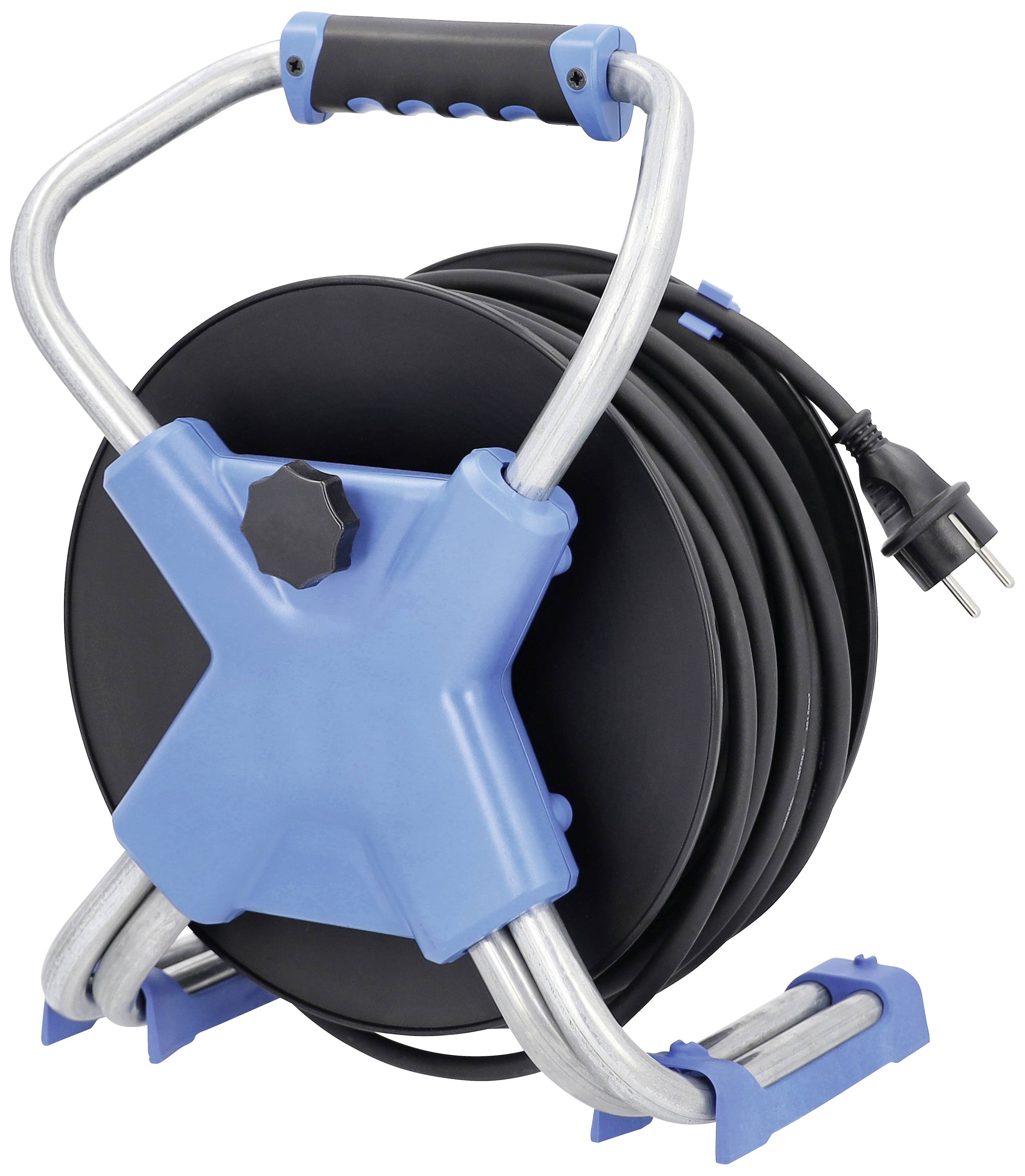

Cable drum Xperts safety plug
- High-breaking drum housing
- Shock-absorbing X-double pipe frame
- Non-slip 2-component handle
- Rubber flexible cable
- Oil-resistant
Technical specifications
- Product type
Cable reel
- Cable length
33 m
- Type A
PG plug
- Inputs
16 A
- Connector version
straight
- Type B
PG socket
- Outlets
3
- Cable colour
Black
- Cable standard
H07RN-F 3G 2,5 mm²
- Used at
Outdoors
Indoors
- Material
Neoprene
Gum elastic
- Cable features
Cold-resistant
Harmonised
Oil-resistant
UV-resistant
- Factory colour
Black
- Nominal input voltage
230 V
- Nominal current (details)
16 A
- Power rating
230V, 16A, max. 3500 W
- Load capacity (wound/unwound)
3x 1000W / 3x 3500 W
- Reel diameter
28.5 cm
- Type
2.5 mm².
- Weight
8.65 kg
IP44
- Standards
EN61242 / GS-ET35
- Outputs
3 protective contact sockets 230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2249514 AS Schwabe 22623 Cable reel 33 m Black PG plug
Description
The Xperts CEE cable reel from as - Schwabe convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch. The flexible, mechanically resilient cable is oil-resistant, flame-resistant and suitable for temperature ranges from -25 to +60°C. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.
This text is machine translated.
This text is machine translated.
Features
- Drum body made of high-breaking special plastic with stable X-double pipe frame
- RN cables have a rubber insulating sleeve and are covered with black neoprene rubber
- Oil-resistant and for use in outdoor areas and on farms
- Withstand high demands in dry and damp rooms as well as in the water used
- Can be used permanently outdoors
- Ergonomically designed, non-slip 2-component handle
Hints
Approved for heavy construction site use
