AS Schwabe 23992 Cable reel 25 m Yellow CEE phase inverter plug (5-pin, 16 A)
EAN:
Part number:
Item no:
Highlights & Details

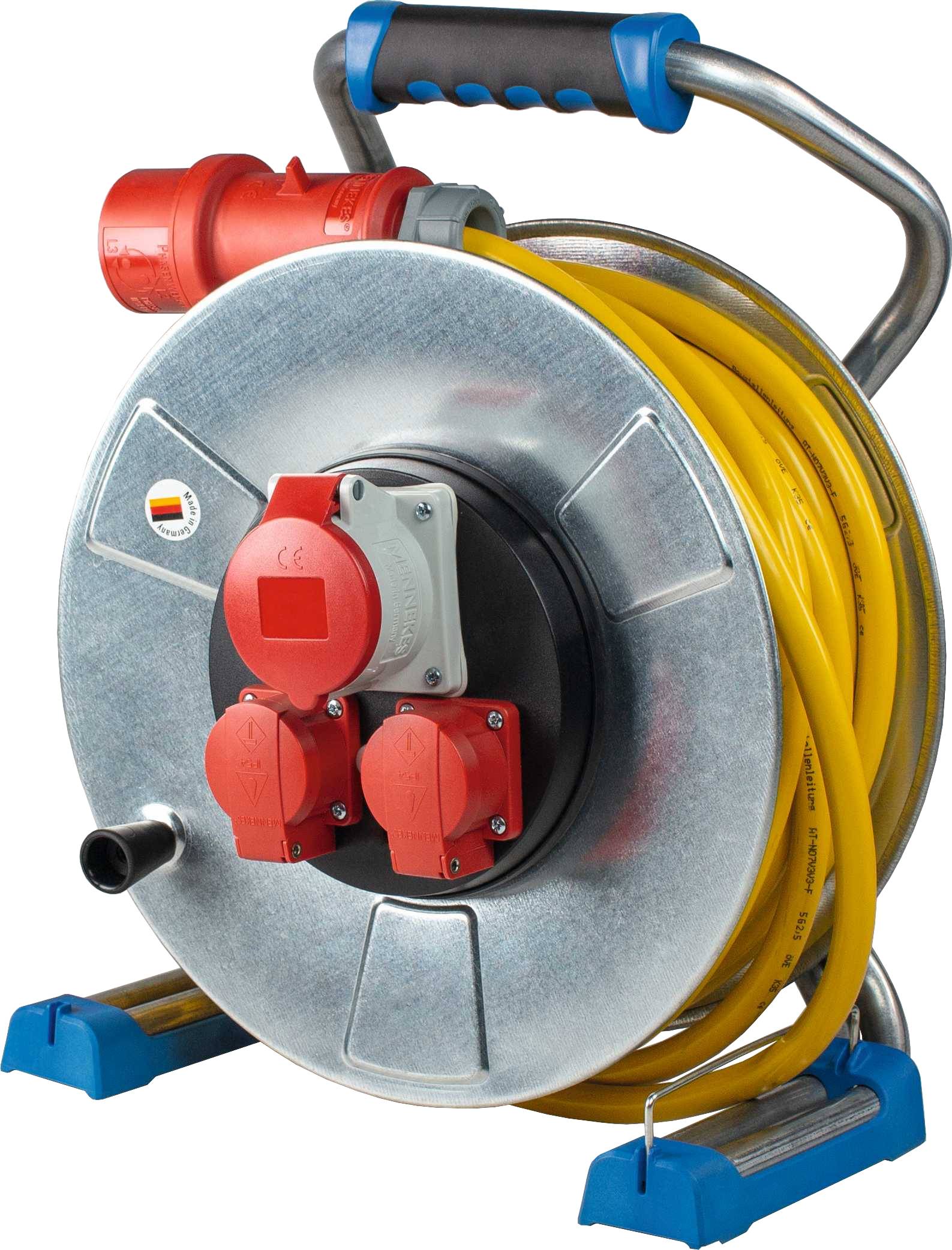

Metal cable drum IronCoat Xperts 25 m armoured cable yellow with CEE phase turning plug
- High mechanical load capacity
- Temperature-resistant drum housing
- Galvanized metal with additional protective insulation
- Stable and shock-absorbing X-double pipe frame
- Ergonomically designed, non-slip 2-component handle
- Weatherproof cable resistant to oil and acid
Technical specifications
- Product type
Cable reel
- Cable length
25 m
- Type A
CEE phase inverter plug (5-pin, 16 A)
- Connector version
straight
- Type B
PG socket
CEE connector (5-pin, 16 A)
- Outlets
3
- Cable colour
Yellow
- Cable standard
N07V3V3-F 5G 2,5 mm²
- Used at
Outdoors
Indoors
- Material
PVC
- Cable features
Heat-resistant
Cold-resistant
UV-resistant
Acid-resistant
highly flexible
Oil- and abrasion-resistant
- Factory colour
Silver
- Nominal input voltage
400 V
- Nominal current (details)
16 A
- Power rating
400V, 16A, approx. 11 kW
- Load capacity (wound/unwound)
3x 1000W / 3x 3500 W
- Reel diameter
32 cm
- Weight
11.95 kg
IP44
- Standards
EN 61242
DIN VDE 0620-1
OIL E8241-55
IEC 60309
- Outputs
2 screw contact sockets
1 CEE-coupling 16 A 5polig
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2249550 AS Schwabe 23992 Cable reel 25 m Yellow CEE phase inverter plug (5-pin, 16 A)
Description
The IronCoat Xperts metal cable drum with 25m cable length of as - Schwabe convinces through its quality and safety in all areas. It scores through its drum body made of high-break special plastic with stable X-double pipe frame, the ergonomically shaped, skid-proof 2-component grip and the patented cable routing. The IP44 cable reel has a thermal protection switch. The highly flexible, abrasion-resistant cable is resistant to acid, oil and embrittlement and is therefore 100% weather-proof. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings.
This text is machine translated.
This text is machine translated.
Features
- Hot-dip galvanized metal drum
- Shock-absorbing X-double pipe frame
- ergonomic, non-slip handle
- 25M ARMOURED CABLE K35 AT-N07 V3V3-F 5G2.5
- can be used from -35 to +70°C.
- Oil and UV-resistant and also extremely resistant to abrasion
- Overheating protection
- CEE-Phase turning plug 400V, 16A, 5-pin
- 2 earthing contact socket outlets 230V with safety hinged lids
- CEE-socket 400V
Hints
Not permitted on construction sites in Germany!
